Quick Details
-
Brand Name:
-
HB
-
Use:
-
FTTH
-
Warranty Time:
-
1 YEAR
-
Product Name::
-

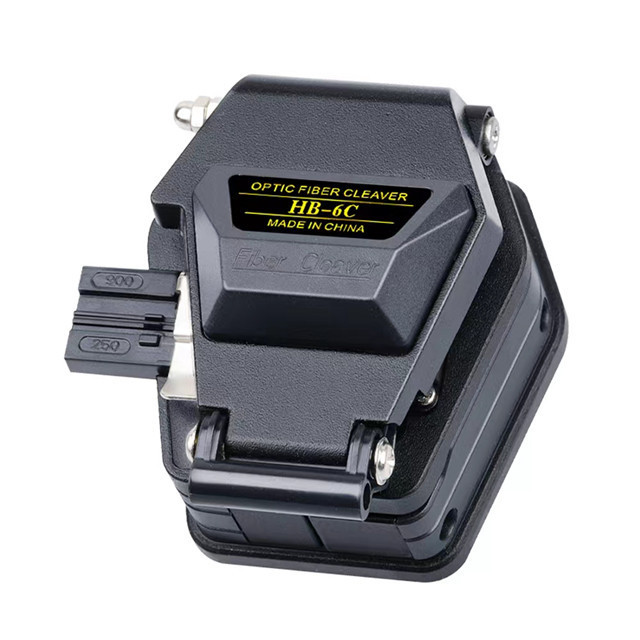

Fiber Cleaver
-
Splitter Type::
-
Testers &Tools
-
Application::
-
FTTH FTTB FTTX Network
-
Color::
-
Black
-
Model::
-
HB-6C
-
Weight::
-
0.27kg
-
Cutting Angle::
-
<0.5°
-
Warranty::
-
1 Years
-
water proof::
-
yes
-
Certification:
-
RoHS
Quick Details
-
Type:
-
Fiber cutting Tool
-
Model Number:
-
HB-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HB
-
Use:
-
FTTH
-
Warranty Time:
-
1 YEAR
-
Product Name::
-
Fiber Cleaver
-
Splitter Type::
-
Testers &Tools
-
Application::
-
FTTH FTTB FTTX Network
-
Color::
-
Black
-
Model::
-
HB-6C
-
Weight::
-
0.27kg
-
Cutting Angle::
-
<0.5°
-
Warranty::
-
1 Years
-
water proof::
-
yes
-
Certification:
-
RoHS
Product Description
Specification
Model: HB-08
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating),10 - 16mm (Single Fiber - 0.9mm Coating),Single Core (φ0.25 & 0.9mm) –
12-core Ribbon Fiber – 2.5 Covered Wire
Blade Life Time: 48,000 cleaves
Cutting Length for Optical Fiber: 18mm
Cleaver Dimensions: 60(W) x 57(D) x 46(H) mm
Weight: 266g
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating),10 - 16mm (Single Fiber - 0.9mm Coating),Single Core (φ0.25 & 0.9mm) –
12-core Ribbon Fiber – 2.5 Covered Wire
Blade Life Time: 48,000 cleaves
Cutting Length for Optical Fiber: 18mm
Cleaver Dimensions: 60(W) x 57(D) x 46(H) mm
Weight: 266g
Features
- Provides approximately 48,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade
Hot goods
Packing & Delivery
Packaging
Provide good original packaging
According to customer requirements.
Transport
7-9 business days after payment is received.
Delivery: Air Transport (DHL / UPS / TNT / Fedex / EMS / China Post)
Shipping costs depend on weight and size.
According to customer requirements.
Transport
7-9 business days after payment is received.
Delivery: Air Transport (DHL / UPS / TNT / Fedex / EMS / China Post)
Shipping costs depend on weight and size.
