Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
dia32*203mm
-
Weight:
-
0.1kg
-
Working Temperature Range:
-
0 - 800
-
Certification:
-
CE
-
Product name:
-

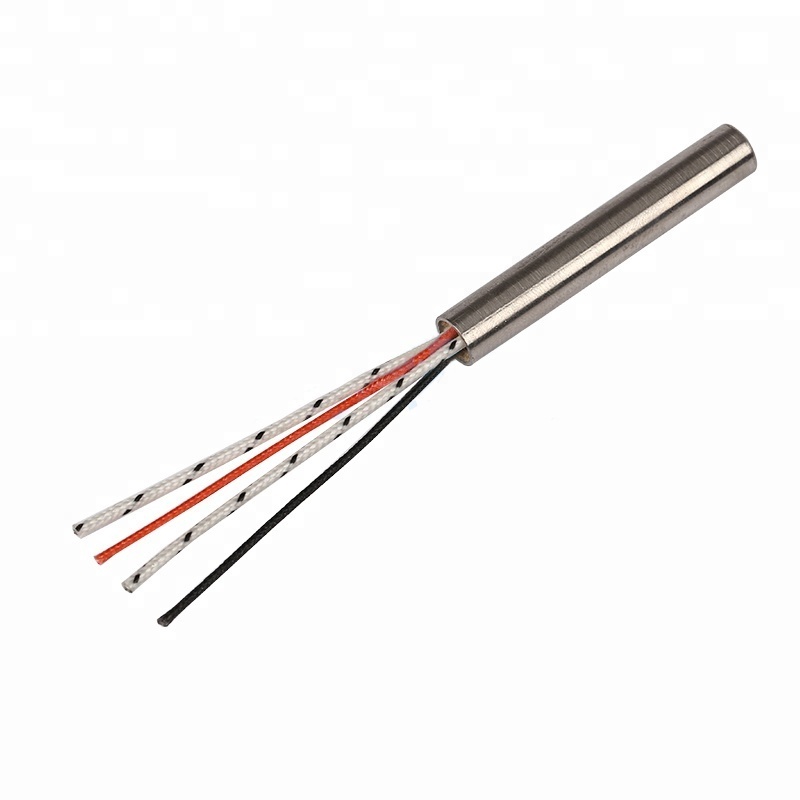

220v Electric Cartridge Heater With Thermocouple
-
Quality:
-
CE RoHS
-
Electric Heating Rod Power:
-
50W-4000W
-
Application:
-
Heating elements for plastic injection moulds, dies etc.
-
Sheath Material:
-
Stainless steel 304, other can also be customized
-
Heating Rod Length:
-
customized
-
Insulation resistance (cold):
-
≥ 500 MΩ
-
Standard Cold Zone:
-
5-10mm
-
Max operating temp:
-
650
-
Resistance tolerance:
-
+10%, -5%
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
dia32*203mm
-
Weight:
-
0.1kg
-
Working Temperature Range:
-
0 - 800
-
Certification:
-
CE
-
Product name:
-
220v Electric Cartridge Heater With Thermocouple
-
Quality:
-
CE RoHS
-
Electric Heating Rod Power:
-
50W-4000W
-
Application:
-
Heating elements for plastic injection moulds, dies etc.
-
Sheath Material:
-
Stainless steel 304, other can also be customized
-
Heating Rod Length:
-
customized
-
Insulation resistance (cold):
-
≥ 500 MΩ
-
Standard Cold Zone:
-
5-10mm
-
Max operating temp:
-
650
-
Resistance tolerance:
-
+10%, -5%
Product Description
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
|
Name
|
220v Electric Cartridge Heater With Thermocouple
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
Max operating temp
|
870ºC(1600F)
|
|
Length tolerance
|
± 2% or 3.2mm (1/8”), whichever is greater.
|
|
Camber tolerance
|
1.7mm per meter (0.020” per foot).
|
|
Diameter tolerance
|
Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
|
|
Standard Unheated Area
|
5-10mm;
|
|
Internal thermocouple
|
type J or K;
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater;
|
|
Insulation resistance (cold)
|
≥ 500 MΩ;
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA;
|
|
Diameter
|
from 3.0mm to 30mm;
|
Products Show
Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Related Products
Our Company
Factory
Office
Sales Team
Engineer Team
Heater Plant
Heater plant
Our Certifications
Packing & Delivery
Packing Details : bubble bags+cartons+wooden case
Delivery Details : 10-15days after order confirmed
10 pcs bag
Suitable carton
Wooden case
