- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TIMMY
-
Model Number:
-
TM-AI02
-
Item Name:
-
Biometric Face Recognition Access Control
-
Identification Mode:
-
Face&Pin, Card
-
Communication:
-
TCP/IP,USB type-A port,WIFI, WG26/34, RS-485,cloud
-
Language:
-
English, Spanish,Turkish.etc
-
Display:
-
4.3" Capacitive LCD touch screen
-
Face Capacity:
-
5000 (50000 optional)
-
Camera:
-
2MP HD Lens, 1MP Infrared Lens
-
Record capacity:
-
500000
-
CPU.NPU:
-
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)
-
Wiegand in&out::
-
Wiegand 26&34
Quick Details
-
Special Features:
-
Motion Detection, RESET, Alarm I/O, NIGHT VISION, Other, WDR
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TIMMY
-
Model Number:
-
TM-AI02
-
Item Name:
-
Biometric Face Recognition Access Control
-
Identification Mode:
-
Face&Pin, Card
-
Communication:
-
TCP/IP,USB type-A port,WIFI, WG26/34, RS-485,cloud
-
Language:
-
English, Spanish,Turkish.etc
-
Display:
-
4.3" Capacitive LCD touch screen
-
Face Capacity:
-
5000 (50000 optional)
-
Camera:
-
2MP HD Lens, 1MP Infrared Lens
-
Record capacity:
-
500000
-
CPU.NPU:
-
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)
-
Wiegand in&out::
-
Wiegand 26&34
Related Products
Company Introduction
Shenzhen Union Timmy Technology Co,.Ltd. is one of the leading professional Manufacturer engaged in the R&D and production of Bio-metric time attendance and access control system in China since its foundation in 2000, and Dedicated to the manufacturing and selling of Fingerprint& Face Recognition Time Attendance and access control over the past 20 years.
Our factory covers an area of 2,500 Square meters with around 100 Employees, So far we have obtained the verified vertificates, like ISO9001, CE, FCC, ROHS, etc. and achieved China's highest manufacturing honor of "National High-tech Enterprise" in 2017 with more than 10 patents.
Exhibition
Specifications
|
Product name
|
Al Dynamic Face Recognition Time Attendance Access Control Terminal
|
|
Screen
|
4.3 Inch, HD 272*480, Capacitive Touch Screen
|
|
Keypad
|
Touch keypad
|
|
Operation system
|
LINUX 3.10
|
|
CPU,NPU
|
1.2G Dual-Core ARM Cortex-A7. 6006 (0.6T)
|
|
RAM
|
256MB DDR3
|
|
ROM
|
eMMC Flash 4GB
|
|
Binocular camera
|
200W Colorful WDR+200W Infrared live camera
|
|
Logs capacity
|
500000
|
|
Face Registration
|
Local operation: Enroll face with machine, import user photo with U disk
|
|
|
Sotware operation: Import user photo to software, capture user photo with camera
|
|
Verification
|
Dynamic face recognition, password, ID/IC card optional,QR Code
|
|
Face capacity
|
5000 (50000 optinal)
|
|
Card Capacity
|
5000 (50000 optional), ID Card Standard, IC Card Optional
|
|
Password Capacity
|
5000 (50000 optional)
|
|
Face Recognition Accuracy
|
99.70%
|
|
Recognition Speed
|
s0.2s, support single user/multi user(at most 5 users) recognition atl same time
|
|
Recognition Distance
|
0.5~2.5 meters (0.5-1.5 meters with live face recognition on)
|
|
Prevent Photo
|
Dual camera anti-counterfeiting prevent recognition with photo/video
|
|
Principle of ldentification
|
Face algorithm technology of multi-task cascaded convolutional neural network based on
|
|
|
video stream for dynamic face detection, tracking and recognition
|
|
WDR
|
Wide dynamic range, support accurate face recognition under Strong light, derk light and backlight
|
|
USB
|
USB2.0x1, Support U disk import/export data
|
|
Power supply
|
DC12V interface* 1
|
|
Speaker Interface
|
Reserved for extended Speaker Interface
|
|
Network Communication
|
TCPIP, Support C/S LAN communication, Wifi (optional)
|
|
Free Attendance software
|
Support exporing excel atendance report with U disk
|
|
Shift
|
Support shift stting and importing shift schedule with U disk
|
|
Management Software
|
Support PC sofware to manage data through network connection with equipment
|
|
|
|
|
Access Control Function
|
Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals,one set of alarm
signals, time permission control, connect external access control reader, Wiegand 26/34 output |
|
Environmental adaptability
|
Working temperature: -15°C ~+45C (storage temperature -40°C~+65°C)，
Working humidity: 20%~90% (storage humidity 20%~90+2%)， Dark enviroment: LED Soft light automatic fl light (Automatic control according to ambient light) Ambient light adaptation range: 0-50000Lux |
|
Multi language
|
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italin, Japanese, Korean, etc
|
|
Broadcase and ring
|
Support display name, voice broadcase name, builtin bell ring
|
|
Automatic fll light
|
Support infrared fill light, the white fl light automatically lights up when face is captured in dark light
|
|
Working Current
|
stand-by current: 310mA , Working current: 520mA
|
|
QR Code Scanner
|
Support
|
|
Working Voltage
|
DC12V
|
|
Installation Way
|
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
|
|
Device Dimension
|
184x1 13x20mm
|
|
Color box dimension
|
257x171x90mm
|
|
Carton dimension
|
Size: 480x438x229mm, 12Kg/carton, 10units/carton
|
Product Description

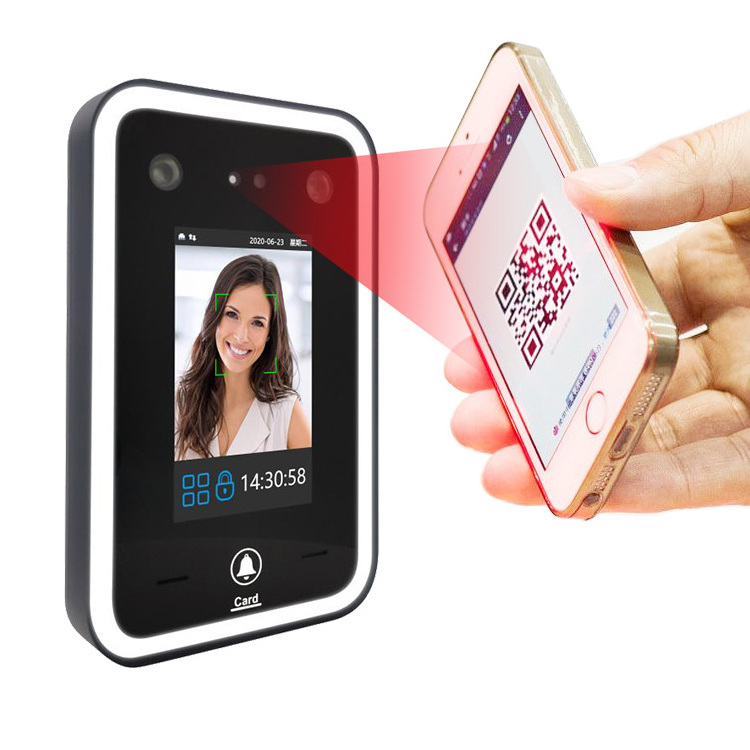

Plastic QR Code RFID Facial Scanner For Time Recording Biometric Face Recognition Door Access Control Card Reader
Installation Example
Packing&Shipping
TIMMY Brand Package or Neutral Colorful package for unit packing. * 520*330*548mm Outer Carton for 16pcs unit package, Gross Weight 16.3 Kg
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-15 days for order less than 5000 pcs.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.
Q: 6. How is your after-selling service?
A: Our hardware and production department are located in China, and Our software technical team is in india, Nomatter it is hardware or software part, we have professional service department to be your sales shield when you cooperate with us.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-15 days for order less than 5000 pcs.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.
Q: 6. How is your after-selling service?
A: Our hardware and production department are located in China, and Our software technical team is in india, Nomatter it is hardware or software part, we have professional service department to be your sales shield when you cooperate with us.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
