Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
Drainage Cell
-
Type:
-
Drainage system
-
Product name:
-
Drainage board
-
Width:
-
500mm
-
Length:
-
500mm
-
Height:
-
30mm
-
Color:
-
Black, White
-
Material:
-
PP
-
Feature:
-
Waterproof storage drainage isolation
-
Keyword:
-
drainage mat for terrace
-
Certifications:
-
ISO9001/ISO14001
-
Function:
-
drainage
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
Drainage Cell
-
Type:
-
Drainage system
-
Product name:
-
Drainage board
-
Width:
-
500mm
-
Length:
-
500mm
-
Height:
-
30mm
-
Color:
-
Black, White
-
Material:
-
PP
-
Feature:
-
Waterproof storage drainage isolation
-
Keyword:
-
drainage mat for terrace
-
Certifications:
-
ISO9001/ISO14001
-
Function:
-
drainage

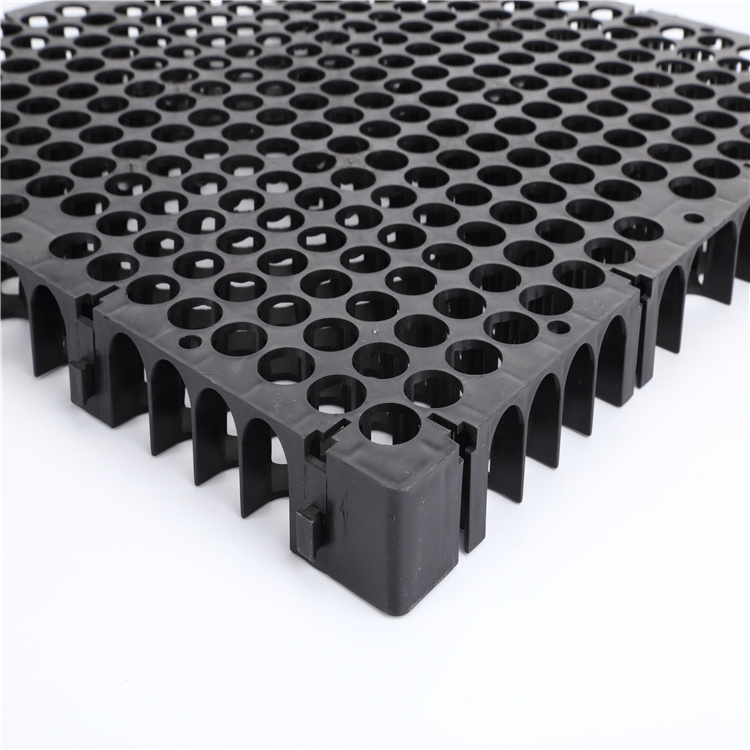

30mm landscape water drain board for garden dimple drainage cell sheet
Click "Chat now" / "Send inquiry" to contact supplier
Drainage cell is the lightweight three dimensional geocomposite with flat back which is pressed against an underground structure used for subsurface water management method.
Drainage cell is lightweight, easy to use and cost effective when compared to traditional drainage methods, and it is the most advanced and versatile geo-composite product suitable for all your horizontal and vertical drainage applications such as roof garden drainage, landscape, terraces and patios under pavers, subterranean building protection, etc.
| Item | Unit | BDrain-C40 | BDrain-C50 |
| Size | mm | 400×400×30 | 500×500×30 |
| Raw Material | Virgin HDPE | Virgin HDPE | |
| Dimple Height | mm | 30 | 30 |
| Compressive strength ≥ | kPa | 150 | 140 |
| Longitudinal flow capacity | cm³/s/cm | 25 | 25 |
| Storage capacity | l/m² | 3.0 | 3.0 |
| Surface Void Area | >67% | >67% | |
| Internal Void Area | >95% | >95% | |
| Biological/Chemical Resistance | Unaffected by moulds and algae and good resistance to oils, acids, alkalis and bitumen | ||
| Service Tempreture | -20℃ to 120℃ | -20 ℃ to 120℃ | |
Drainage Cell Feature:
|
|
|
|
Drainage Cell Application:
Jinruixiang drainage cell had been exported to over 36 countries. Our drainage cell is widely used such applications as roof gardens, podium landscaping, retaining walls, golf course, sports fields, bridge abutments, underground car parks, basements, under drains for slabs and foundations and subsurface drainage for permeable driveways, etc.
