Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUBOND
-
Dimension(L*W*H):
-
23.6*2.7*3m/23.6*2.9*3m
-
Weight:
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
high accuracy laminating machine
-
Feature:
-
corrugated paper laminating machine
-
Speed:
-
150m/min laminating machine
-
Max sheet:
-
1450*1450mm/1650*1450mm
-
Min sheet:
-
500*500mm
-
Top paper thickness:
-
150-500g
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Metal, Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUBOND
-
Dimension(L*W*H):
-
23.6*2.7*3m/23.6*2.9*3m
-
Weight:
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
high accuracy laminating machine
-
Feature:
-
corrugated paper laminating machine
-
Speed:
-
150m/min laminating machine
-
Max sheet:
-
1450*1450mm/1650*1450mm
-
Min sheet:
-
500*500mm
-
Top paper thickness:
-
150-500g
The highest level of the laminating technology, 12000sheets/h as the high speed. Equipped with the flip flop stacker machine to achieve the most efficient laminating machine collecting.
Features:
1, Auto collecting,front and back side stacking
2,Time and effort saving, easy to operate
3,Servo compensation positioning, automatic tracking system

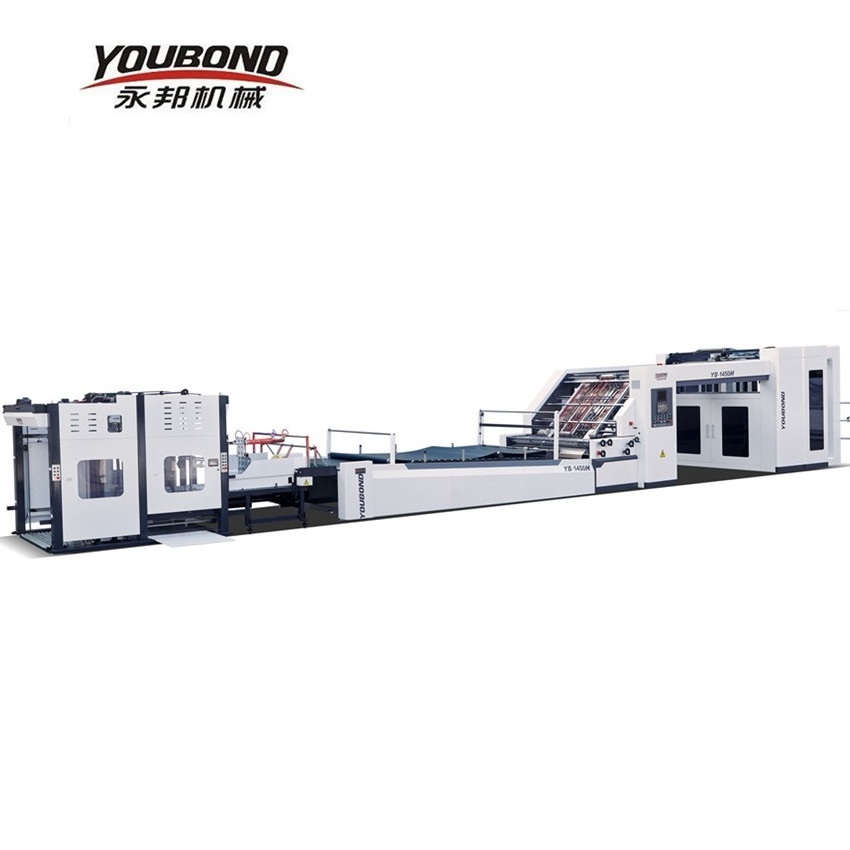

Specification of the YB-1450-1650HS high speed laminating machine and flip flop stacker
| MODEL | YB-1450HS | YB-1650HS |
| Max Sheet | 1450×1450mm(57''x*57'') | 1650×1450mm (64''x*64'') |
| Min Sheet | 420×400mm | 420 × 40 0mm |
| Top Paper Thickness | 150-500g | 150-500g |
| Botton Sheet Thickness |
A,B,C,E,F flute,4 ply corrugated paper(AA,AB,BB) cardboard above 300 GSM |
|
| Max Speed | 150m/min | 150m/min |
| Fitting Precision | ±1mm | ±1mm |
| Air consuption | 1.2m3/min | 1.2m3/min |
| Measurement | 23.6×2.7×3M | 23.6×2.9×3M |
| Machine Power | 30KW | 32KW |
Remarks: The top sheet could be the printed color sheet, filmed paper and uv varnished and paper from offset printing machine.
1.Top Feeder Part
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding
Side pulling balls(side lay) ensure the side alignment
Advantages: Whatever direction the top sheet goes, the side-pulling balls will make the sheet go in one line.
2.Bottom feeding and laminating part
Imported brand belt, good suction ability for the bottom sheet feeding.
Stainless steel material roller,never rust, guarentee the amount of glue is even
Servo motor that controll the top sheet Sheet mass detector
3.Electrical part
Famous brand electrical component ensure machine stability, high efficiency and low failure. Using man-machine display interface and PLC combination, display all the information, such as warning, error detect, failures,and operating speed, etc
4. Sheet pressing part
Slope type of the pressing convoyer, humanized design to save effort for the operator collecting the sheets.
Pressing wheels Collecting table
5. Paper Separating system
The laminated paper trasnferred and stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.
6. Turning System
Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.
5. Piling System
Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat
6. Collecting System
When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished
