Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Different
-
Weight:
-
1200 kg
-
PLC Brand:
-
Leizhan
-
Item:
-
D type hydro pulper
-
Package:
-
Standard wooden crage
-
Capacity(t/d):
-
30-450
-
Consistency(%):
-
3-5
-
Material:
-
Carbon Steel or stainless steel
-
Motor power(kw):
-
45-450
-
Transportation:
-
By Sea
-
Function:
-
Paper Pulp maker
-
Keyword:
-
Hydro pulper for paper recycling
-
Usage:
-
Paper Mill
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
Other
-
Max. workable width:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Different
-
Weight:
-
1200 kg
-
PLC Brand:
-
Leizhan
-
Item:
-
D type hydro pulper
-
Package:
-
Standard wooden crage
-
Capacity(t/d):
-
30-450
-
Consistency(%):
-
3-5
-
Material:
-
Carbon Steel or stainless steel
-
Motor power(kw):
-
45-450
-
Transportation:
-
By Sea
-
Function:
-
Paper Pulp maker
-
Keyword:
-
Hydro pulper for paper recycling
-
Usage:
-
Paper Mill

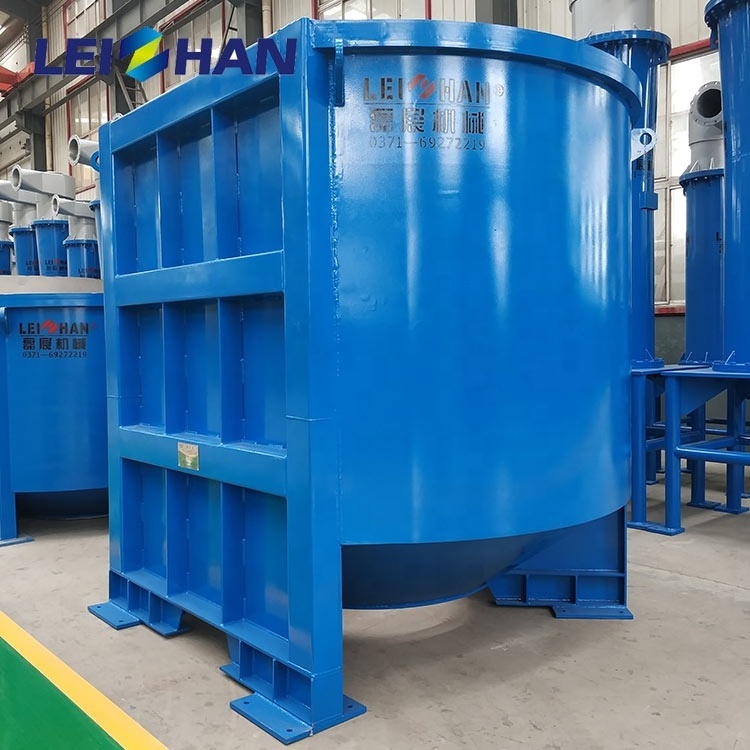

China Paper Mills Machine 30 Tpd D Type Hydro Pulper For Pulp Making
Hydrapulper brief introduction
Hydrapulper, which improves the work efficiency, and it can be used for pulping waste paper & wet strengh paper. D Type Hydrapulper is mainly used to crushing pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper’s fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity’s shape and strength.
Hydrapulper features
1. Pulper rotor off -center position, so that the waste paper could touch the rotor more quick, higher frequency.
2. The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet.
3. Pulper rotor and pulp tray is higher than pulper groove bottom plane, which can reduce the pulper rotor and impurities contact, so that prolong life-span, preventing the twisted rope winding on the rotor.
Hydrapulper specification
| Type |
ZDSD 23 |
ZDSD 24 |
ZDSD 25 |
ZDSD 26 |
ZDSD 27 |
ZDSD 28 |
ZDSD 29 |
ZDSD 30 |
ZDSD 31 |
| normal volume(m3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| consistency(%) | 3-5 | ||||||||
| production capacity(t/d) | 30-60 | 40-100 | 80-120 | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 350-400 |
| motor power(kw) | 75 | 110 | 160 | 185 | 220 | 280 | 315 | 355 | 400 |
Hydrapulper advantages
1.This machine can promptly crushing waste paper, with large capacity, low power consumption, and saving vapour medication. And it is easy to maintain, with long service life, low noise, and the vibration is not strong, in stable operation, also it can save energy.
2. The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet.
3. Pulper rotor and pulp tray is higher than pulper groove bottom plane, which can reduce the pulper rotor and impurities contact, so that prolong life-span, preventing the twisted rope winding on the rotor.
Working Site
Leizhan service
Pre-Sales Service
1. Proposing the most suitable scheme and equipment for our clients.
2. Designing and fabricating targeted products according to the special requirements of clients.
3. Training periodically high qualified service technician.
After-Sales Service
1. Assisting our clients for foundation construction of equipment.
2. Dispatching engineers to install and debug equipment.
3. Training the first-line operators on site.
4. Regularly visit clients to solve production problems.
FAQ
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for 40 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 40 years experience in the field of paper making industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.ISO9001:2000 and BV certification.Strict quality control of every procedure.
