Quick Details
-
Model Number:
-
JFS-5012
-
Thickness:
-
3mm
-
Size:
-
1520mm*1520mm*3mm
-
Color:
-
white
-
Usage:
-
Mechanical Sealing
-
Style:
-
Sealing Strip
-
Shape( for gasket):
-
Ring Gasket
-
Function:
-
Hole Sealing
-
Working Temperature:
-
-100~ 280C
-
eptfe Density:
-
0.7-0.85g/cm3
-
Pressure:
-
10MPa
-
Size thickness:
-
0.5 to 6mm
-
Size width:
-
1500mm
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiujiu
-
Model Number:
-
JFS-5012
-
Thickness:
-
3mm
-
Size:
-
1520mm*1520mm*3mm
-
Color:
-
white
-
Usage:
-
Mechanical Sealing
-
Style:
-
Sealing Strip
-
Shape( for gasket):
-
Ring Gasket
-
Function:
-
Hole Sealing
-
Working Temperature:
-
-100~ 280C
-
eptfe Density:
-
0.7-0.85g/cm3
-
Pressure:
-
10MPa
-
Size thickness:
-
0.5 to 6mm
-
Size width:
-
1500mm

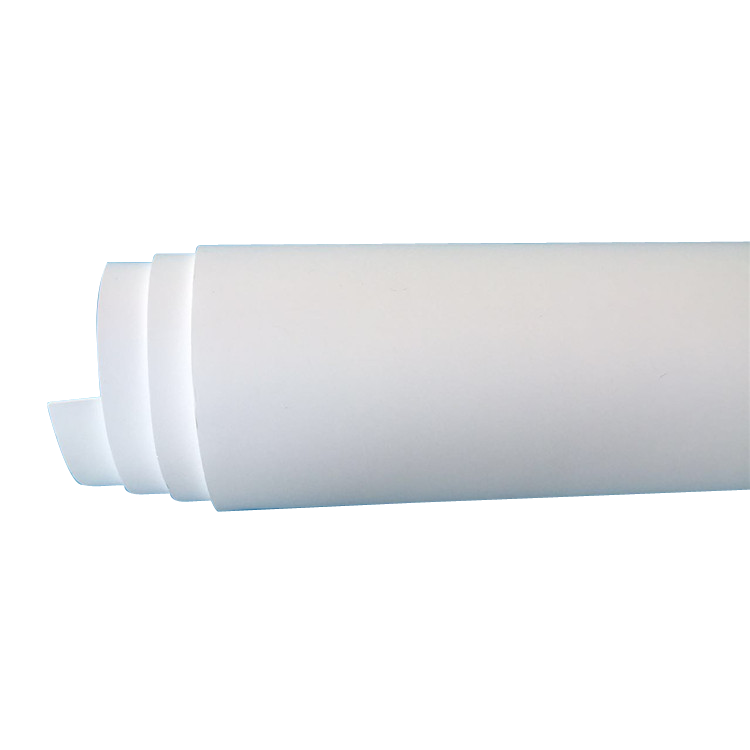

Expanded Ptfe Sheet Manufacturers
Expanded PTFE gasket sheet is made of 100% expanded P.T.F.E. by using special process that produces a uniform and highly fibrillated microstructure with a great lot of fibers running in multidirection. These create a soft and pliable, yet very tough gasket that has excellent resistance of pressing, creep relaxation and cold flow.
ePtfe Sheet Manufacturers
- full chemical resistance like solid sintered PTFE
- resistance against acids and bases of pH 0 to 14
- no aging, unlimited shelf life
- nontoxic, biologically inert
- non flammable
|
NO.
|
SIZE (W*L*T)
|
Thickness Tolerance (mm)
|
|
1
|
1500*1500*0.5
|
±0.10
|
|
2
|
1500*1500*1
|
±0.15
|
|
3
|
1500*1500*2
|
±0.2
|
|
4
|
1500*1500*3
|
±0.2
|
|
5
|
1500*1500*4
|
±0.3
|
|
6
|
1500*1500*5
|
±0.3
|
|
7
|
1500*1500*6
|
±0.3
|
Expanded PTFE sheet possesses universal resistance against common chemicals, except melted alkali metal, fluorine at liquid and gas states. It can be stored without any time limits and can seal uneven and damaged flanges
Zhenjiang Jiujiu PTFE & Plastic Material Co., Ltd.was established in 2008, specializing in the production and research expanded PTFE products and isotropic expansion development, mainly expanded PTFE joint sealant, expanded PTFE sheet, ,expanded PTFE Valve Stem Packing, expanded PTFE Spiral Wound Gasket Filler material , eptfe seals and gaskets, various packing and so on.
Our products use superior quality raw materials and advanced production technology, which have reliable quality, complete specifications, can meet the different requirements of customers in different industries applications.now we export to the EU, Korea, Japan, the United States, Southeast Asia and the Middle East.
We welcome you to visit our factory, expand market and achieve win-win situation.
