Quick Details
-
Warranty:
-
12 moths
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSS-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540*2.0mm
-

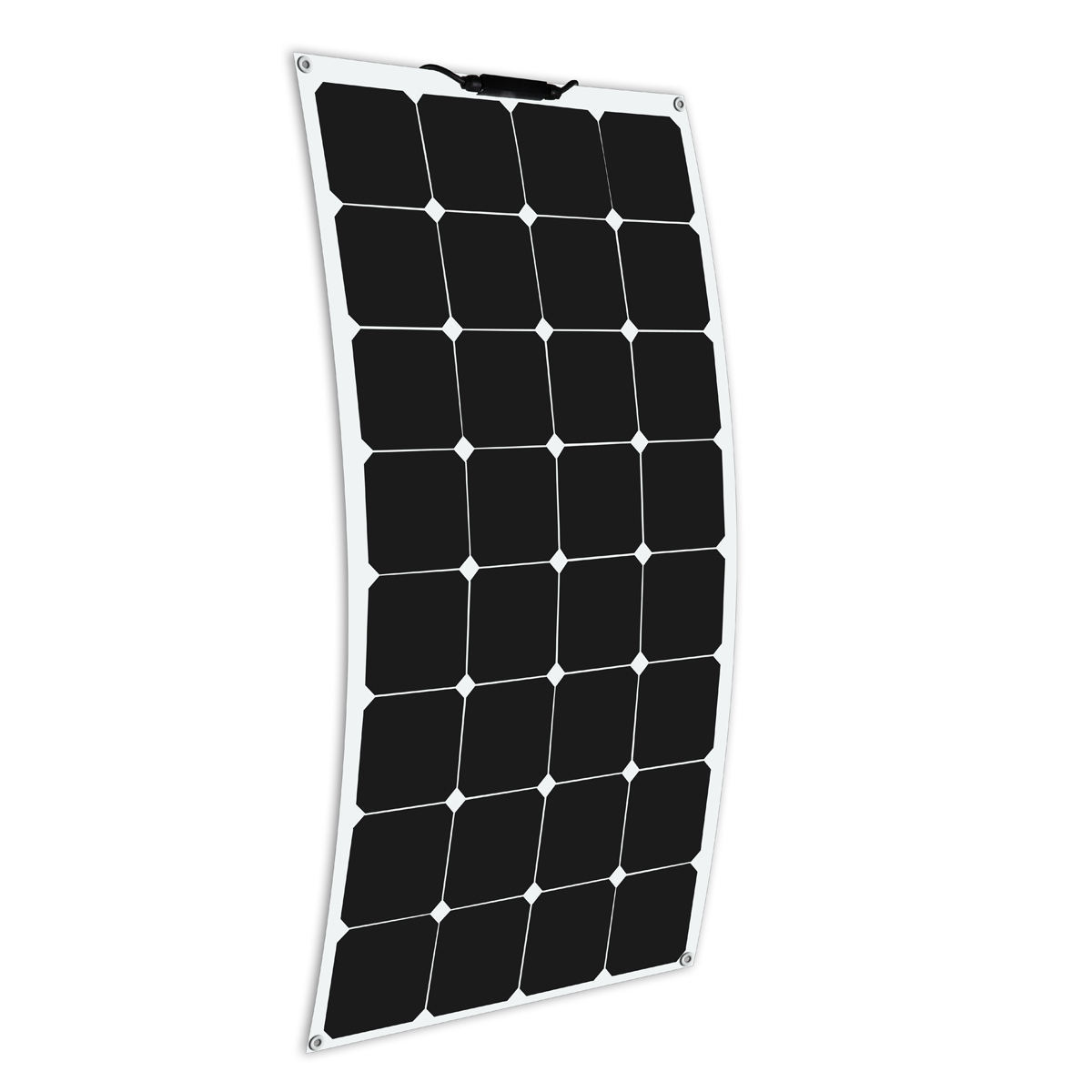

Product name:
-
100W flexible solar panel
-
Power Tolerance:
-
3%
-
Max Power:
-
100W
-
Voltage:
-
18V
-
Current:
-
5.68A
-
Customized:
-
Available
-
Application:
-
for RV Boats Trailer Cain Tent Car Uneven Surfaces Roofs
-
Certificate:
-
CE,ROHS,ISO
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
Flexible
-
Panel Efficiency:
-
>22.5%
-
Warranty:
-
12 moths
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSS-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540*2.0mm
-
Product name:
-
100W flexible solar panel
-
Power Tolerance:
-
3%
-
Max Power:
-
100W
-
Voltage:
-
18V
-
Current:
-
5.68A
-
Customized:
-
Available
-
Application:
-
for RV Boats Trailer Cain Tent Car Uneven Surfaces Roofs
-
Certificate:
-
CE,ROHS,ISO
|
Specifications – Flexible series |
|
||
|
Item No. |
GSS-100W |
GSS-150W |
GSS-200W |
|
Max power |
100W |
150W |
200W |
|
Power tolerance |
±3% |
±3% |
±3% |
|
Cells brand |
|||
|
Cells efficiency(%) |
22.50% |
22.50% |
22.50% |
|
Max voltage |
18V |
18V |
18V |
|
Max current |
5.56A |
8.34A |
11.2A |
|
Open circuit voltage(Voc) |
21.6V |
21.6V |
21.6V |
|
Short-circuit current(Isc) |
6.45A |
9.66A |
12.89A |
|
Dimension |
1050*540*2.0mm |
1080x780x2.0mm |
1515*675*2mm |
|
Weight |
1.95KGS |
2.95KGS |
3.95KGS |
|
Operating Temperature( ℃ ): |
-40 ℃ ~+85 ℃ |
||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
||
|
Current temperature coefficient |
+0.05%/ ℃ |
||
|
Nominal Operating Cell Temperature |
45 ± 2 ℃ |
||
|
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25 ℃ |
|||
