Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ying Da
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
unknow
-
Weight (KG):
-
3000 kg
-
Type:
-
Mobile belt conveyor
-
Width of belt conveyor:
-
650mm
-
Material of belt:
-
Rubber, twine etc.
-
Speed of belt:
-
Adjust speed based on your need
-
Max conveying height:
-
6.52m
-
Conveying capacity:
-
20~30t/h
-
Length of machine:
-
3~20m
-
Service:
-
Provide drawing and installation guide
-
Color:
-
As required
-
Feature:
-
Movable, height adjustable
-
Certification:
-
ISO 9001 2008
Quick Details
-
Power:
-
2.2~7.5kw
-
Warranty:
-
2 years
-
Width or Diameter:
-
400-1400mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ying Da
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
unknow
-
Weight (KG):
-
3000 kg
-
Type:
-
Mobile belt conveyor
-
Width of belt conveyor:
-
650mm
-
Material of belt:
-
Rubber, twine etc.
-
Speed of belt:
-
Adjust speed based on your need
-
Max conveying height:
-
6.52m
-
Conveying capacity:
-
20~30t/h
-
Length of machine:
-
3~20m
-
Service:
-
Provide drawing and installation guide
-
Color:
-
As required
-
Feature:
-
Movable, height adjustable
-
Certification:
-
ISO 9001 2008
Lowest price mobile earth conveyor belt with hopper

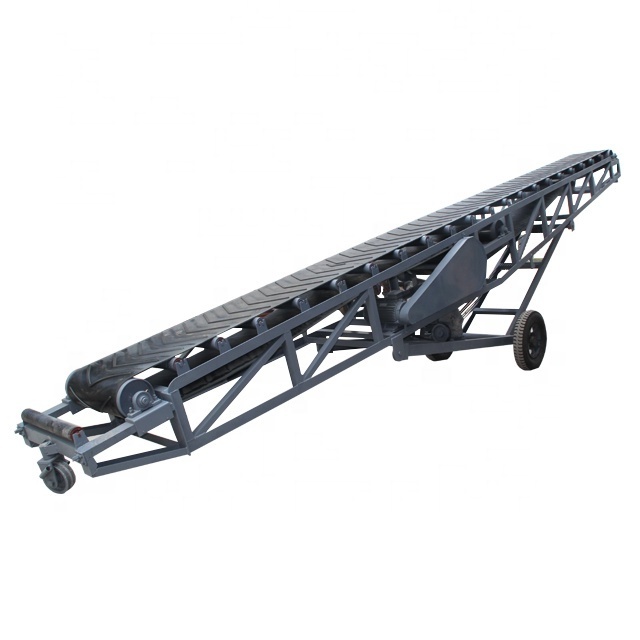

Mobile Belt Conveyor
Description
The mobile belt conveyor is a kind of wide application conveying equipment. Mobile belt conveyor is widely used in light industry, electronics, food, chemical, wood, machinery, grain and other industries.
Mobile belt conveyor with hopper can be divided into horizontal belt conveyors and inclined belt conveyor.
Main Application
Bulk material: cement, sand, gravel, grain, fertilizer, sugar, salt, cookies etc.
Other material: cartons, bags, machine parts etc.
Feature
1. Simple structure, convenient and reliable operation, high efficiency, low noise etc.
2. Allowed to tilt conveying, max slant angle is 25 degree.
3. Material of belt: Rubber, PVC, PU, NN etc.
4. You can choose adjustable speed motor, adjust speed acc to your need.
5. Acc to client’s requirements, the inclined belt conveyor can be designed adjust height.
Technical parameters
|
Item |
DY400 |
DY500 |
DY650 |
DY800 |
DY1000 |
|
|
Length of machine(m) |
3~20 |
|||||
|
Belt width(m) |
400 |
500 |
650 |
800 |
1000 |
|
|
Belt speed(m) |
0.4~1.25 |
|||||
|
Conveying height |
6.52 |
|||||
|
Conveying capacity |
(m 3 /h) |
60 |
120 |
220 |
500 |
1000 |
|
(t/h) |
40 |
80 |
150 |
200 |
300 |
|
|
dip angle(°) |
0°~18° |
|||||
|
Electric roller |
Model |
DY |
DY |
DY |
DY |
DY |
|
Power(kw) |
2.2 |
2.2 |
3.0 |
4.0 |
7.5 |
|
Different type for your reference
How to choose the belt conveyor with hopper suit for you?
1. What’s materials you need conveying?
2. How is the capacity? 5 t/h, 10 t/h, 20 t/h etc.
3. How long conveying distance? 5 m, 10 m, 15m etc.
4. How is the angle? 10°, 15°, 25°.
Tell me those datas, our engineer will choose most suitable belt conveyor with hopper for you.
