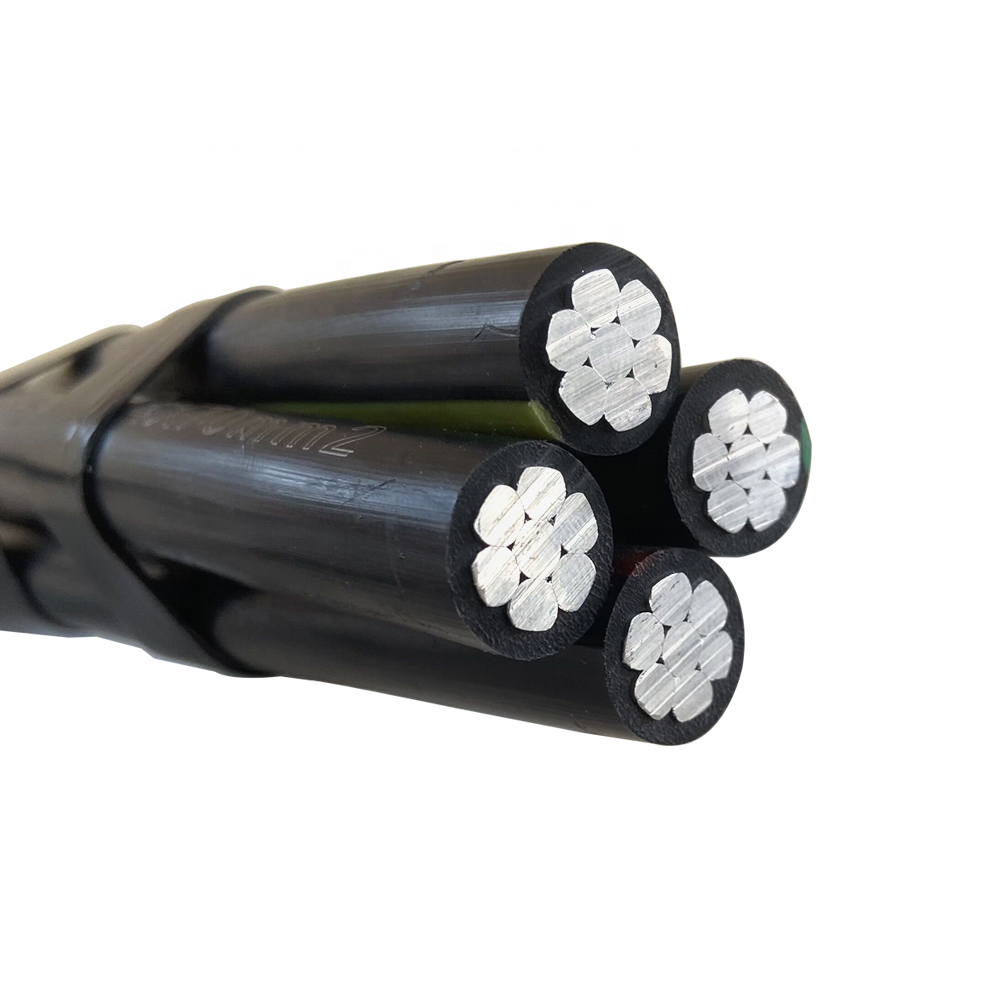

4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire
4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire

4 core 16mm, 25mm, 35mm abc cable supplier 0.6/1KV overhead aluminum wire

FOB Reference Price: Get Latest Price
≥100 Meters
US $1.8
≥1000 Meters
US $0.12
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
XLPE or PE or PVC
Place of Origin:
Henan, China
Brand Name:
Aoguli
Model Number:
OEM, ABC Cable
Product name:
L V ABC Cable
Conductor:
Stranded Aluminum Conductor
Color:
Black or as required
SIze:
1.5mm2 - 120mm2
Certificate:
ISO
Rated voltage:
600/1000V
Material:
XLPE or PE or PVC + Aluminum

Quick Details

Insulation Material:
XLPE or PE or PVC
Application:
Overhead
Conductor Material:
Aluminum (AAC), AAAC
Jacket:
XLPE or PE or PVC
Place of Origin:
Henan, China
Brand Name:
Aoguli
Model Number:
OEM, ABC Cable
Product name:
L V ABC Cable
Conductor:
Stranded Aluminum Conductor
Color:
Black or as required
SIze:
1.5mm2 - 120mm2
Certificate:
ISO
Rated voltage:
600/1000V
Material:
XLPE or PE or PVC + Aluminum
ABC cables primarily used for 120 volt overhead service applications such as street lighting.outdoor lighting.and temporary service for construction. To be used at voltage of 600 volts phase- to -phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90'C for crosslinked polyethylene(XLPE) insulated conductors.
Duplex Service Drop Wire.
Duplex aluminium overhead cables have two conductors: one for electrodes, and the other one as a messenger (neutral conductor). This electrical wire, also called duplex overhead aluminum wire, is designed and manufactured for use in 120 V power distribution facilities. It is aerially installed with a maximum operational temperature rating of 75°C.

Conductors:
Duplex aluminium overhead cables have a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Duplex overhead aluminum wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Cables with duplex overhead service drop conductors have a black cross linked polyethylene ( XLP) insulation.

Duplex Service Drop Wire specifications:

Triplex Service Drop Wire.
Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex
cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather
head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this
electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black
cross-linked polyethylene for protection. Conductors:
Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Triplex Service Drop Wire specifications:

Quadruplex Service Drop Wire.
The electrical cable known as aluminum quadruplex overhead service drop cable supplies three-phase power and is also referred to as the three-phase cable. The quadruplex overhead wire is designed for service at 600 V or lower (phase to phase), at a maximum conductor temperature of 75°C.

Conductors:
Aluminum quadruplex overhead service drop cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Quadruplex overhead wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Quadruplex overhead service entrance cable has a black cross-linked polyethylene (XLP) insulation.

Quadruplex Service Drop Wire specifications:
