Quick Details
-
Brand Name:
-
Kayson
-
Model Number:
-
thermocouple
-
Material:
-
platinum rhodium
-
Type:
-
platinum rhodium thermocouple
-
Product name:
-
platinum rhodium temperature sensor b r s type thermocouple
-
Wire diameter:
-
1.5mm 2.0mm 2.5mm 3.0mm or customized
-
Protecting tube material:
-
stainless steel & corundum tube&ceramic tube
-
Protecting tube diameter:
-
customized
-
Protecting tube length:
-
customized
-
Tube material:
-
99% ceramic tube
-
wire material:
-
platinum rhodium
-
Tube diameter:
-
8/10/16/22/25mm or customized
-
Accuracy:
-
±1.5C
Quick Details
-
Warranty:
-
1 YEAR
-
Theory:
-
Temperature Sensor
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kayson
-
Model Number:
-
thermocouple
-
Material:
-
platinum rhodium
-
Type:
-
platinum rhodium thermocouple
-
Product name:
-
platinum rhodium temperature sensor b r s type thermocouple
-
Wire diameter:
-
1.5mm 2.0mm 2.5mm 3.0mm or customized
-
Protecting tube material:
-
stainless steel & corundum tube&ceramic tube
-
Protecting tube diameter:
-
customized
-
Protecting tube length:
-
customized
-
Tube material:
-
99% ceramic tube
-
wire material:
-
platinum rhodium
-
Tube diameter:
-
8/10/16/22/25mm or customized
-
Accuracy:
-
±1.5C

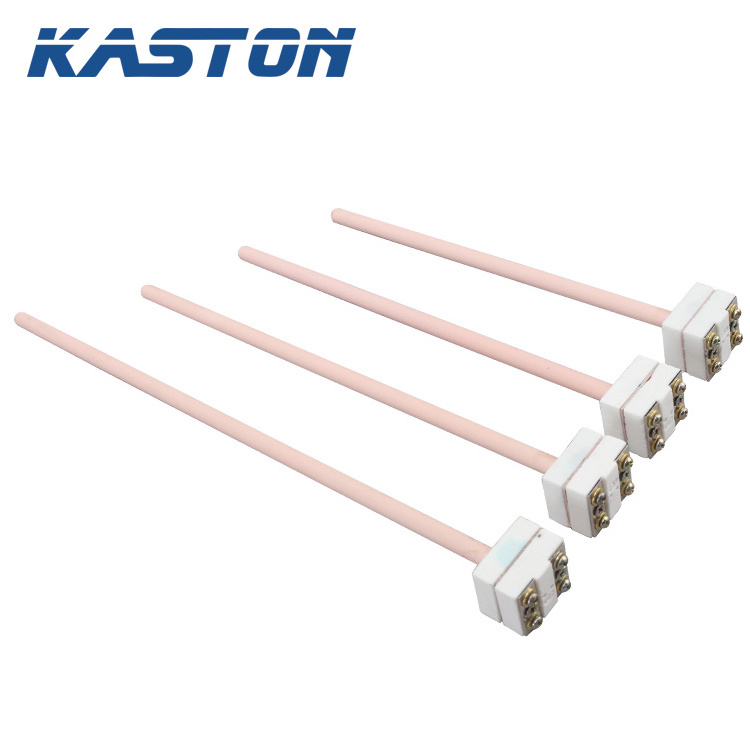

1700 degree c platinum rhodium temperature sensor b r s type thermocouple
Type S thermocouples are constructed using one wire of 90% Platinum and 10% Rhodium (the positive or
"+" wire) and a second wire of 100% platinum (the negative or "-" wire). Like type R, type S thermocouple
are used up to 1600 °C.
Type B thermocouples use a platinum–rhodium alloy for each conductor. One conductor contains 30%
rhodium while the other conductor contains 6% rhodium. These thermocouples are suited for use at up
to 1800 °C. Type B thermocouples produce the same output at 0 °C and 42 °C, limiting their use below
about 50 °C.
| Size | type | temperature | Accuracy | Length |
| WRR | B | 0~1800 | ±1.5℃ | 70 |
| WRP | S | 0~1600 | ±1.5℃ | 85 |
| WRQ | R | 0~1600 | ±1.5℃ | 90 |
| wire diameter | 0.15mm or customized | 95 | ||
| tube diameter | 8mm or customzied | 120 | ||
Product Advantage
1:High temperature resistant ceramic base ,Micro Welding Technology
2: imported chip ,99% corundum tube
3:Temperature resistance 0-1800 ℃
4: the installation method can be customized
5:degrees fast response speed the installation
6. High accuracy,High quality temperature measuring wire
