Quick Details
-
Table Travel (Y) (mm):
-
300 mm
-
Range of Spindle Speed(r.p.m):
-
50 - 8000 r.p.m
-
Max. Table Load(kg):
-
400 kg
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
CNC Machining Center VMC500
-
Machine Type:
-
CNC Vertical Machining Center
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK GUNT
-
Tool Changer:
-
Funnel Type/Arm type
-
Spindle:
-
Taiwan 8000 RMP Spindle
-
Lubrication:
-
Auto lubrication
-
Color:
-
Custom-made
-
Application:
-
Metal Machining/Training
-
Guideways:
-
Taiwan linear guideways
-
X/Y/Z axis travel:
-
500x300x400mm
-
Certification:
-
CE SGS
Quick Details
-
Table Size (mm):
-
800x260mm
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
300 mm
-
Range of Spindle Speed(r.p.m):
-
50 - 8000 r.p.m
-
Max. Table Load(kg):
-
400 kg
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
CNC Machining Center VMC500
-
Machine Type:
-
CNC Vertical Machining Center
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK GUNT
-
Tool Changer:
-
Funnel Type/Arm type
-
Spindle:
-
Taiwan 8000 RMP Spindle
-
Lubrication:
-
Auto lubrication
-
Color:
-
Custom-made
-
Application:
-
Metal Machining/Training
-
Guideways:
-
Taiwan linear guideways
-
X/Y/Z axis travel:
-
500x300x400mm
-
Certification:
-
CE SGS

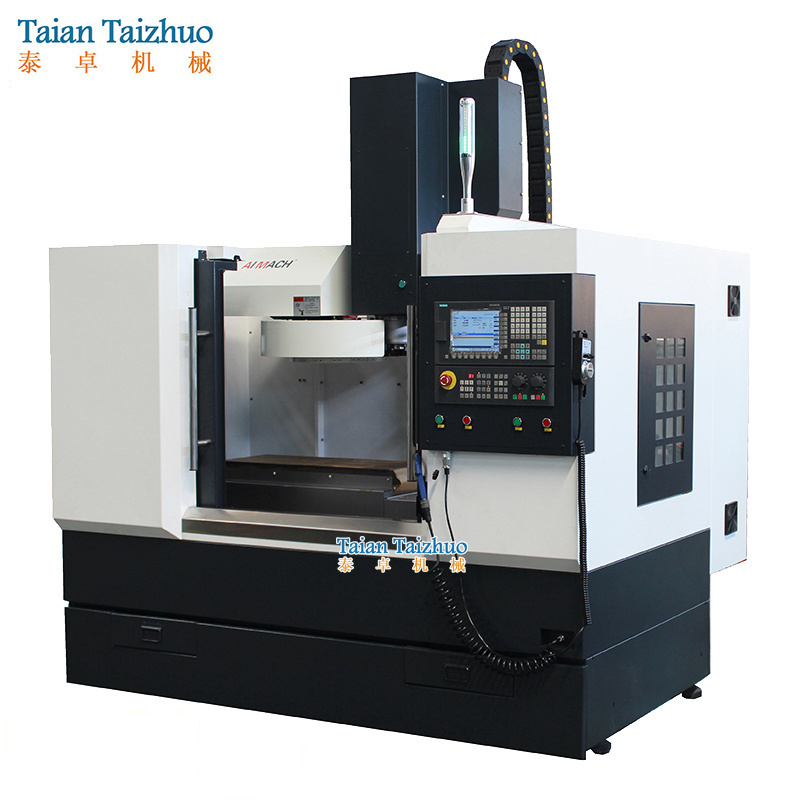

Mold Making Machine Mini Milling Machine VMC500 Fresadora CNC
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
|
Item
|
Unit
|
VMC450
|
VMC500
|
VMC650
|
|
X axis travel
|
mm
|
450
|
500
|
650
|
|
Y axis travel
|
mm
|
300
|
300
|
400
|
|
Z axis travel
|
mm
|
400
|
400
|
500
|
|
Spindle nose to table
|
mm
|
100-500
|
90-490
|
120-600
|
|
Spindle nose to column
|
mm
|
380
|
380
|
460
|
|
Max. X rapid feed
|
m/min
|
12
|
15
|
20
|
|
Max. Y rapid feed
|
m/min
|
12
|
15
|
20
|
|
Max. Z rapid feed
|
m/min
|
10
|
12
|
18
|
|
Cutting feed
|
mm/min
|
1-5000
|
1-6000
|
1-10000
|
|
Torque (X/Y/Z)
|
N.m
|
6/6/7.7
|
6/6/10
|
10/10/10
|
|
Table size
|
mm
|
650x260
|
800x260
|
800x400
|
|
Table max load
|
kg
|
300
|
400
|
500
|
|
T slot
|
mm
|
3-14-80
|
3-14-80
|
3-14-90
|
|
Spindle type
|
|
Belt
|
Belt
|
Belt
|
|
Spindle speed
|
rpm
|
50-8000
|
50-8000
|
50-8000
|
|
Spindle diameter
|
mm
|
120
|
120
|
120
|
|
Spindle taper
|
|
BT40
|
BT40
|
BT40
|
|
Pull stud
|
|
MAS403-40BT-1
|
MAS403-40BT-1
|
MAS403-40BT-1
|
|
Spindle motor
synchronizing wheel
|
|
Taiwan
|
Taiwan
|
Taiwan
|
|
Spindle belt
|
|
Taiwan
|
Taiwan
|
Taiwan
|
|
main motor
|
kw
|
2.2/3.7
|
3.7/5.5
|
5.5/7.5
|
|
Positioning accuracy (JIS)
|
mm
|
±0.01/300
|
±0.01/300
|
±0.01/300
|
|
Repeatibility (JIS)
|
mm
|
±0.005
|
±0.005
|
±0.005
|
|
Machine size
|
mm
|
2000x1800x2240
|
2100x1700x2200
|
2200x1900x2400
|
|
Weight
|
kg
|
2300
|
2400
|
3200
|
Standard configuration:
1. GSK25i CNC Controller.
2. Taiwan BT40-120-8000 spindle.
3. Taiwan Funnel Type Tool Changer.
4. Automatic Central Lubrication System.
5. Work Lamp.
6. H
igh precision ball screw.
7. Taiwan Hiwin linear guideway.
8. Full Enclosure Machine Guard.
Optional Configurations:
1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.
7. Spindle direct connection.
Important note:
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Machine Detail Show
Exporting standard package, water proof, anti-rust and fumigation-free.
Using iron base has good bearing capacity.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Customer Visiting
CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.
Pre-Sales Service
1. According to the workpiece drawing or size, Recommend machine model and configuration.
2. Sample processing support.
3. View our Factory.
4. Design new machines support.
5. OEM support.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Provide tools and accessories.
4. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.
Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.
Q3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q4. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q5. Where is the factory located? How can I visit there?
Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q6.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q7. What is the package? Is it suitable for shipment?
Machines will be packed by exporting standard package, water proof, anti-rust and fumigation-free. It is very much strong for oversea transportation.
Q8. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q9. Can I trust you?
Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.
Q10. How long is the warranty for machines?
Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your Taian Taizhuo sales representative for details.
Q11. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q12. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q13. If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
