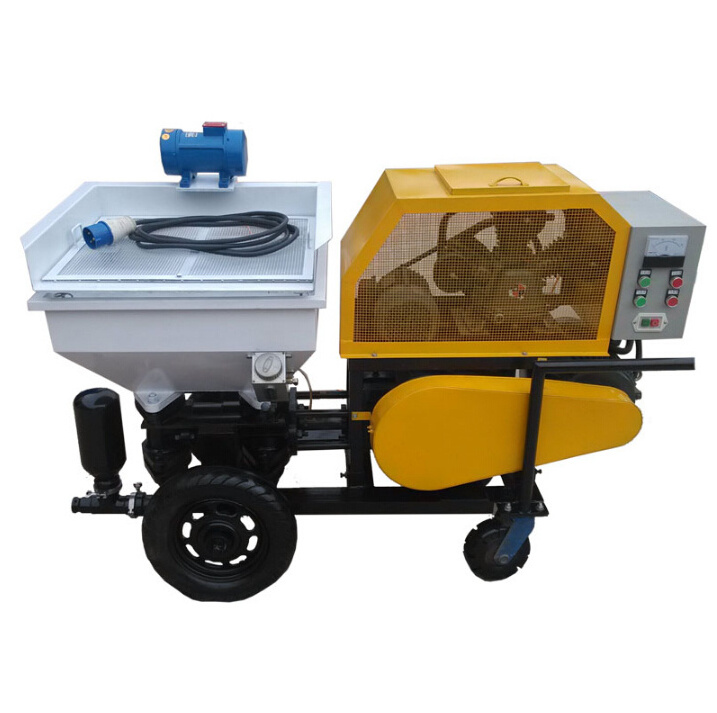

Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine
Concrete Spraying Gun/Mortar Pump/Plastering Machine

Concrete Spraying Gun/Mortar Pump/Plastering Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $5000
≥3 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max. aggregate size:
6mm
Output pressure:
5Mpa
max conveying capacity:
3m^3/h
transportation distance:
50mm
through partical size:
<8mm
power:
4kw
max pressure:
3Mpa
Convey height:
50mm
hopper capacity:
50L
Certification:
ISO CE, ISO,CE

Quick Details

Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Voltage:
220v/ 380v
Max. aggregate size:
6mm
Output pressure:
5Mpa
max conveying capacity:
3m^3/h
transportation distance:
50mm
through partical size:
<8mm
power:
4kw
max pressure:
3Mpa
Convey height:
50mm
hopper capacity:
50L
Certification:
ISO CE, ISO,CE
Product Description

Main Features:
1. The little French grey, save water, save material, can reduce more than 20% of the cost.
2. The operation is simple, do not need scaffolding, don't have to mobile devices, need not repair the grounds, Yin and Yang, are free to spray Angle, roof, shortening the time limit for a project, to improve the schedule, and cut down the cost of the frame material expenses.
3. Speed, high efficiency, low labor intensity, a sprayer can easily spray 150 m ^ 3 per hour, remove preparation time, work 8 hours a day calculations, can spray is above 1000 m ^ 3, equivalent to 20 skilled several day of work.
4. Multi-usage, can spray mortar, waterproof material, is not subject to regional and environmental conditions and the influence of the coating surface shape.

Technical Parameters
Theoretical max conveying capacity
3m^3/h
transportation distance
50MM
through partical size
<8mm
power
4KW
max pressure
3Mpa
Convey height
50MM
hopper capacity
50L
weight
300kg
shape size
1650*450*1200mm
Detailed Images
Our Service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory


After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
