Quick Details
-
Operating temperature:
-
-30℃ - +50℃
-
Degree of protection:
-
IP55
-
Rated current:
-
32A
-
Witnstand voltage:
-
2500V
-
Operation voltage:
-
240V/415V
-
Certificate:
-
CE
-
Type:
-
GBT/Type2,J1772/Type2,TYPE2/TYPE2
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
TYPE2-TYPE2
-
Brand Name:
-
BENY
-
Operating temperature:
-
-30℃ - +50℃
-
Degree of protection:
-
IP55
-
Rated current:
-
32A
-
Witnstand voltage:
-
2500V
-
Operation voltage:
-
240V/415V
-
Certificate:
-
CE
-
Type:
-
GBT/Type2,J1772/Type2,TYPE2/TYPE2
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by
UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,
we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Product Paramenters
|

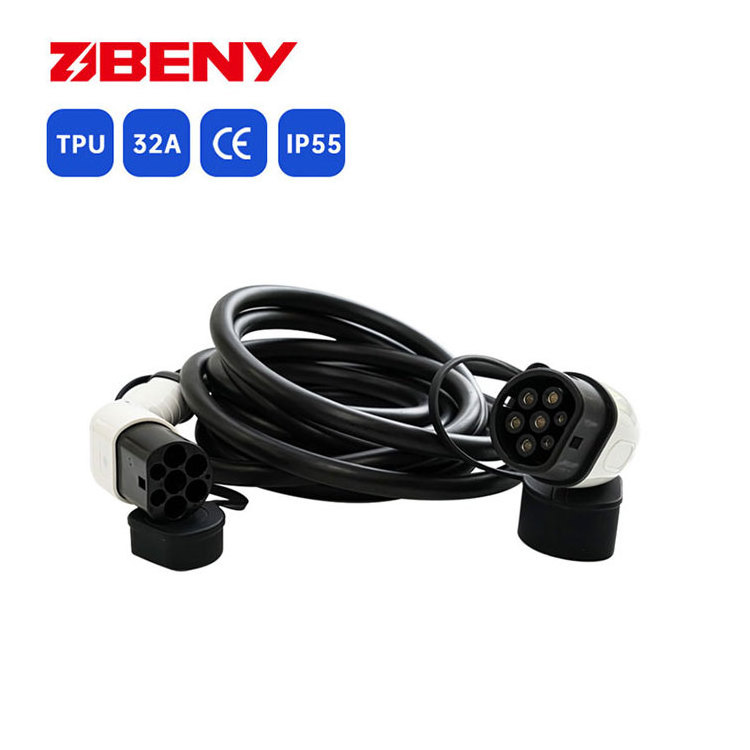

Type 2 male(EV Charger side) +Type 2 female(Car side) connectors with 5m cable, 1 phase
|
|
|
|
Product Specification
|
|
|
|
Rated current
|
32A
|
|
|
Operation voltage
|
240V/415V
|
|
|
Insulation resistance
|
> 1000MΩ(DC500V)
|
|
|
Terminal temperature rise
|
< 50K
|
|
|
Witnstand voltage
|
2500V
|
|
|
Mechanical Properties
|
|
|
|
Mechanical life
|
no-load plug in/out > 10000 times
|
|
|
Coupled insertion force
|
40N < F < 100N
|
|
|
Impat of external force
|
It can withstand 1m height drop and 2T vehicle rolling
|
|
|
Applied Materals
|
|
|
|
Shell material
|
Thermo plastic ( flame retardant grade UL94 V-0)
|
|
|
Terminal
|
Copper alloy, silver plating
|
|
|
Cable
|
Single phase: 3×6mm²+1×0.5mm² /TPU,Φ13.5±0.4
|
|
|
Environmental Performance
|
|
|
|
Operating temperature
|
-30℃ - +50℃
|
|
|
Degree of protection
|
IP55
|
|
Other specifications
1:Type 2 male(EV Charger side) +Type 2 female(Car side) connectors with 5m cable, 1 phase, 16A
2:Type 2 male(EV Charger side) + GB/T male(Car side) connectors with 5m cable, 1 phase, 16A
3:Type 2 male(EV Charger side) + J1772 Female(Car side) with 5m cable, 1 phase, 16A
4:Type 2 male(EV Charger side) +Type 2 female(Car side) connectors with 5m cable, 1 phase ,32A
5:Type 2 male(EV Charger side) + GB/T male(Car side) connectors with 5m cable, 1 phase ,32A
6:Type 2 male(EV Charger side) + J1772 Female(Car side) with 5m cable, 1 phase ,32A
7:Type 2 male(EV Charger side) +Type 2 female(Car side) connectors with 5m cable, 3 phase 16A
8:Type 2 male(EV Charger side) + GB/T male(Car side) with 5m cable, 3 phase 16A
9:Type 2 male(EV Charger side) + J1772 Female(Car side) with 5m cable, 3 phase 16A
10:Type 2 male(EV Charger side) +Type 2 female(Car side) connectors with 5m cable, 3 phase, 32A
11:Type 2 male(EV Charger side) + GB/T male(Car side) with 5m cable, 3 phase, 32A
12:Type 2 male(EV Charger side) + J1772 Female(Car side) with 5m cable, 3 phase, 32A
