Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSP-1W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
107*61*1.8mm
-
Solar cell:
-
Poly/mono/High Efficiency
-
No.of cells and connections:
-
10pcs(1*10)
-
Test condition:
-
AM1.5, 100W/m², 25°C
-
Error:
-
±2%
-
Maximum power(Pm):
-
1W
-
Voltage at max power(Vmp):
-
5V
-
Current at max power(Imp):
-
200mA
-
Short circuit current(Isc):
-
220mA
-
Open circuit voltage(Voc):
-
6V
-
Certificate:
-
CE,ROHS
Quick Details
-
Cell size:
-
156mm*156mm
-
Type:
-
Polycrystalline solar cell, Customized Solar Panel
-
Panel Efficiency:
-
22%
-
Warranty:
-
12months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSP-1W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
107*61*1.8mm
-
Solar cell:
-
Poly/mono/High Efficiency
-
No.of cells and connections:
-
10pcs(1*10)
-
Test condition:
-
AM1.5, 100W/m², 25°C
-
Error:
-
±2%
-
Maximum power(Pm):
-
1W
-
Voltage at max power(Vmp):
-
5V
-
Current at max power(Imp):
-
200mA
-
Short circuit current(Isc):
-
220mA
-
Open circuit voltage(Voc):
-
6V
-
Certificate:
-
CE,ROHS
Product Description
|
Specifications –
Customizable solar panels
|
|
|
|
product name
|

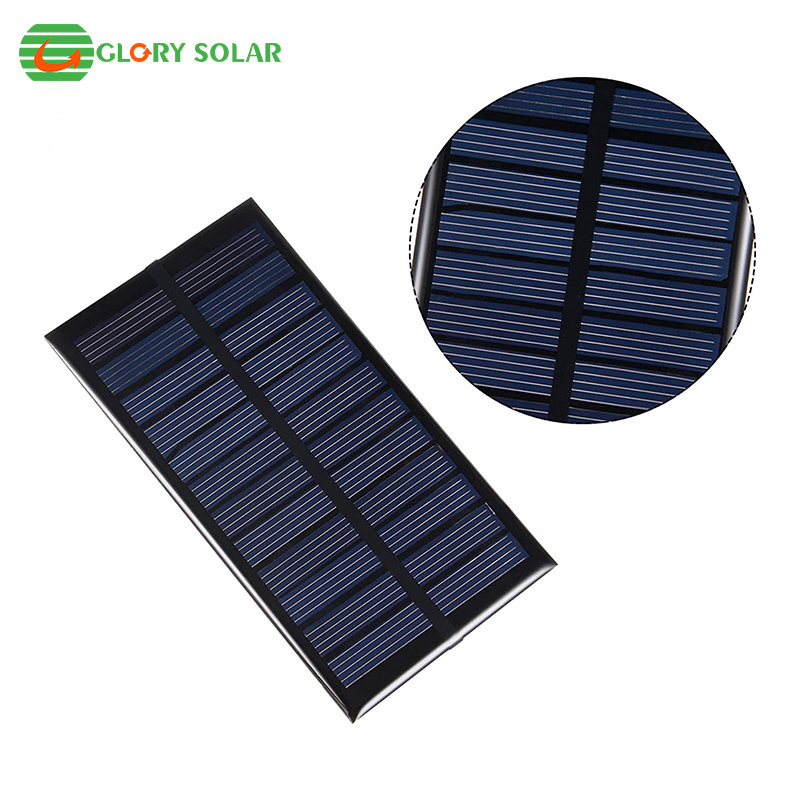

1W 5V solar panel
|
|
|
No.of cells and connections
|
10pcs(1*10)
|
|
|
Test condition
|
AM1.5, 100W/m², 25°C
|
|
|
Error
|
±2%
|
|
|
Maximum power(Pm)
|
1W
|
|
|
Voltage at max power(Vmp)
|
5V
|
|
|
Current at max power(Imp)
|
200mA
|
|
|
Short circuit current(Isc)
|
220mA
|
|
|
Open circuit voltage(Voc)
|
6V
|
|
|
Dimension
|
107*61*1.8mm
|
|
|
Weight
|
40g
|
|
