Quick Details
-
Brand Name:
-
CWX
-
Product name:
-
automatic water level control valve
-
Type:
-
2way/3way, BALL VALVES, Emergency Shut-Off Valves, Truck Shut-Off Valves, Mixing Valves, Float Valves, Drain Valves, Flush Valves
-
Certificate:
-
CE
-
Body material:
-
SS304/Brass
-
Voltage:
-
DC3/6V DC9/24V AC220V AC85/265V
-
Working pressure:
-
Max1.0MPa
-
Size:
-
DN8~DN32
-
Connection:
-
Bsp.NPT
-
Medium:
-
Liquids
-
Open time:
-
<5S
Quick Details
-
Port Size:
-
1/4"~5/4'' 2-way
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-15N/CWX-15Q
-
Brand Name:
-
CWX
-
Product name:
-
automatic water level control valve
-
Type:
-
2way/3way, BALL VALVES, Emergency Shut-Off Valves, Truck Shut-Off Valves, Mixing Valves, Float Valves, Drain Valves, Flush Valves
-
Certificate:
-
CE
-
Body material:
-
SS304/Brass
-
Voltage:
-
DC3/6V DC9/24V AC220V AC85/265V
-
Working pressure:
-
Max1.0MPa
-
Size:
-
DN8~DN32
-
Connection:
-
Bsp.NPT
-
Medium:
-
Liquids
-
Open time:
-
<5S

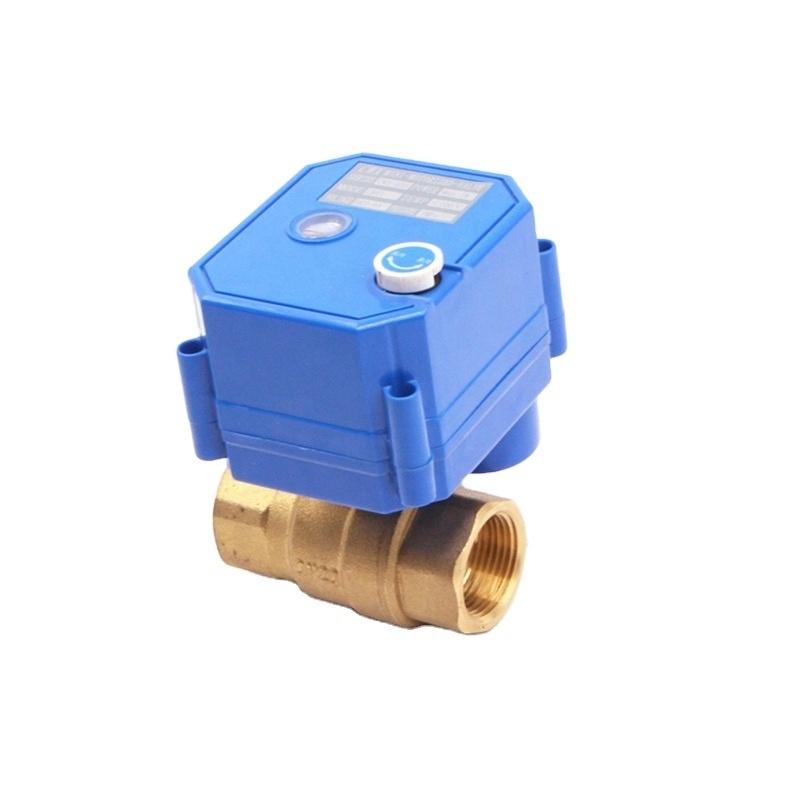

Motorized Water Ball Valve Stainless Steel brass motorized Ball Valve 5V 9-24V AC/DC 110V 220V cwx-15n electric ball stainless steel valve electric motor operated control valve automatic water level control valve automatic water level control valve
1, Metal gearbox and POM gear design, low noise, perform reliably .
2, Long service life: more than 100000 circles .
3,E lectric limit and machinery limit design, located accurately, avoid gear run continuously.
4, Mufti-angle assembling, easy to install .
5, Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system .
2.Auto control system, industrial mini auto control equipment .
3.Water saving equipment, drinking water equipment .
4.Air-conditioning fan coin(HVAC) .
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-15Q |
DC3-6V
DC12V AC/DC9-24V AC220V AC85-265V |
Max100mA (CR04 except Max150mA) |
Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
|
Brass
|
Connection | Sizes | d | H | L |
|
Both female thread Full-port |
DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertical Three-way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
