Quick Details
-
Brand Name:
-
GUOYU
-
Model Number:
-
GY 7090
-
Length:
-
1000-2100mm
-
Width:
-
300-900mm
-
Thickness:
-
100-600mm
-
Application:
-
poultry house, greenhouse, factory, workshop
-
Color selection:
-
black-coated (washable)
-
After-sales Service Provided:
-
Online support
Quick Details
-
Weight (KG):
-
23
-
Core Components:
-
frame
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOYU
-
Model Number:
-
GY 7090
-
Length:
-
1000-2100mm
-
Width:
-
300-900mm
-
Thickness:
-
100-600mm
-
Application:
-
poultry house, greenhouse, factory, workshop
-
Color selection:
-
black-coated (washable)
-
After-sales Service Provided:
-
Online support
Products Description

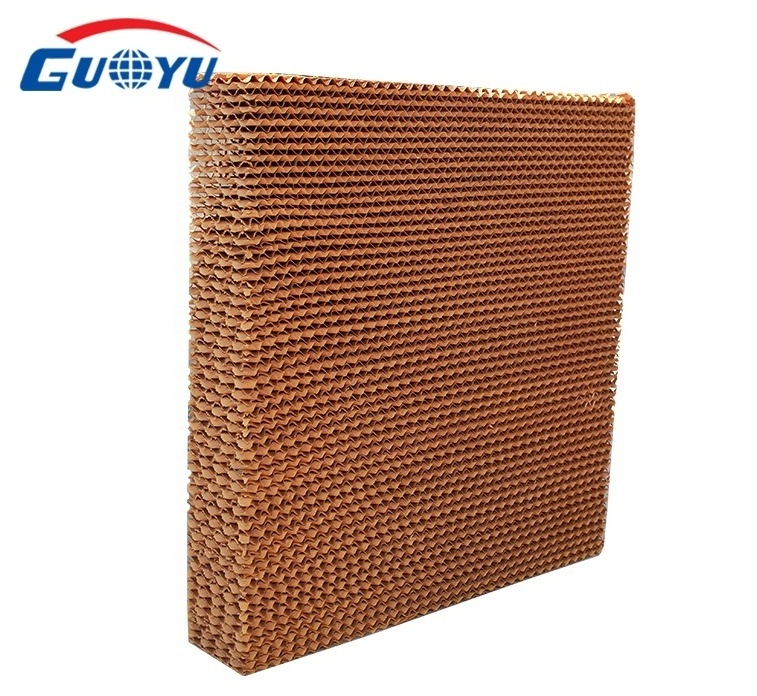

Cooling pad:
1.The cooling pad formed by corrugated fiber which is made of special raw paper pulp. It is anti-corrosive, with high strength and long service life, for the paper is added with special chemical composition and treated with special post process. Designed with a certain angle, its corrugated fiber construction provides sufficient heat exchanging surface for air and water. It can also act as a natural filter when air getting into the house through cooling pad.
2.When the water quality is not good and lead the water pipe clogged, can be directly washed with high pressure water gun, no need open the cooling pad frame.
|
Cooling Pad Parameter
|
|
|
|
|||
|
H: high W: width D: depth h: wave heihgt α°: wave angle β°: wave angle
|
|
|
|
|||
|
|
7090
|
5090
|
7060
|
|||
|
H(mm)
|
1500/1800/2000
|
1500/1800/2000
|
1500/1800/2000
|
|||
|
W(mm)
|
600
|
600
|
600
|
|||
|
D(mm)
|
100/150
|
100/150
|
100/150
|
|||
|
h(mm)
|
7
|
5
|
7
|
|||
|
α°
|
45
|
45
|
15
|
|||
|
β°
|
45
|
45
|
45
|
|||
Advantage
Advantage :
1.Use the new material and the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2.Large evaporative area, cooling efficiency as high as 80%.
3.The products include surface active agents, absorb water naturally, fast speed of pervasion, lasting effectiveness. A drop of water can diffuse in 4-5 seconds. Height of absorb water; 60-
70mm/5seconds,200mm/1.5hours, can meet international standard.
4.products do not include chemicals which are allergic to the skin .It is nontoxic, harmless, safe, energy saving, environment-friendly ,practical and economic.
5.When moisture evaporates, it will not only lower temperature naturally, but also produce many negative oxygen ions, which will effectively increase the amount of oxygen in the air.
6.Even color, good absorption and stiffness, quick diffusion, and long service life.
7.Low consumption of energy, the consumption of electricity is only one tenth of traditional air-conditioning.
8.You may choose galvanized sheet, aluminum alloy or fiberglass for outline frame
