Quick Details
-
Product name:
-

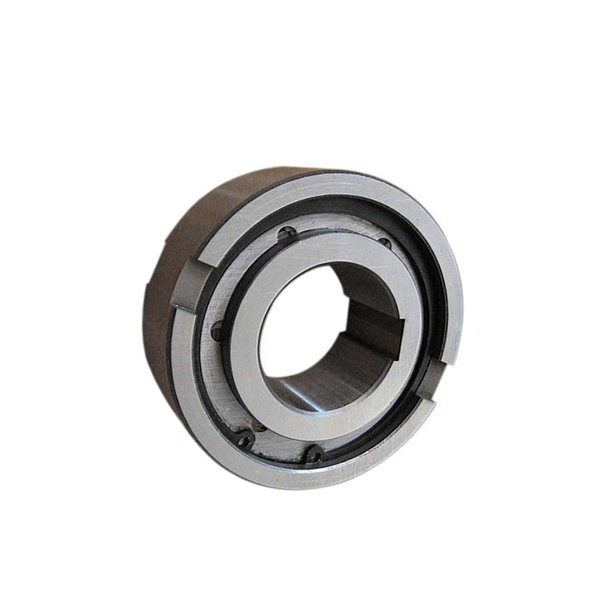

GC-B90190 Clutch One Way Bearing Assy
-
Material:
-
GCr15
-
Weight:
-
8.2kg
-
Package:
-
Single Box
-
Port:
-
Shanghai,Ningbo
-
STOCK:
-
Rich
-
OEM:
-
Accept
-
Application:
-
Machinery
-
Warranty:
-
One Year
-
Keywords:
-
One-Way Bearing
Quick Details
-
Type:
-
GC-B Series
-
Precision Rating:
-
P2, P5, P0, P4, P6
-
Place of Origin:
-
China
-
Product name:
-
GC-B90190 Clutch One Way Bearing Assy
-
Material:
-
GCr15
-
Weight:
-
8.2kg
-
Package:
-
Single Box
-
Port:
-
Shanghai,Ningbo
-
STOCK:
-
Rich
-
OEM:
-
Accept
-
Application:
-
Machinery
-
Warranty:
-
One Year
-
Keywords:
-
One-Way Bearing
Description:
Type GC-B is a
roller type
freewheel non-bearing dupported. Nominal outer diameter is the same as a series 63 ball bearings.
Bearings are required to support axial and radial loads. Units are delivered grease lubricated.
Standard arrangement is to install this type alongside a bearing with the same lacation tolerance.
The inner race is keyed to the shaft. Additional side notches in the outer race provide for positive torque transmission.
This series extensive used in machinery system of conveyer, hoisting, packing, printing, papermaking, weaving, chemical, food and so on.
Bearings are required to support axial and radial loads. Units are delivered grease lubricated.
Standard arrangement is to install this type alongside a bearing with the same lacation tolerance.
The inner race is keyed to the shaft. Additional side notches in the outer race provide for positive torque transmission.
This series extensive used in machinery system of conveyer, hoisting, packing, printing, papermaking, weaving, chemical, food and so on.
Components And Parameters
|
Type
|
Nominal torque(N.m)
|
Overrunning limining speeds(r/min)
|
|
Dimension in contour(mm)
|
|
|
|
|
Weight(KG)
|
|||||
|
|
|
out race
|
Inner race
|
d (H7)
|
D (H7)
|
L
|
bW*tW
|
b n ×t n
|
|
|||||
|
GC-B835
|
8.3
|
1650
|
2500
|
8
|
35
|
13
|
4*1.4
|
2*1.0
|
0.07
|
|||||
|
GC-B1542
|
22
|
1200
|
1800
|
15
|
42
|
18
|
5*1.8
|
5*2.3
|
0.11
|
|||||
|
GC-B2052
|
56
|
1050
|
1550
|
20
|
52
|
21
|
6*2.3
|
6*2.8
|
0.19
|
|||||
|
GC-B3072
|
184
|
700
|
1100
|
30
|
72
|
27
|
10*2.5
|
10*3.3
|
0.54
|
|||||
|
GC-B4090
|
387
|
550
|
850
|
40
|
90
|
33
|
12*4.1
|
14*3.8
|
0.92
|
|||||
|
GC-B50110
|
720
|
425
|
975
|
50
|
110
|
40
|
14*5.6
|
18*4.4
|
1.74
|
|||||
|
GC-B70150
|
1656
|
300
|
475
|
70
|
150
|
51
|
20*6.9
|
20*4.9
|
4.16
|
|||||
|
GC-B90190
|
3468
|
250
|
375
|
90
|
190
|
64
|
20*8.0
|
25*5.4
|
8.2
|
|||||
|
GC-B120260
|
8640
|
185
|
275
|
120
|
260
|
86
|
28*10
|
32*7.4
|
22
|
|||||
|
GC-B1237
|
8.5
|
1600
|
2500
|
12
|
37
|
20
|
6*3.3
|
4*1.8
|
0.07
|
|||||
|
GC-B2062
|
100
|
850
|
1300
|
20
|
62
|
36
|
8*3.5
|
6*2.8
|
0.59
|
|||||
|
GC-B60170
|
2500
|
275
|
425
|
60
|
170
|
90
|
20*7.5
|
18*4.3
|
6.5
|
|||||
Mounting example
Technical Data
|
Product name:
|
GC-B90190 one way bearing
|
|
Material:
|
GCr15
|
|
Torque:
|
3468Nm
|
|
Inner diameter:
|
90mm
|
|
Outer diameter:
|
190mm
|
|
Width(L):
|
64mm
|
|
Weight:
|
8.2kg
|
