Quick Details
-
Brand Name:
-
Sunway/OEM
-
Model Number:
-
DVB-T2, DVB-T2
-
Features:
-
HD TV
-
Size:
-
147Lx138Wx40H mm
-
Front Panets:
-
ANT,USB,VGA,
-
Back Side Panels:
-
LOCK,POWER,IR
-
Input Voltage:
-
9V~24V
-
Video output:
-
CVBS/VGA/RGB/YCbCr
-
Frequency Range:
-
470MHz ~ 806MHz
-
Acceptable movement speed:
-
ement speed 0km / h ~ 150km / h
-
Power consump:
-
≤1W
-
Key word:
-
tv receiver box
Quick Details
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
802.11n 2.4GHz
-
Place of Origin:
-
China
-
Brand Name:
-
Sunway/OEM
-
Model Number:
-
DVB-T2, DVB-T2
-
Features:
-
HD TV
-
Size:
-
147Lx138Wx40H mm
-
Front Panets:
-
ANT,USB,VGA,
-
Back Side Panels:
-
LOCK,POWER,IR
-
Input Voltage:
-
9V~24V
-
Video output:
-
CVBS/VGA/RGB/YCbCr
-
Frequency Range:
-
470MHz ~ 806MHz
-
Acceptable movement speed:
-
ement speed 0km / h ~ 150km / h
-
Power consump:
-
≤1W
-
Key word:
-
tv receiver box

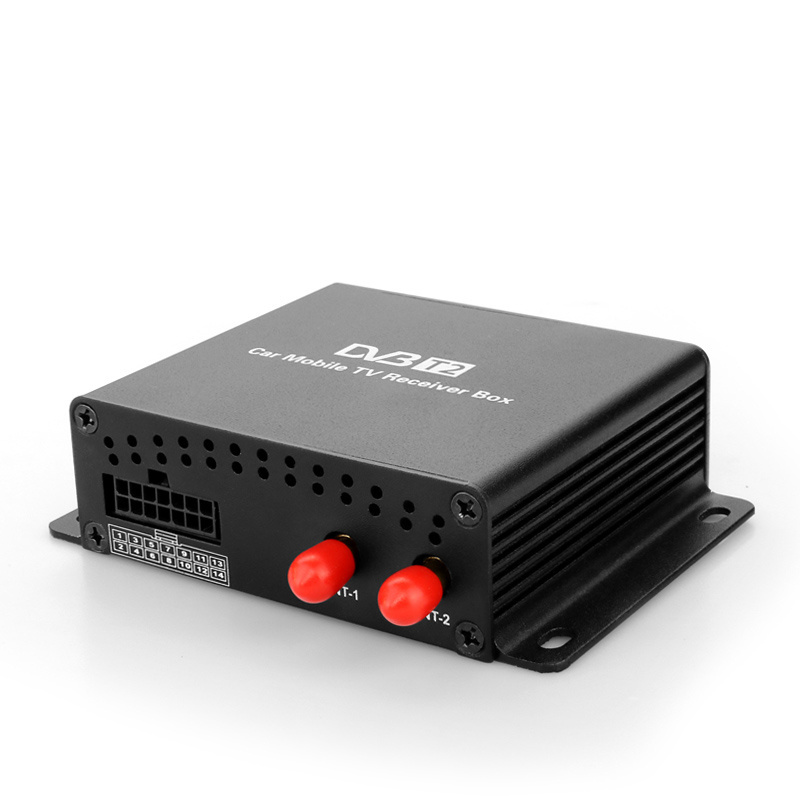

DVB-T2 1080p dual tuner digital satellite receiver High Speed digital TV Receiver for Mobile Car
- AUTO: 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
- Video format: 480i/480p/576i/576p/720p/1080i/1080p
- With built-in two tuners
- 2-way AV output
- Supports high-speed of up to 220km/h in Germany, and 120km/h in other countries
- Support teletext/subtitle/multi-language
- PAL/NTSC TV format support
- mini USB2.0 software upgrade
- USB multimedia and PVR function
- Support EPG program guide an channel list
- Touch screen or remote control support
- Support high-speed mobile signal receiving
- Program parameters memorization when power off
- Can store up to 1000 TV/radio stations
- Multi-language OSD: English, German, Franch, Hebrew, Arabic, Italian, Spanish, Persian and so on
- RF input: 2 SMA-type terminal
- Input Impedance@Antenna: 75ohm
- Frequency range: 48MHz-866MHz
- Signal level: 83±3dBm
- Bandwidth: 6M/7M/8M
- Demodulation: QPSK,16QAM,64QAM, 256QAM
- Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- FEC : 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
- Cofdm carrier mode: 1k,2k,4k,8k,16k,32k
-Video Decoder:
MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
-Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital),
AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding
HE-AAC 5.1 multi-chhannel decoding
- Video System: PAL/NTSC
- Video output: CVBS
- Audio Output: left/right
- IR remote control
- mini USB for upgrade
- Input Voltage Range: 9V~16V
- Power consumption: <2.5W
- Operation temperature: -20-70 ℃ ,
- Working limit: -25-75 ℃
1* TV receiver box
2* Antenna mainbox
1* Harness
1* Remote control
1* User’s manual
1.Professional and 16 years history
2.16-year overseas marketing & 16-year OEM/ODM experience
3.100% quality test before shipment
4.Market leading prices
5.Best after-sales service
6.Abundant exporting experience
