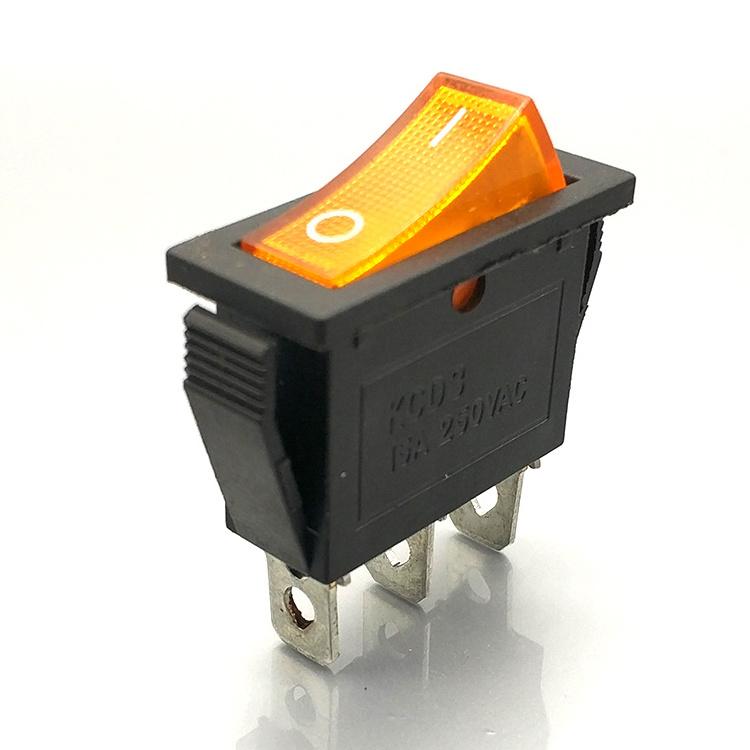

Quick Details
-
Model Number:
-
KCD1/KCD2/KCD3/KCD4
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Switch type:
-
rocker switch t125 55
-
Rating. Current/Voltage:
-
16A/250V 20A/125V
-
Withstand Voltage:
-
1500V AC/min
-
Operating Temperature:
-
-25~+125℃
-
Shell Material:
-
Nylon66
-
Conductive Material:
-
copper Tinned/Zinc Alloy
-
Mechanical life:
-
100000 cycles
-
Initial contact resistance:
-
50m Ωmax
-
Insulation resistance:
-
100M Ω
-
Certification:
-
yes
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
KCD1/KCD2/KCD3/KCD4
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Switch type:
-
rocker switch t125 55
-
Rating. Current/Voltage:
-
16A/250V 20A/125V
-
Withstand Voltage:
-
1500V AC/min
-
Operating Temperature:
-
-25~+125℃
-
Shell Material:
-
Nylon66
-
Conductive Material:
-
copper Tinned/Zinc Alloy
-
Mechanical life:
-
100000 cycles
-
Initial contact resistance:
-
50m Ωmax
-
Insulation resistance:
-
100M Ω
-
Certification:
-
yes
- Xiamen Olink Imp&Exp is professional in ELECTRONIC 15 years , with good quality and short lead time.
- Our company occupies nearly 10,000 sq. meters and the area of the workshop is 30,000 sq. meters. There are more than 500 employees including 60 technicians.
- We have the three main series of the products containing electronic connectors , terminal blocks, wire harness and switches up to 200 types and 2000 specs.
| Rated voltage | 250V AC | 125 AC | 250V AC | 125VAC |
| Rated current | 6A | 10A | 16A | 20A |
| The number of contacts | 2P 3P 4P 6P | |||
| Contact resistance | ≤50mΩ | |||
| Withstand voltage | 1500V AC/1 min | |||
| Insulation resistance | ≥100MΩ | |||
| Rated Load | 2/8 250V AC | |||
| Shell Material | PA66 | |||
| Temperature | -28 ℃—85 ℃ | |||
| Conductive Material | copper Tinned/Zinc Alloy | |||
| Mechanical Life | ≥100000 cycles | |||
| Electrical Life | ≥ 10000 cycles | |||
Q:Why choose us?
A:1.100% home made,competitive price and fast delivery.
2.strict quality control.Certified by ISO9001:2000/ELT/TUV/CE/PSE/CQC/ROHS/UL.
Q:How long is your delivery time?
A:Sample is 1-3 days;Mass products is 5-7 days.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Paypal,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
