Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aoboon
-
Model Number:
-
SP13-4C-A
-
Product name:
-
Waterproof SP13 Connector
-
Poles:
-
2 3 4 5 6 7 9pin
-
Material:
-
Nylon PA66 & Copper
-
IP Rated:
-
IP68
-
Current Rating:
-
13A
-
Voltage rating:
-
125V-250V
-
Wiring Gauge:
-
≤ 2mm / 14 AWG
-
Working Temperature:
-
-40℃ ~ +85℃
-
Warranty:
-
2 Years
-
Certificates::
-
RoHS, REACH, ISO9001
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Power, Waterproof Case, Power, LED Lighting
-
Gender:
-
Male/Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aoboon
-
Model Number:
-
SP13-4C-A
-
Product name:
-
Waterproof SP13 Connector
-
Poles:
-
2 3 4 5 6 7 9pin
-
Material:
-
Nylon PA66 & Copper
-
IP Rated:
-
IP68
-
Current Rating:
-
13A
-
Voltage rating:
-
125V-250V
-
Wiring Gauge:
-
≤ 2mm / 14 AWG
-
Working Temperature:
-
-40℃ ~ +85℃
-
Warranty:
-
2 Years
-
Certificates::
-
RoHS, REACH, ISO9001
Sp Series Connector Weipu Sp11 Sp13 Sp17 Sp21 Sp29 2 3 4 5 6 7 9 12 14 16 19 22 24 26 Pin Ip67 Ip68 Waterproof Cable Connector
Product Description
| Model | SP13-4C-A |
| Pins | 4 Pin |
| Material | Nylon PA66, Copper, Silica Gel Ring |
| Voltage | 250V |
| Current | 13A |
| Cable Diameter | 4.5-7.5mm |
| IP Rating | IP68 |
| Temperature Rating | -40℃~+85℃ |
| Certificates | CE, RoHS, REACH |
| Warranty | 2 years |
Features:

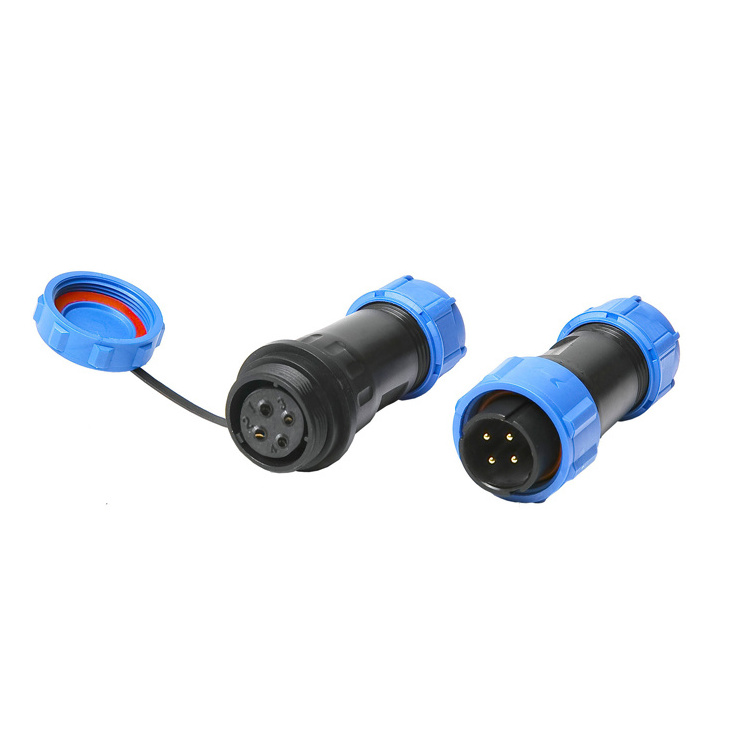

The SP13, SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP13 is the smallest plastic shell IP68 waterproof connector, this miniature connector is one of our most popular outdoor watertight connector.
The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP68 sealing caps are available on both cable connector and panel connector.
1) Shell Diameter (the panel hole cutout diameter): 13mm
2) Number of Contacts: 2 -9 gold plated contacts
3) Rated Current and V : 13A-3A , 250V-125V
4) Cable Outer Diameter Acceptance: type I: 4-6.5mm, type II: 5-8mm
5) CE, ROHS approval
The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP68 sealing caps are available on both cable connector and panel connector.
1) Shell Diameter (the panel hole cutout diameter): 13mm
2) Number of Contacts: 2 -9 gold plated contacts
3) Rated Current and V : 13A-3A , 250V-125V
4) Cable Outer Diameter Acceptance: type I: 4-6.5mm, type II: 5-8mm
5) CE, ROHS approval
