Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-
ADL100-EYNK
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V/380V
-
Operating Temperature:
-
-25℃~+55℃
-
Dimensions:
-
88mm*72mm*70mm
-
Input Voltage:
-
10(60)A
-
Communication:
-
RS485 MODBUS-RTU,NB-IoT,2G,4G,Lora
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999.99 KWh
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acrel
-
Model Number:
-
ADL100-EYNK
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V/380V
-
Operating Temperature:
-
-25℃~+55℃
-
Dimensions:
-
88mm*72mm*70mm
-
Input Voltage:
-
10(60)A
-
Communication:
-
RS485 MODBUS-RTU,NB-IoT,2G,4G,Lora

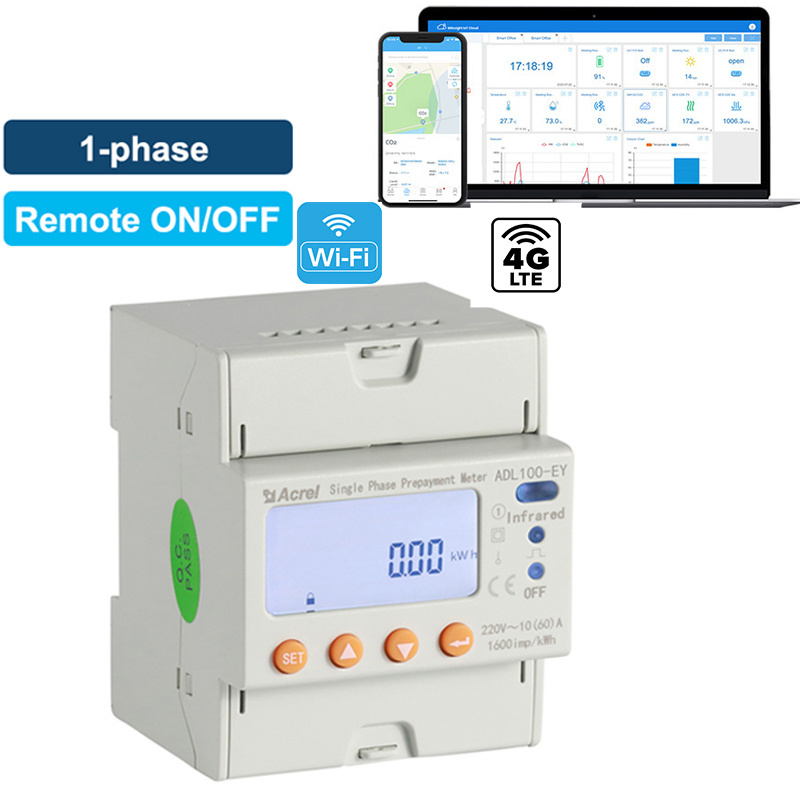

single phase smart kwh prepayment energy meter with remote turn on off
Solutions & Applications
Products Description
ADL100-EY single phase pre-paid meters with intro-control are used for calculating the single and three phase active energy respectively on the frequency of 50 Hz. The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.
Technical parameters
|
Parameter
|
Description&Value
|
|
|
|
Measurement
|
kWh&kVarh
|
Total active kWh (bidirectional --positive and negative in total)
|
|
|
|
Electrical Paratmeters
|
U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency)
|
|
|
Function Mode
|
Postpaid Mode
|
Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using
Prepaid System) |
|
|
Control
|
Remote Control
|
Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will
be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode |
|
|
Multi-rate
Multi-Tariff |
Optional Function
|
4 tariff rates (spike, peak, valley, flat); 14 time intervals by day
|
|
|
Input
Voltage |
Rated Voltage
|
220~264Vac L-N (Voltage signal input will be also served as power supply for meters)
|
|
|
|
Frequency
|
45~65Hz
|
|
|
Input
Current |
Rated Current
|
10(60)A AC (via direct connect)
|
|
|
|
Starting Current
|
0.004 Ib
|
|
|
Accuracy
|
Measurement
|
Class 1
|
|
|
|
Clock
|
≤0.5s/d
|
|
|
Pulse |
Pulse Width
|
80ms±20ms
|
|
|
|
Pulse Constant
|
1600imp/kWh
|
|
|
Communication (optional)
|
RS485 Interface
|
MODBUS-RTU Protocol
|
|
|
|
Infrared
|
Used for Meter Reading
|
|
|
|
4G LTE - Support: LTE-FDD: B1/B3/B5/B8; LTE-TDD:B34/B38/B39/B40/B41
|
MQTT PROTOCAL,
|
|
|
|
WIFI
|
MQTT PROTOCAL,
|
|
|
HMI
|
LCD Display
|
8 bits section LCD display
|
|
|
|
Keypads Programming
|
Setting of communication, current ratio and etc.
|
|
|
Mechanical
Feature |
Out-line Dimension
(L*W*H) |
72mm*88mm*70mm
|
|
|
|
Max Wiring Ability (with Flexible Cable)
|
25mm2
|
|
|
Environment
|
Operating Temperature
|
-25℃~+55℃
|
|
|
|
Storage Temperature
|
-40℃~+70℃
|
|
|
|
Humidity
|
≤95% (No condensation)
|
|
|
|
Altitude
|
＜2000m
|
|
Dimension & Installation
Typical Nework
4G WIFI communication supports uploading data to third-party customer platforms and MQTT protocol integration.
APP&PC software
Acrel IoT Energy Monitoring System could be access in 2 different ways:
(1) Access through WEB on your computer.
Access port: https://iot.acrel-eem.com/
(2) Access through APP on your mobile phone
Test Account Password: 123456
Download Link: https://play.google.com/store/apps/details?id=com.acrel.iotems
(1) Access through WEB on your computer.
Access port: https://iot.acrel-eem.com/
(2) Access through APP on your mobile phone
Test Account Password: 123456
Download Link: https://play.google.com/store/apps/details?id=com.acrel.iotems
Main Function of WEB side System:
(0) Prepaid Interface-Overview:
All basic function of prepaid operation could be seen here.Also, a overview of room balance credit and power consumption was available.
(1) Prepaid Interface-Open Account:
A prepaid energy meter will formally serve its prepaid billing and control function only after binding a "room" and "user" with it and open account for this certain "room".
A prepaid energy meter will formally serve its prepaid billing and control function only after binding a "room" and "user" with it and open account for this certain "room".
(2) Prepaid Interface-Topping Up:
Enter amount to issue topping up command to certain "prepaid energy meter" bound with certain " room/user".
Enter amount to issue topping up command to certain "prepaid energy meter" bound with certain " room/user".
(3) Prepaid Interface-Retreat:
Retreat certain amount from credit balance. Designed for revising the possible false operation
Retreat certain amount from credit balance. Designed for revising the possible false operation
(4) Prepaid Interface - Control - Prepaid Mode: In Prepaid Mode,
when the credit balance below 0, prepaid energy meter will automatically shut down loads power. and when balance above 0, will immediate resume loads power
when the credit balance below 0, prepaid energy meter will automatically shut down loads power. and when balance above 0, will immediate resume loads power
(5) Prepaid Interface - Control - Postpaid Mode:
In postpaid mode, load's off-on switch control will be fully manually control by platform. Balance credite whether below or
above 0 won't influence the load's switch on/off status automatically.
above 0 won't influence the load's switch on/off status automatically.
