Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XG-005
-
Brand Name:
-
XiangGuang
-
Product name:
-
Expanded Metal Sheet
-
Surface treatment:
-
PVC coated,epoxy resin
-
Hole shape:
-
diamond,scale,hexagonal
-
long way of hole:
-
4.5-100mm
-
short way of hole:
-
2.5-50mm
-
LWD:
-
4.5-200MM
-
SWD:
-
2.5-80MM
-
Color:
-
silver,golded,red or as your reuiqrements
-
thickness:
-
0.5-8mm
-
Certification:
-
ISO9001:2008
Quick Details
-
Material:
-
low carbon steel plate,stainless steel plate,aluminum plate etc
-
Type:
-
Expanded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XG-005
-
Brand Name:
-
XiangGuang
-
Product name:
-
Expanded Metal Sheet
-
Surface treatment:
-
PVC coated,epoxy resin
-
Hole shape:
-
diamond,scale,hexagonal
-
long way of hole:
-
4.5-100mm
-
short way of hole:
-
2.5-50mm
-
LWD:
-
4.5-200MM
-
SWD:
-
2.5-80MM
-
Color:
-
silver,golded,red or as your reuiqrements
-
thickness:
-
0.5-8mm
-
Certification:
-
ISO9001:2008

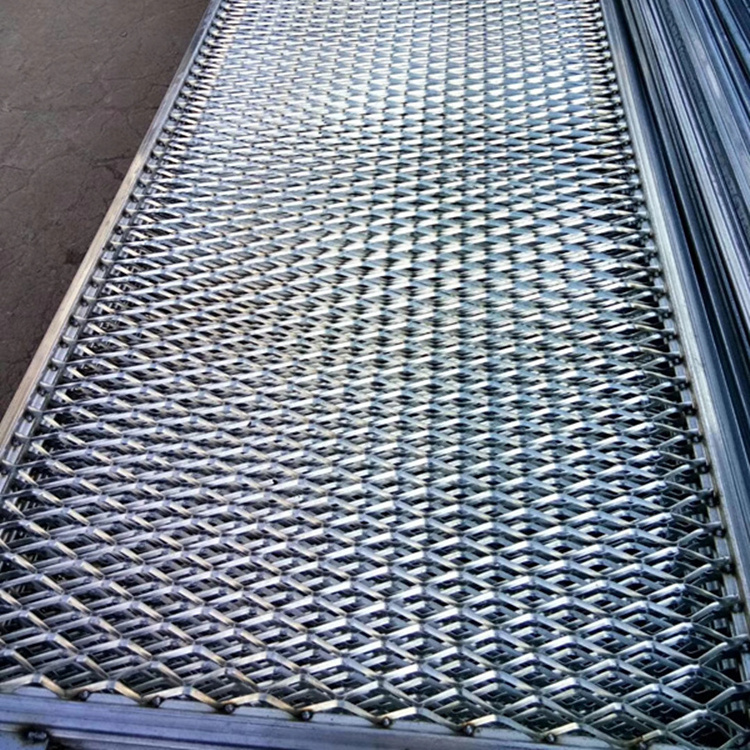

China factory walkway stair 40x60mm galvanized expanded metal mesh sheet panel
Contact us for more information
Expanded Metal can serve as a kind of substitute for perforated metal materials and it find most uses as fences,windows decoration,ventilation devices,shelves,racks,cages and some decoration purposes.
Standard expanded metal provides a high strength to weight ratio,and is often used to protact machines or people,by stopping a specific size material from entering as a specific area.All Metals such as Stainless Steel Alloys,Aluminum,Titanium,Steel,Cooper,can all be expanded into rhombic opending for various uses including enclosures,support,protection,decoration or filtration.
|
Specification of expanded metal sheet |
|||||||
|
Item |
Strand |
Design sizes |
Opening sizes |
Open area (%) |
|||
|
Thickness (Inch) |
Width (Inch) |
LWD (Inch) |
SWD (Inch) |
LWO (Inch) |
SWO (Inch) |
||
|
01 |
0.134 |
0.150 |
2.00 |
0.923 |
1.562 |
0.675 |
67 |
|
02 |
0.092 |
0.144 |
2.00 |
0.923 |
1.625 |
0.718 |
69 |
|
03 |
0.090 |
0.096 |
2.00 |
0.923 |
1.688 |
0.76 |
79 |
|
04 |
0.060 |
0.101 |
2.00 |
0.923 |
1.75 |
0.783 |
78 |
|
05 |
0.090 |
0.096 |
1.20 |
0.500 |
0.938 |
0.337 |
62 |
|
06 |
0.060 |
0.087 |
1.20 |
0.500 |
0.938 |
0.372 |
65 |
|
07 |
0.048 |
0.088 |
1.20 |
0.500 |
0.938 |
0.382 |
65 |
|
08 |
0.036 |
0.072 |
1.00 |
0.500 |
0.718 |
0.407 |
71 |
|
09 |
0.048 |
0.072 |
1.00 |
0.250 |
0.718 |
0.146 |
42 |
|
10 |
0.036 |
0.072 |
1.00 |
0.250 |
0.718 |
0.157 |
42 |
Specifications of expanded metal steel sheet:
Materials: black steel,galvanized steel,stainless steel
Hole shapes: diamond,scale,hexagonal,tortoise shell,etc.
Surface treatment: PVC coated,epoxy resin,anodizing,painted
Long way of hole: 4.5mm-100mm
Short way of hole: 2.5mm-50mm
LWD: 4.5mm-200mm
SWD: 2.5mm-80mm
Colors: silver,golded,red or as your requirements.
Thickness: 0.5mm-8mm
Package: wrapped by waterproof paper in wooden pallet or iron pallet.
