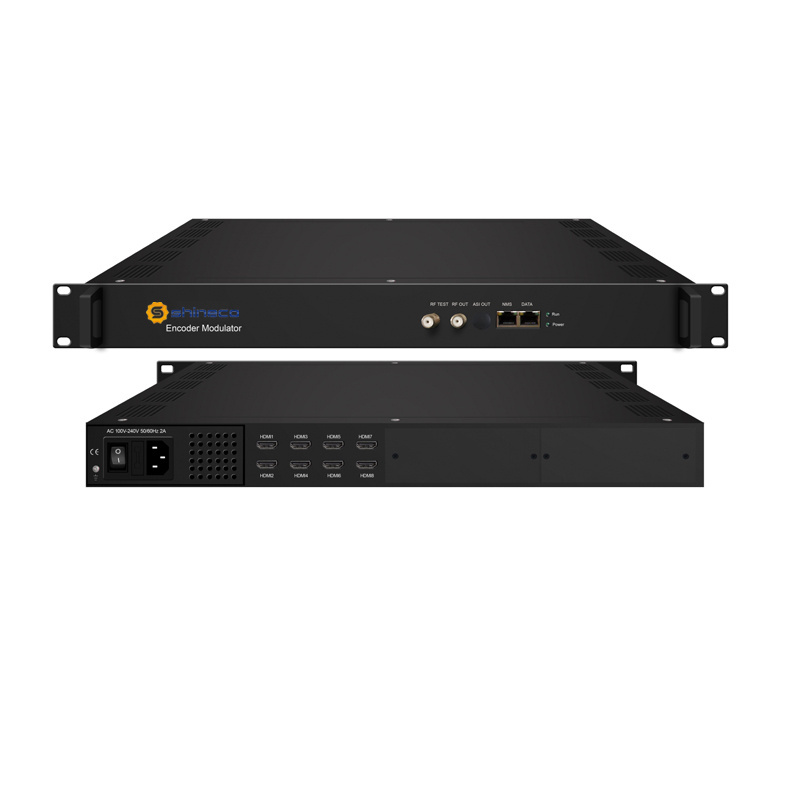

8/16/24 HDMI To DVB-C DVB-T Encoder Modulator
Welcome to add our skype to get more details:Jacky.shineco
Product Overview
SNK6306S is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 8 HDMI inputs and DVB-C/T RF out with 4 adjacent carries and 4 MPTS out as mirror out of the 4 modulation carriers via DATA (GE) port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key features
* Support LOGO, OSD and QR code insertion for every local channel (Language Supported:Chinese, English, for more languages please consult us…)
* 8 HDMI input, MPEG-4 AVC/H.264 Video encoding
* MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through and support audio gain adjustment
* 4 groups of multiplexing/modulating output channels
* 4 DVB-C or DVB-T RF out
* Support 4 MPTS IP output over UDP and RTP/RTSP
* Support PID remapping/PSI/SI editing and inserting
* Control via web management, and easy updates via web
Principle Chart
Technical Specification
|
Input |
8 HDMI inputs |
|||||
|
Video |
Encoding |
MPEG-4 AVC/H.264 |
||||
|
Resolution |
In-put |
1920*1080_60P, 1920*1080_60i, 1920*1080_50P, 1920*1080_50i, 1280*720_60P, 1280*720_50P, 720*576_50i,720*480_60i, |
||||
|
Out-put |
1920*1080_30P, 1920*1080_25P, 1280*720_30P, 1280*720_25P, 720*576_25P,720*480_30P, |
|||||
|
Bit-rate |
1Mbps~13Mbps each channel |
|||||
|
Rate Control |
CBR/VBR |
|||||
|
Audio |
Encoding |
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through |
||||
|
Sampling rate |
48KHz |
|||||
|
Resolution |
24-bit |
|||||
|
Audio Gain |
0-255 Adjustable |
|||||
|
MPEG-1 Layer 2 bit-rate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
|||||
|
LC-AAC bit-rate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
|||||
|
HE-AAC bit-rate |
48/56/64/80/96/112/128 kbps |
|||||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||||
|
Function |
PID remapping ( automatically or manually) |
|||||
|
Generate PSI/ SI table automatically |
||||||
|
Modulation |
DVB-C |
RF out |
4*RF DVB-C out (4 carriers combined output) |
|||
|
Standard |
EN300 429/ITU-T J.83A/B |
|||||
|
MER |
≥40db |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF output level |
-25~-1dBm (82~105 dbµV), 0.1dBm |
|||||
|
Symbol Rate |
5.0Msps~7.0Msps, 1ksps stepping |
|||||
|
|
J.83A |
J.83B |
||||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
||||
|
Bandwidth |
8M |
6M |
||||
|
DVB-T |
Standard |
EN300744 |
||||
|
FFT mode |
2K, |
|||||
|
Bandwidth |
6M, 7M, 8M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
≥42 dB |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF out |
4*RF COFDM DVB-T out (4 carriers combined output) |
|||||
|
RF output level |
-28~ -3 dBm (77~97 dbµV), 0.1db step |
|||||
|
Stream output |
RF output (F type interface) |
|||||
|
4 IP MPTS output over UDP/RTP/RTSP, 1*1000M Base-T Ethernet interface |
||||||
|
System function |
Network management(WEB) |
|||||
|
Chinese and English language |
||||||
|
Ethernet software upgrade |
||||||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
||||
|
Environment |
0~45℃(work);-20~80℃ (Storage) |
|||||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz |
|||||
