Hotel TV Solution multichannel Tuners DVB-S2 to DVB-C isdb-t modulator 16 port rf

Hotel TV Solution multichannel Tuners DVB-S2 to DVB-C isdb-t modulator 16 port rf

FOB Reference Price: Get Latest Price

≥1 Pieces

US $699

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: DVB-S/S2 to DVB-C RF Converter

Input interface:: Tuner+IP +ASI input

Tuner in type:: 4/8/12/16/20/24 Channel

Standard of Tuner:: DVB-S/S2/C/ISDB-T/DVB-T/ATSC

RF carrier output:: 4/8 /16 RF DVB-T/ISDB-T/ATSC carrier or 16* DVB-C

ASI:: 2 ASI input & output multi plexing

IP input:: 128*MPTS/SPTS UDP/rtp

IP output:: 1*MPTS & 127*SPTS UDP/RTP

Support:: Web management

Application:: IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DIGICAST/DTVANE

Model Number:: DMB-24E

Product name:: DVB-S/S2 to DVB-C RF Converter

Input interface:: Tuner+IP +ASI input

Tuner in type:: 4/8/12/16/20/24 Channel

Standard of Tuner:: DVB-S/S2/C/ISDB-T/DVB-T/ATSC

RF carrier output:: 4/8 /16 RF DVB-T/ISDB-T/ATSC carrier or 16* DVB-C

ASI:: 2 ASI input & output multi plexing

IP input:: 128*MPTS/SPTS UDP/rtp

IP output:: 1*MPTS & 127*SPTS UDP/RTP

Support:: Web management

Application:: IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel

Products Description

Overview

DMB-24E Plus Series 8/12/16/20/24 Channels professional Trans-modulator, 4 Tuners ports per module, Up to 6 Modules in Back panel, demodulate to 4 separate multiplexing and Up-converter modulating adjacent carrier out.It also supports 2*independent HDMI/SDI input and output.The Tuners support DVB-S/S2/T/T2/C/ ISDB-T /ATSC-T optional input, Output RF standard support DVB-T/DVB-C/ATSC/ ISDB-T/DTMB option from UI, only need reboot the device after switch the output RF standard, IP Output 1*MPTS channels simultaneously.

This is an ideal solution for environments where you have a large number of air Channel, and widely used in IPTV System, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast System, largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.

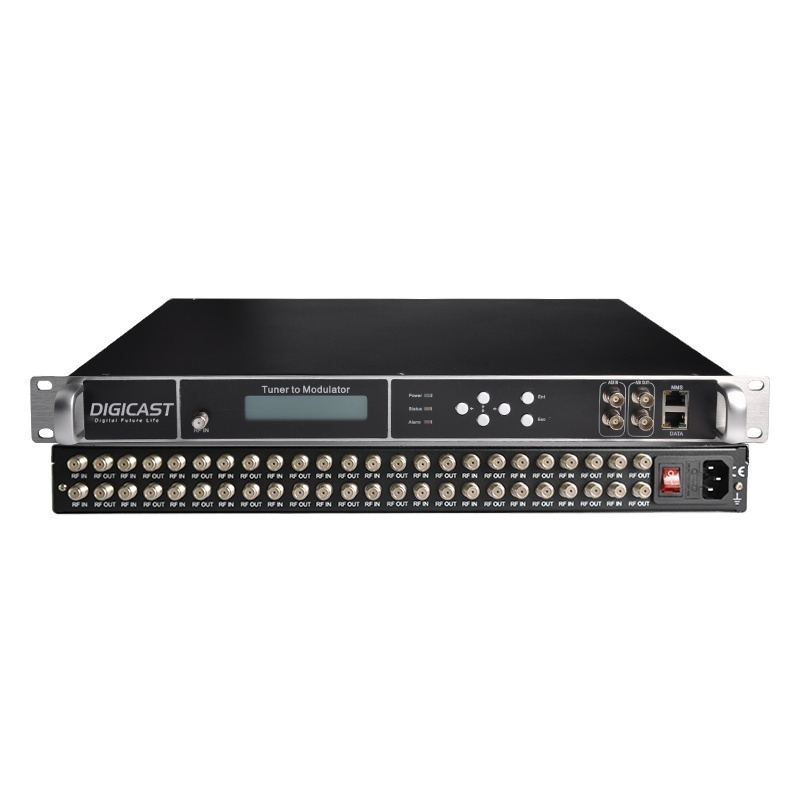

Production Picture

Mixed HDMI+Tuners to RF Remodulator

Tuner support : 2 types RF standard input

8*DVB-SS2+8*DVB-TT2

or 16 DVBSS2+8 ISDB-T

or 8*ISDB+8*DVB-TT2

Just two different types but max 24 channels

Support Tuner+HDMI input

for example: 16 *tuners +8*HDMI

just max 24 channels

Specification

FTA TUNERS INPUT
DVB-T/T2 Tuner	Frequency range: 30MHz-1000Mhz Bandwidth: 6Mhz, 7Mhz, 8Mhz Level: -87 ~ -20dBm Constellation: QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2) FEC Demodulation: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 Guard Interval: DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
ISDB-T/Tb Tuner	Input frequency range: 30 ~ 900MHz Bandwidth: 6MHz Constellation: DQPSK, QPSK, 16QAM, 64QAM Interleave: 0, 4, 8, 16 Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission mode: 2K, 4K, 8K (FFT) FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C Tuner	Input frequency range: 110 ~ 862MHz DVB-C (J83.A, J83.C, NO Annex B) Carrier: Annex A、Annex C Constellation (QAM): 16, 32, 64, 128, 256, 64/256 Bandwidth (Mhz): 8, 6 Symbol Rate ( Mbaud): 5-7, 4.2-5.3 Tuner interface: Connecter F-female type
DVB-S/S2 Tuner	Input frequency: 950-2150Mhz Symbol rate: 1~54MSps (DVB-S QPSK) 1~60MSps (DVB-S2 QPSK) 1~60MSps (DVB-S2 8PSK) 1~58MSps (DVB-S2 16APSK) 1~55MSps (DVB-S2 32APSK) Signal strength: -65 ~ -25dBm FEC demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S QPSK) 1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK) 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (16APSK) 3/4, 4/5, 5/6, 8/9, 9/10 (32APSK) Roll off: 0.20; 0.25; 0.35 (Only DVB-S) Demodulation mode: QPSK, 8PSK, 16APSK, 32APSK (Only DVB-S2) LNB polarity selection: Vol 0, 13V, 18V Selectable LNB band selection Tone: 0/22Khz Selectable Input impedance: 75 Ω FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
ATSC Tuner	Frequency range: 50–860 MHz Key reference specification: ATSC A/53 Input level: -34 to +40 dBmV Constellation: 8-VSB Bandwidth: 6Mhz
Modulation RF Output option
*MODULATION (4/8RF for option)**	Connector: 1 Port, F-Type, 75Ω Output Return Loss: 14 dB MER ≥ 40dB RF output level: -20 ~ 0dbm, 0.1db step Numbers of RF Channel: 4/8 Modulation Mode: DVB-C, DVB-T, ATSC, ISDB-T, DTMB option
DVB-T Modulation	Channel: DVB-T adjacent frequencies Modulation standard: EN300744 Frequency range: 96~864MHz,1Khz one step Modulation standard: EN300744 Bandwidth: 6M, 7M, 8M FFT mode: 2K, 8K Constellation:QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 TS bit rate＜31 Mbit/s
ATSC-T Modulation	Channel: 8VSB adjacent frequencies Constellation: 8VSB Frequency range: 96~864MHz, 1Khz one step Constellation: 8VSB TS bit rate＜19 Mbit/s MER≥40 dB
DVB-C Modulation	Channel: DVB-C adjacent frequencies Frequency range: 96~864MHz, 1Khz one step MER ≥ 40 dB Symbol rate: 5~7 Mbaud DVB-C standard DVB-C (J83.A, J83.B, J83.C)
ISDB-T Modulation	Channel: ISDB-T frequency Frequency range: 96~864MHz, 1Khz one step ISDB-T standard ARIB STD-B31 Constellation: DQPSK, QPSK, 16QAM, 64QAM Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission mode: 2K, 4K, 8K Code rate: 1/2, 3/4, 5/6, 7/8 Bandwidth: 6MHz TS bit rate＜21 Mbit/s MER ≥ 40 dB
DTMB	Constellation: 4QAM, 16QAM, 32QAM, 64QAM Code rate: 0.4, 0.6, 0.8 Guard Interval: 420, 595, 945 IONS
