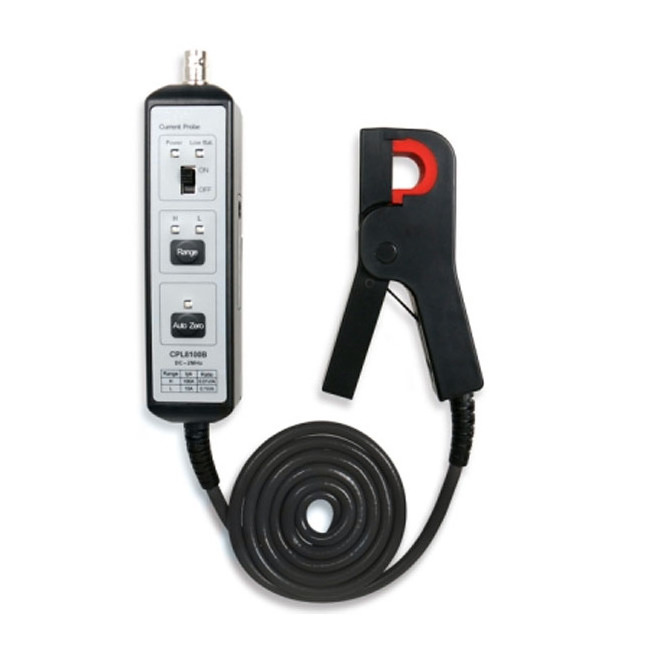

Xtester-CPL8100A-100A/600kHz Current Probe (AC/DC)
Specification
| Range level | L | H | |
| Current range | 50mA~10A Peak | 1A~100A Peak | |
| Attenuation accuracy | 0.1V/A | 0.01V/A | |
| Typical DC precision | 3%±50mA | 500mA~40A Peak :4%±50mA;40A~100A Peak :±15% Maximum | |
| Band-width | CPL8100A | DC-600kHz Refer to the typical Amplitude frequency characteristic (Figure 1) | |
| (-3dB) | CPL8100B | DC-2MHz Refer to the typical Amplitude frequency characteristic (Figure 2) | |
| Max current VS frequency | Figure 3 | ||
| characteristics curve | |||
| Phase shift | DC~65Hz:<1.5° | DC~65Hz:<1° | |
| Typical DC linearity | The typical DC linearity at H level(0.01V/A), Figure 4 | ||
| Rise time | CPL8100A | ≤583ns | |
| CPL8100B | ≤175ns | ||
| Max operation current | Please refer to voltage and current rating table | ||
| Max operation voltage | Please refer to voltage and current rating table | ||
| Max floating voltage | Please refer to voltage and current rating table | ||
| Operating voltage RMS | CATI 600V CATII 600V CATIII 300V | ||
| Common mode voltage RMS | CATI 600V CATII 600V CATIII 300V | ||
| Typical battery type and life. | 9V alkaline layer-built battery/ 15H | ||
| Low power indication | When battery voltage is lower than 6.5V, battery indicator will turned red and alert. | ||
| Overload indication | When the current under test surpasses the range, the buzzer will buzz | ||
