oily waste water treatment plant skid-mounted daf clarifier dissolved air flotation

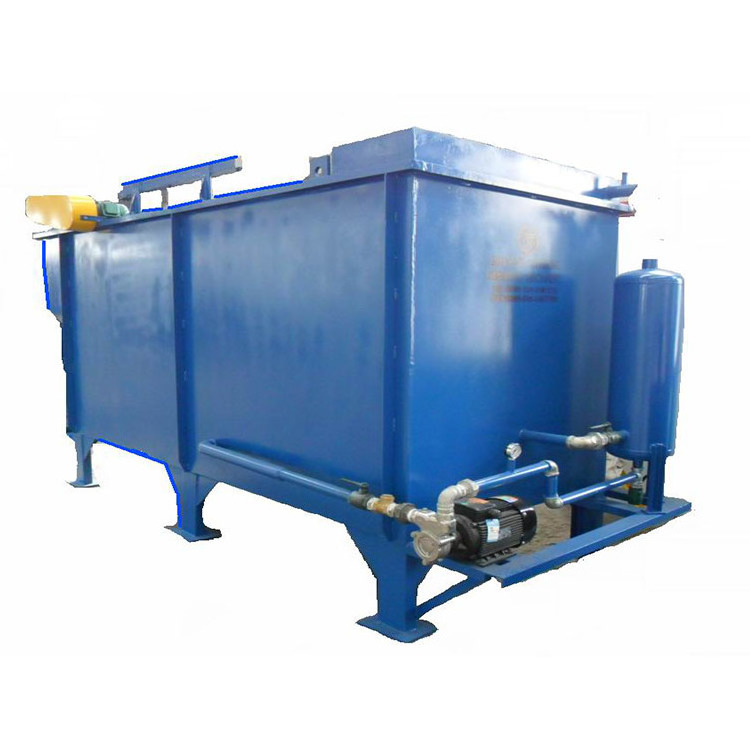

oily waste water treatment daf plant

Function & application

This machine is a separator to get clean water by separating suspended solids, fats, oils and greases from water.

The machine is used in slaughter house, chemical plants, textile plants, metal fabricator, dairy processor, pulp and paper mills, pet food processors, meat & poultry processing plants, fruit & vegetable processors and canneries, biological treatment facilities(clarification, thickening)

Feature & advantage

( 1) Remove oil and TSS.

(2) Separate small particles and algae in groundwater.

(3) Recover valuable products in industrial sewage such as paper pulp.

(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

Technical specification

Model	Productivity (m3/h)	Water volume (m3/h)	Power (kw)	Blows form machine power (kw)	Air flotation pot specification (mm)
XRWF -11-5	4-5	1.5-2	3	0.75	φ400×1000
XRWF-11-10	8-10	2-3	3	0.75	φ500×1512
XRWF-11-15	10-16	3-4	3	0.75	φ500×1512
XRWF-11-20	15-20	5-7	7.5	1.1	φ500×1512
XRWF-11-30	20-30	6-10	7.5	1.1	φ500×1512
XRWF-11-40	30-40	8-13	7.5	1.1	φ600×1880
XRWF-11-50	40-50	15-20	7.5	1.5	φ600×1880
XRWF-11-60	50-60	18-27	7.5	1.5	φ600×1880
XRWF-11-80	70-80	24-32	7.5	1.5	φ650×2034
XRWF-11-105	90-105	30-35	15	1.5	φ700×1980
XRWF-11-150	125-150	60-80	22	2.2	φ800×1980
XRWF-11-200	175-200	80-100	22	3	φ800×2100
XRWF-11-250	225-250	110-120	22	3	φ800×2400
XRWF-11-300	280-300	120-180	37	3	φ1000×2900

01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04 . We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea , also.

01. Detailed installation manual and maintenance guideline are provided with the equipment.

02. Technical training and site-commissioning are available for you.

03. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

01. How to buy your idea products?

A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

02. How to pay?

A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

03. What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

04. How to pack the products?

A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

05. How to keep your equipment from corrosion?

A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

06. How do you manufacture your equipment ?

A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

07. How to install after the equipment arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
