Quick Details
-
Brand Name:
-
BOTH
-
Voltage:
-
110V/220V
-
Power:
-
750W,1100W,2300W
-
Dimension(L*W*H):
-
700mm x 800mm x 1300mm
-
Weight (KG):
-
120
-
Marketing Type:
-
New Product 2022
-
Evaporation Capacity(kg/h):
-
1-2/4-6/6-8
-
Product name:
-

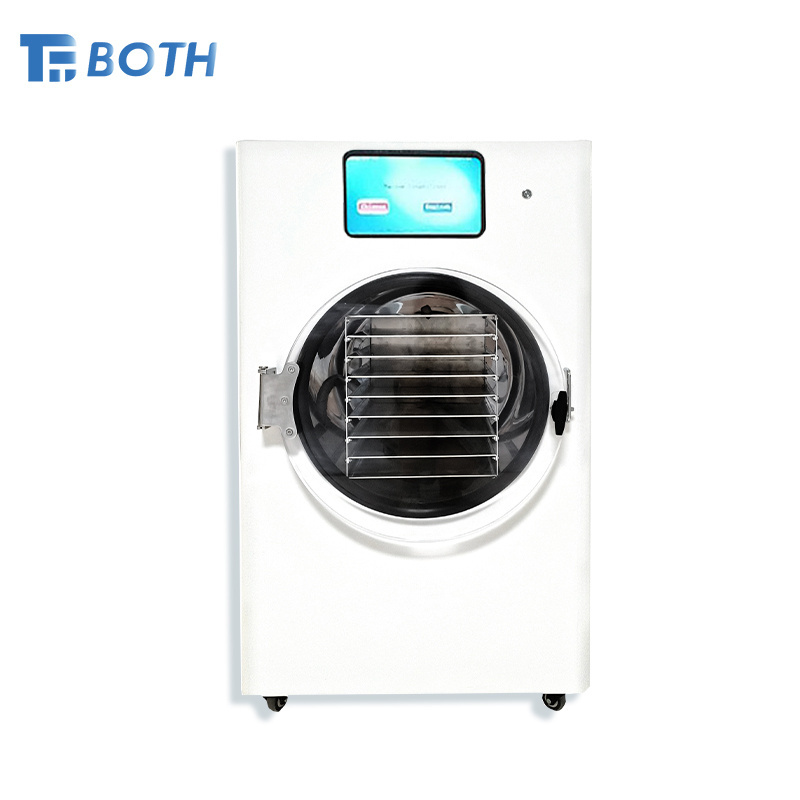

Freeze Dryer/lyophilizer
-
Function:
-
High Efficiency Drying
-
Usage:
-
Food Used
-
Freeze-dried Area:
-
0.1-1.5 m²
-
Cold Trap Coil Temperature:
-
-35℃/-60℃/-70℃ (no-load)
-
Layer Spacing:
-
45mm/50mm
-
Handling Capacity:
-
1-20KG / batch
-
Color:
-
White Black
-
Heating source:
-
Electricity
-
Package:
-
Wooden Case
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
1-20
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BOTH
-
Voltage:
-
110V/220V
-
Power:
-
750W,1100W,2300W
-
Dimension(L*W*H):
-
700mm x 800mm x 1300mm
-
Weight (KG):
-
120
-
Marketing Type:
-
New Product 2022
-
Evaporation Capacity(kg/h):
-
1-2/4-6/6-8
-
Product name:
-
Freeze Dryer/lyophilizer
-
Function:
-
High Efficiency Drying
-
Usage:
-
Food Used
-
Freeze-dried Area:
-
0.1-1.5 m²
-
Cold Trap Coil Temperature:
-
-35℃/-60℃/-70℃ (no-load)
-
Layer Spacing:
-
45mm/50mm
-
Handling Capacity:
-
1-20KG / batch
-
Color:
-
White Black
-
Heating source:
-
Electricity
-
Package:
-
Wooden Case
Products Description
Product Parameter
|
Model
|
HFD-1
|
HFD-4
|
HFD-6
|
HFD-8
|
|||
|
Freeze-dried Area(M2)
|
0.1M2
|
0.4M2
|
0.6M2
|
0.8M2
|
|||
|
Handling Capacity(Kg/Batch)
|
1~2Kg/Batch
|
4~6Kg/Batch
|
6~8Kg/Batch
|
8~10Kg/Batch
|
|||
|
Cold Trap Temperature(℃)
|
＜-35℃（No-load）
|
＜-35℃（No-load）
|
＜-35℃（No-load）
|
＜-35℃（No-load）
|
|||
|
Maximum Ice Capacity/Water Catch(Kg)
|
1.5Kg
|
4.0Kg
|
6.0kg
|
8.0kg
|
|||
|
Layer Spacing(mm)
|
40mm
|
45mm
|
65mm
|
45mm
|
|||
|
Tray Size(mm)
|
140mm*278mm*20mm 3Pcs
|
200mm*420mm*20mm 4Pcs
|
430*315*30mm 4mmPcs
|
430mm*315*30mm 6Pcs
|
|||
|
Ultimate Vacuum（Pa）
|
15pa（No-load）
|
|
|
|
|||
|
Vacuum Pump Type
|
2XZ-2
|
2XZ-2
|
2XZ-4
|
2XZ-4
|
|||
|
Pumping Speed(L/S)
|
2L/S
|
2L/S
|
4L/S
|
4L/S
|
|||
|
Noise(dB)
|
63dB
|
63dB
|
64dB
|
64dB
|
|||
|
Power(W)
|
1100W
|
1550W
|
2000W
|
2300W
|
|||
|
Power Supply
|
220V/50HZ or Custom
|
|
|
|
|||
|
Weight(Kg)
|
50Kg
|
84Kg
|
120Kg
|
125Kg
|
|||
|
Dimension(mm)
|
400*550*700mm
|
500*640*900mm
|
640*680*1180mm
|
640*680*1180mm
|
|||
|
Model
|
HFD-10
|
HFD-15
|
HFD-4 PLUS
|
HFD-6 PLUS
|
|||
|
Freeze-dried Area(M2)
|
1M2
|
1.5M2
|
0.4M2
|
0.6M2
|
|||
|
Handling Capacity(Kg/Batch)
|
10~12Kg/Batch
|
15~20Kg/Batch
|
4~6Kg/Batch
|
6~8Kg/Batch
|
|||
|
Cold Trap Temperature(℃)
|
＜-35℃（No-load）
|
＜-60℃（No-load）
|
＜-70℃（No-load）
|
＜-70℃（No-load）
|
|||
|
Maximum Ice Capacity/Water Catch(Kg)
|
10.0kg
|
15kg
|
4.9Kg
|
6.0kg
|
|||
|
Layer Spacing(mm)
|
35mm
|
42mm
|
45mm
|
65mm
|
|||
|
Tray Size(mm)
|
430mm*265*25mm 8Pcs
|
780*265*30mm
7Pcs
|
200mm*450mm*20mm 4Pcs
|
430mm*315*30mm 4Pcs
|
|||
|
Ultimate Vacuum（Pa）
|
15pa（No-load）
|
|
|
|
|||
|
Vacuum Pump Type
|
2XZ-4
|
2XZ-4
|
2XZ-2
|
2XZ-4
|
|||
|
Pumping Speed(L/S)
|
4L/S
|
4L/S
|
2L/S
|
4L/S
|
|||
|
Noise(dB)
|
64dB
|
64dB
|
63dB
|
64dB
|
|||
|
Power(W)
|
2500W
|
2800W
|
1650W
|
2400W
|
|||
|
Power Supply
|
220V/50HZ or Custom
|
|
|
|
|||
|
Weight(Kg)
|
130Kg
|
185kg
|
90Kg
|
140Kg
|
|||
|
Dimension(mm)
|
640*680*1180mm
|
680mm*990mm*1180mm
|
600*640*900mm
|
640*770*1180mm
|
|||
