Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huatong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600x1700x2560mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
HS Code of brick making machine:
-
8474809090
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
3000 pcs/8hours, 500-800 Pallets
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huatong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600x1700x2560mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
HS Code of brick making machine:
-
8474809090
-
Certification:
-
ISO9001
QTJ4-30 Brick Making Machine
QTJ4-30 Brick Making Machine is composed of HT350 Mixing Machine,Belt conveyor,concrete store hopper,block making machine and control Panel and mould.QTJ4-30 can produce hollow block,solid block and paving block by changing mould.
This machine is good choice for new starter in brick making project.
Technical Parameter:
|
Dimension |
3600x1700x2560mm |
|
Weight |
3000KGS |
|
Pallet Size |
850X480X25mm |
|
Power |
11.25KW |
|
Mode of Vibration |
Table Vibration |
|
Vibration Frequency |
4200r/min |
|
Cycle Time |
20-35sec |
Production Capacity :
|
Block Type |
Size( L x W x H) |
Pcs./Pallet |
Pcs./Hour |
Pcs./8 Hours |
|
Hollow Block |
390x190x190mm |
4 |
400 |
3200 |
|
Hollow Block |
390x150x190mm |
5 |
500 |
4000 |
|
Stock Brick |
220x110x70mm |
18 |
1800 |
14400 |
|
Paving Block |
200x100x60mm |
14 |
1400 |
11200 |
|
Paving Block |
225x112.5x60mm |
12 |
1200 |
9600 |

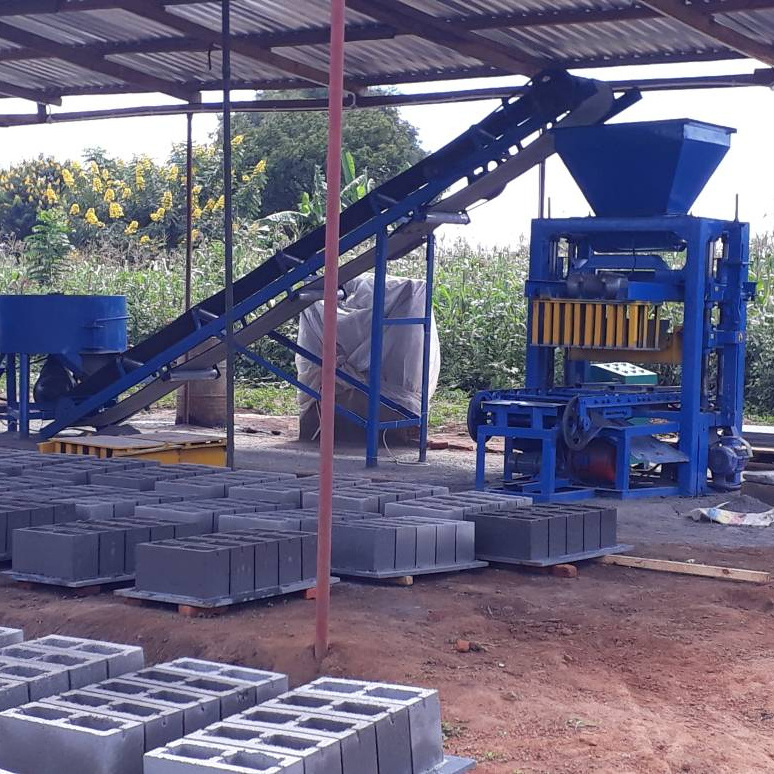

Working Site of QTJ4-30 Brick Making Machine:
