Quick Details
-
Network:
-
RF
-
Type:
-
infrared beam sensor
-
Material:
-
ABS Plastic
-
Warranty:
-
1 Year
-
Application:
-
Fence
-
Quantity of beam:
-
2 beams
-
Indoor:
-
30 m/60m/100m
-
Outdoor:
-
90m/180m/300m
-
Power Supply:
-
DC12V
-
OEM/ODM Service:
-
Yes
-
Item:
-
infrared beam sensor for perimeter wall
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HEYI
-
Model Number:
-
HY-ABS610
-
Network:
-
RF
-
Type:
-
infrared beam sensor
-
Material:
-
ABS Plastic
-
Warranty:
-
1 Year
-
Application:
-
Fence
-
Quantity of beam:
-
2 beams
-
Indoor:
-
30 m/60m/100m
-
Outdoor:
-
90m/180m/300m
-
Power Supply:
-
DC12V
-
OEM/ODM Service:
-
Yes
-
Item:
-
infrared beam sensor for perimeter wall
Product Description

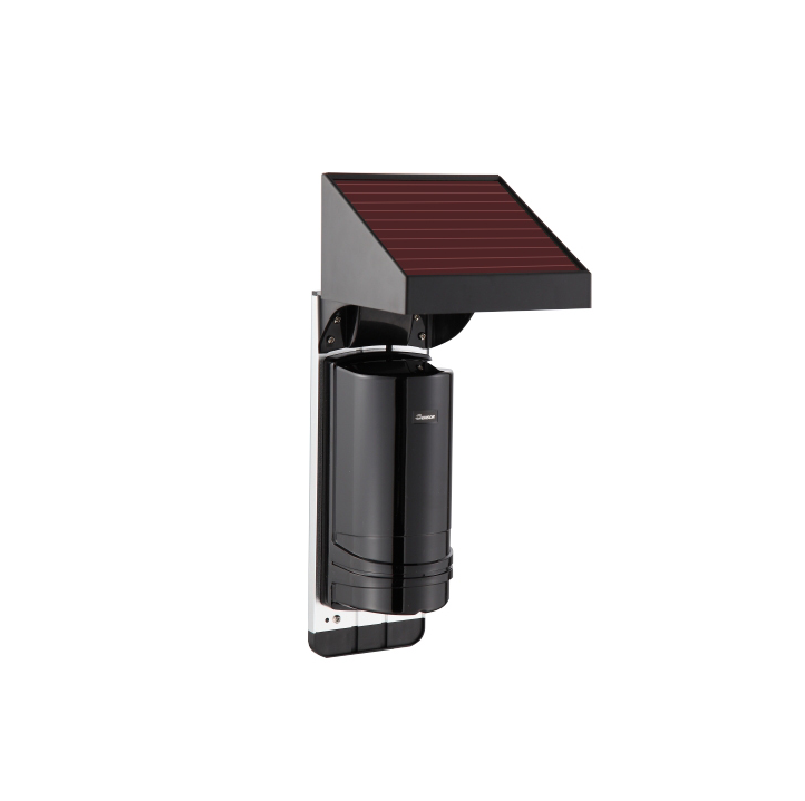

Wireless outdoor solar beams 2 active infrared beam sensor for perimeter wall home security alarm ABS610
|
Item
|
HY-ABS610
|
|
Color
|
White
|
|
Material
|
ABS Plastic
|
|
Application
|
Indoor usage, for house, office, hospital, apartment..etc
|
|
Alert distance
|
Indoor 30 m/60m/100m
Outdoor 90m/180m/300m |
|
Quantity of beam
|
2 beams
|
|
Detection mode
|
2 beams blocked simultaneous
|
|
Optical source
|
Infrared digital pulse beam
|
|
Response speed
|
100msec
|
|
Alarm output
|
Relay contact output : NO/NC
contact rating: DC 30V 0.5Amax |
|
Maximum alarm times
in 24 hours |
≤50 times/ Day
|
|
Operating Voltage
|
3.2V
|
|
Power supply
|
DC12V
|
|
Sratic Operating Current
|
Transmiting Terminal≤0.5mA,Receiving Terminal≤0.3mA
|
|
Solar electric panel
|
output current ≥2mA at a lightintensity of 1800LX
(Note : The outdorlight intensity in cloudy orrainy days is about200LX) |
|
Wereless Tasmiting
Frequency |
FM433MHZ,315MHz, can be customize other Frequency
|
|
Battery Capacity
|
500mAh(Transmiting Terminal)
1000mAh(Receiving Terminal) |
|
Battery Type
|
Rechargeable lithium battery
|
|
Working environment temperature range
|
-25°C~+65°C
|
|
Optical axis adjustment (H)
|
180° (士90° )
|
|
Optical axis adjustment (V)
|
20° ( 土90° )
|
Brief Instruction
Solar-powered Two-beam wireless Detector is a
new environment-friendly
products technology product.
It uses
solar energy
to charge & work, and use
wireless signal transmission
to achieve the transmission of alarm signals.It is a truly wireless power and wireless signal product. It is primarily suited to
safety precaution of perimeter walls
.
Packing&Shipping
|
Payments
|
TT, Palpal, D/P, D/A, L/C, etc..
|
|
|
|
|||
|
Delivery method
|
DHL/UPS/FedEx/TNT/EMS/By Sea/By Train/Send to your forwarder or agent in China
|
|
|
|
|||
|
Delivery time
|
within 1-3 working days for sample order
within 15-30 working days for big order (such as 1000 kits)
|
|
|
|
|||
|
Customized
|
OEM&OEM are acceptable
Including: Logo/Language/Packing Box/App, etc..
|
|
|
|
|||
Certifications
Company Introduction
HEYI is a high-tech enterprise which is specializing in R&D, manufacturing and marketing of Alarm system, wireless detector and wired detector, with dozens of technical patents.
Since 2012, HEYI developed from the start-up business to set up operation team and to complete the series of products. Now HEYI has its own R&D Dept., Manufacturing Dept., Sales Dept., becoming a well-known and leading company of the industry.
FAQ
1.What is the battery life of the Motion Sensor?
The Motion Sensor has an approximate battery life of 12 months. You will receive a notification immediately when a sensor has low battery life. In addition, you will receive notifications via the app every day until the battery is replaced.
2.Can I mount the Motion Sensor outdoors?
The Motion Sensor is not weatherproof, so it should be mounted indoors in a dry location. If you are interested in outdoor home security protection, check out our outdoor solar pet immunity PIR.
3.What is the field of view of the Motion Sensor?
The Motion Sensor has a field of view of approximately 110 degrees.
4.Warranty?
Normally,the warranty is two years.
5.Why choose us?
As the professional manufacturer in security home alarm system with 15 years experience, we developed series of alarm system with high quality and competitive price.
We have R&D capability and professional&efficient team, customized service and OEM/ODM are welcomed. We will try our best to satisfy you.
6.Are your samples free or need cost?
We will charge for the samples first, the sample charge can be returned after official order placed.
7.How can I get your samples home security alarm system?
You're welcomed to contact us for checking.
8.What is the lead time?
Sample needs 1-3 working days, mass production needs 10-25 working days for order less than 500pcs.
9.What certificate your products have?
CE, RoHS, FCC certificate.
10.If products have problem or don’t work,what can we do?
First please ready manual, there have many indication on it, if you can not solve the problem after reading. You can contact sales to answer your all problem.
11.Where is your market?
Our product is popular in Europe, Asia, South American, etc. Hope you can join us and make mutual benefits through our cooperation.
12.What's your Payment method supported?
We accept T/T, Paypal, Western Union, L/C,Assurance Trade order.
13.Where is your factory locate? How can I visit there?
Our factory locates in Quanzhou, China, near XIAMEN city. We are warmly welcome you to visit our factory.
14.Do you have any MOQ limit?
Without any OEM/ODM requirement, the MOQ is one piece.
15.How is your after-sale service?
Our 24H/7 after sales service team will respond your technical support within 24 hours.
16.Does your alarm panel have built-in backup battery?
Yes, all HEYI alarm panel have built-in backup battery, can standby at least 8 hours.
17.Where Can I download the APP?
Our APP called "SMARTALARM", you can search it on APP Store /Google Play to download IOS APP/Android APP.
18.Does your system can inform me if some door/window open when I arm the system?
Yes, all HEYI alarm system support inform users which door/window open, then users can check and close it.
