Quick Details
-
Color:
-
full color, Full Color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
Fujian, China
-
Brightness:
-
>10000cd/㎡, >10000cd/㎡
-
pixel density:
-
10000Dots/㎡, 10000Dots/㎡
-
Color Depth:
-
12-14bits, 12-14bits
-
Lifespan (hours):
-
100000hours, 100000hours
-
Resolution:
-
32*16 pixel
-
View Angle（H/V）:
-
H: 140, V: 130, H: 140, V: 130
-
LED chip:
-
SMD3535
-
Scan mode:
-
1/2 scan, 1/4 scan, 1/8 scan
-
Refresh rate:
-
1920Hz
-
Installation Way:
-
magnet
-
Usage:
-
advertising publish, retail store, shopping mall, education etc.
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
Neutral
-
Color:
-
full color, Full Color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
Fujian, China
-
Brightness:
-
>10000cd/㎡, >10000cd/㎡
-
pixel density:
-
10000Dots/㎡, 10000Dots/㎡
-
Color Depth:
-
12-14bits, 12-14bits
-
Lifespan (hours):
-
100000hours, 100000hours
-
Resolution:
-
32*16 pixel
-
View Angle（H/V）:
-
H: 140, V: 130, H: 140, V: 130
-
LED chip:
-
SMD3535
-
Scan mode:
-
1/2 scan, 1/4 scan, 1/8 scan
-
Refresh rate:
-
1920Hz
-
Installation Way:
-
magnet
-
Usage:
-
advertising publish, retail store, shopping mall, education etc.
Products Description
Product Features
● High quality lamp, high efficiency lamp brightness utilization rate, while ensuring the service life of the lamp and high-quality plastic parts.
● High contrast for good display.
● Weight is easy to install and remove.
● Single point, single lamp maintenance, low cost.
● PWM driver chip drive LED, the product display effect is good .
● It is equipped with waterproof rubber ring and mask to ensure that the outdoor display is safe when it is attacked by rain outdoors.
● Weight is easy to install and remove.
● Single point, single lamp maintenance, low cost.
● PWM driver chip drive LED, the product display effect is good .
● It is equipped with waterproof rubber ring and mask to ensure that the outdoor display is safe when it is attacked by rain outdoors.
Product Specification
|

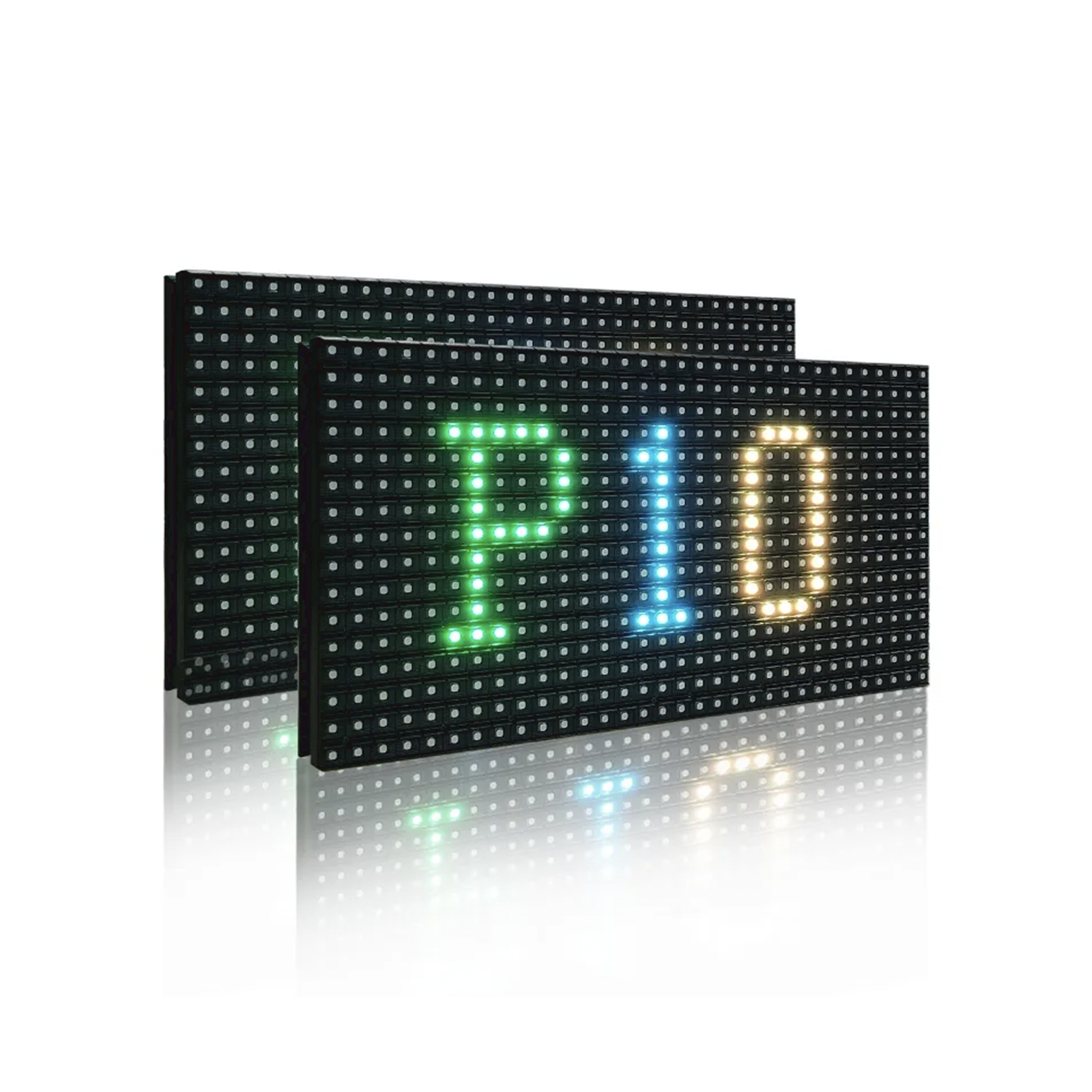

Module Specification
|
|
|
|
|||
|
Pitch
|
10mm
|
|
|
|||
|
Size
|
320*160mm
|
|
|
|||
|
Module Resolution
|
32*16 pixel
|
|
|
|||
|
Density
|
10000Dots/㎡
|
|
|
|||
|
LED Lamps
|
SMD3535
|
|
|
|||
|
Driver Mode
|
1/2 scan, 1/4 scan, 1/8 scan
|
|
|
|||
|
Modules Refresh
|
1920Hz
|
|
|
|||
|
Electricity Parameter
|
|
|
|
|||
|
Brightness
|
>10000cd/㎡
|
|
|
|||
|
View Angle
|
140 degree (horizontal) , 130 degree (vertical)
|
|
|
|||
|
View Distance
|
≥10m
|
|
|
|||
|
Gray Scale
|
12-14bits
|
|
|
|||
|
Display Color
|
1R1G1B
|
|
|
|||
|
Power Supply
|
|
|
|
|||
|
Input Voltage
|
4.5±0.1V
|
|
|
|||
|
Max current
|
≤9.85A
|
|
|
|||
|
Max power consumption
|
≤857W/㎡
|
|
|
|||
|
Input signal
|
DVI/VGA/HDMI/DP、composite video signal、S-VIDEO、YpbPr (HDTV)
|
|
|
|||
|
Reliability
|
|
|
|
|||
|
Working temperature
|
-10~40 ℃
|
|
|
|||
|
Working humidity
|
10~90% RH
|
|
|
|||
|
Operating Life
|
≥100,000 hours
|
|
|
|||
|
MTBF
|
≥10,000 hours
|
|
|
|||
|
Protection feature
|
over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional)
|
|
|
|||
Applications
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports ,construction, education system and other public places.
Product packaging
1.The led display modules are packed in cartons.
2.The cabinets of fixed led screen packed in wooden case.
3.The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
