Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NIE-TECH
-
Power supply:
-
DC 5V (USB bus powered)
-
Host Interface:
-
USB A-Type Plug
-
USB Compliance:
-
USB 2.0 specification
-
LED Indicator:
-
R/G/B*1
-
Data Rate:
-
9.6kbps/ 40kbps
-
Range:
-
Mini 30m line of sight
-
Operation Temp:
-
0℃~40℃
-
Plastic color:
-
black / white
-
Product name:
-
Z-stick Smart Controller USB dongle to create gateway
-
Function:
-
Smart Home Automation
Quick Details
-
Chipset:
-
500
-
Application:
-
PC controller
-
Model Number:
-
ZW49
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NIE-TECH
-
Power supply:
-
DC 5V (USB bus powered)
-
Host Interface:
-
USB A-Type Plug
-
USB Compliance:
-
USB 2.0 specification
-
LED Indicator:
-
R/G/B*1
-
Data Rate:
-
9.6kbps/ 40kbps
-
Range:
-
Mini 30m line of sight
-
Operation Temp:
-
0℃~40℃
-
Plastic color:
-
black / white
-
Product name:
-
Z-stick Smart Controller USB dongle to create gateway
-
Function:
-
Smart Home Automation
Introduction

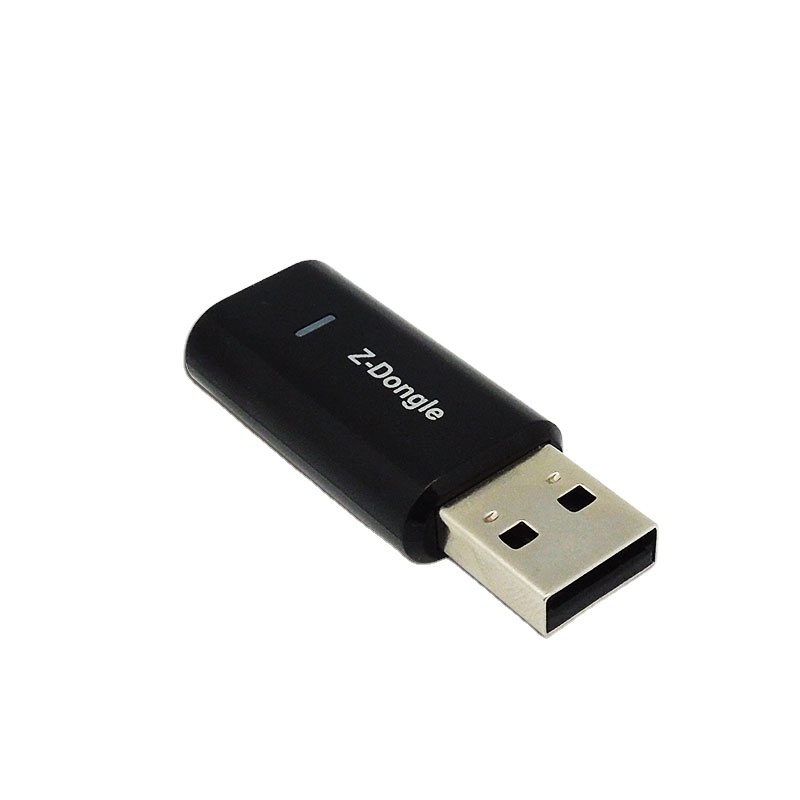

The Z-Wave USB Dongle is a Z-Wave enabled communication device. When plugged into a STB/Gateway user can easily get control of each and every Z-Wave device connected in the network through this dongle according to Z-Wave protocol. The installation is easy and simple, save time and effort.
This is a HARDWARE only. You may need a certain z-wave software to create a controlling device .
Technical data
*Power DC 5V (USB bus powered)
*Host Interface USB A-Type Plug
*USB Compliance Compliant with USB 2.0 specification.
*LED Indicator R/G/B*1
*Protocol ZM5101
*Data Rate 9.6kbps/ 40kbps
*Range: Mini 30m line of sight
*Application Indoor use
*Operation Temp: 0~40degree
*Plastic color: black / white
*Frequency 908.42MHz/868.42MHz/921.42MHz/869.0MHz
Installation
Connect with computer / Gateway / Smart box / Smart TV
Hardware Specification
Safety and maintenance instruction
- Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
- Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
- Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
- Keep all parts away from young children’s reach.
- Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
- Avoid dropping or shocks, this can damage the electronic boards.
- Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
- Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
