Quick Details
-
Brand Name:
-
GL
-
Model Number:
-
ACSR, ACSR
-
fiber count:
-
18
-
temperature( installation ):
-
-10 to +70° C
-
Quality:
-
ISO9001
-
Center strength member:
-
FRP
-
Span:
-
100-150
-
Fiber Type:
-
G652D
-
diameter:
-
11.0mm-12.0mm
Quick Details
-
Application:
-
Telecommunication
-
Conductor Material:
-
Aluminum
-
Place of Origin:
-
Hunan, China, Hunan, China (Mainland)
-
Brand Name:
-
GL
-
Model Number:
-
ACSR, ACSR
-
fiber count:
-
18
-
temperature( installation ):
-
-10 to +70° C
-
Quality:
-
ISO9001
-
Center strength member:
-
FRP
-
Span:
-
100-150
-
Fiber Type:
-
G652D
-
diameter:
-
11.0mm-12.0mm
Products Description
Application
Features
Use in aerial bundled conductor (ABC) systems for city power grid transmission line.
Operating voltage up to 600/1000 volts.
Main for overhead single-phase and three-phase electricity distribution and other purposes.
Stable working temperature -10°C to 80°C
Economical - Good electricity property and cheaper than cooper cables.Flexible - easy to install and work with distributions and other applications.Safe - prevent electric short circuit and potential risk of fire.Durable - anti UV Radiation and moisture, Corrosion Resistance.Aesthetically pleasing - Good finishing is guaranteed.Adaptable - physical properties and electricity suits Africa environment and market.
Specifications
|

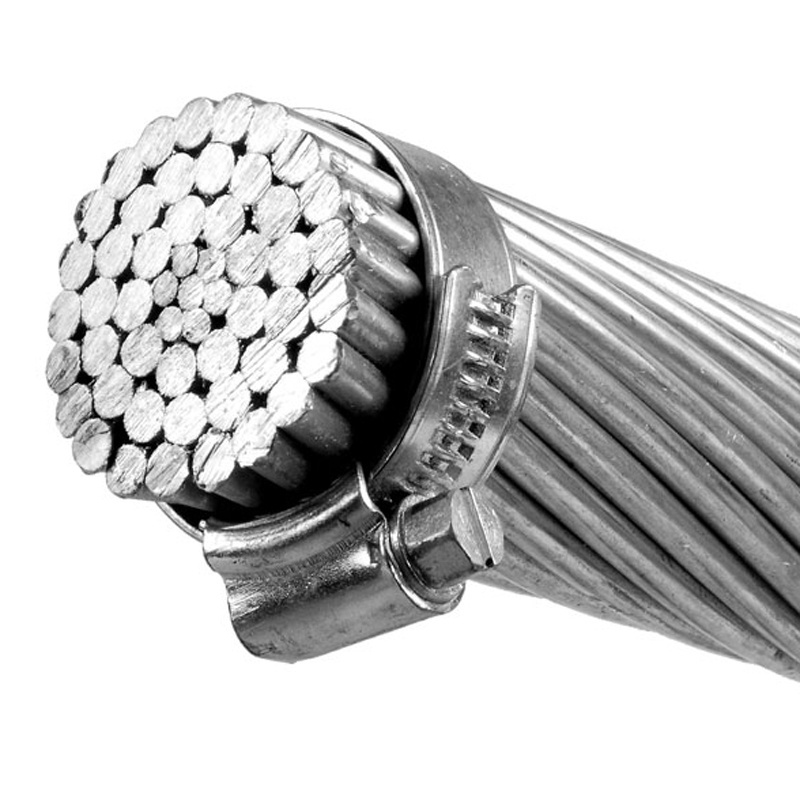

Conductor Technical Structure
|
|
|
Unit
|
Value
|
||
|
Structure |
|
Center: steel wire
|
Nos./mm |
1/2.0
|
||
|
|
|
Layer 1:steel wire
|
|
6/2.0
|
||
|
|
|
Layer 2: Aluminum wire
|
|
10/2.57
|
||
|
|
|
Layer 3: Aluminum wire
|
|
16/2.57
|
||
|
Standard
|
|
|
/
|
GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
|
||
|
Stranding direction of outer layer
|
|
|
Direction
|
Right-hand
|
||
|
Conductor diameter
|
|
|
mm
|
16.28±1％
|
||
|
Cross section
|
|
|
mm2
|
156.8±1％
|
||
|
Conductor weight
|
|
|
kg/km
|
547.8±1％
|
||
|
Rated tensile strength
|
|
|
kN
|
52
|
||
|
Modulus of Elasticity
|
|
|
GPa
|
73.9
|
||
|
Coefficient of linear expansion
|
|
|
10-6/℃
|
18.9
|
||
|
Max. DC Resistance at 20℃
|
|
|
Ohm/ft
|
0.637
|
||
|
Lay ratio |
Aluminum layer
|
|
times |
16-wire layer 10-14
10-wire layer 10-16 |
||
|
|
Steel layer
|
|
6-wire layer 18-30
|
|
||
|
Properties of Aluminum Wire (Before Stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.57±0.03
|
|
Min. tensile strength
|
MPa
|
175
|
|
Min. elongation at 250mm
|
%
|
1.7
|
|
Max. resistivity at 20℃
|
Ω·mm2/m
|
0.028172
|
|
Properties of Steel wire (Before stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.0±0.02
|
|
Min. tensile strength
|
MPa
|
1410
|
|
Min. tension at 1% elongation
|
MPa
|
1280
|
|
Min elongation at 250 mm
|
%
|
3.5
|
|
Class of zinc coating
|
/
|
Class A
|
|
Zinc coating quality
|
g /mm²
|
230
|
|
Conductor diameter
|
MM
|
6.0
|
|
Rated tensile strength
|
KN
|
/
|
packaging
Packaging & Shipping
Packing : Steel wooden drum (fumigation) Cable length in each drum: 1000m/2000m or as per actual cable length
requirements. Drum size: As per cable length and container size *In order to quote you accurate price, kindly tell us your needed
cable length quantity. Larger quantity, more discount benefit ready for you! Shipping Port:Tianjin, Qingdao, or other ports as per
your requireents. Sea freight:FOB/C&F/CIF quotation are all available. *For some countries such as Africa countries, middle east
countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
requirements. Drum size: As per cable length and container size *In order to quote you accurate price, kindly tell us your needed
cable length quantity. Larger quantity, more discount benefit ready for you! Shipping Port:Tianjin, Qingdao, or other ports as per
your requireents. Sea freight:FOB/C&F/CIF quotation are all available. *For some countries such as Africa countries, middle east
countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
