Quick Details
-
Model Number:
-
CS-424A1
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000 Cycles
-
Product name:
-
marin switch panel switch
-
Material:
-
ABS
-
Color:
-
Black
-
Certificate:
-
Ce Rosh Fcc
-
Keyword:
-
Touch Electrical Switch
-
Application:
-
Marine/ Boat/ Caravan
-
Feature:
-
Exquisite
-
Type:
-
Touch Screen
-
Current:
-
15A
-
Warranty:
-
One Year
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
DC12/24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-424A1
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000 Cycles
-
Product name:
-
marin switch panel switch
-
Material:
-
ABS
-
Color:
-
Black
-
Certificate:
-
Ce Rosh Fcc
-
Keyword:
-
Touch Electrical Switch
-
Application:
-
Marine/ Boat/ Caravan
-
Feature:
-
Exquisite
-
Type:
-
Touch Screen
-
Current:
-
15A
-
Warranty:
-
One Year
-
Certification:
-
CE
Products Description
Environmental Requirements Working temperature:
- 10 ° C ~ + 50 ° C; Storage temperature: - 20 ° C ~ + 60 ° C; Working humidity: 35 ~ 85% RH; Storage humidity: 5 ~ 95% RH [maximum power]:
960W
[input voltage]: dc12v-24v [protection grade]: IP66
[relevant certificate]: CE / RoHS / UL
Product Use:It can be used as headlamp switch, fog lamp switch, vision lamp switch, car refrigerator switch, car vacuum cleaner switch, etc
Installation Scope:
It is applicable to the installation and use of high-end large-scale transport tools such as ships, yachts, RV and buses
Product Advantages :

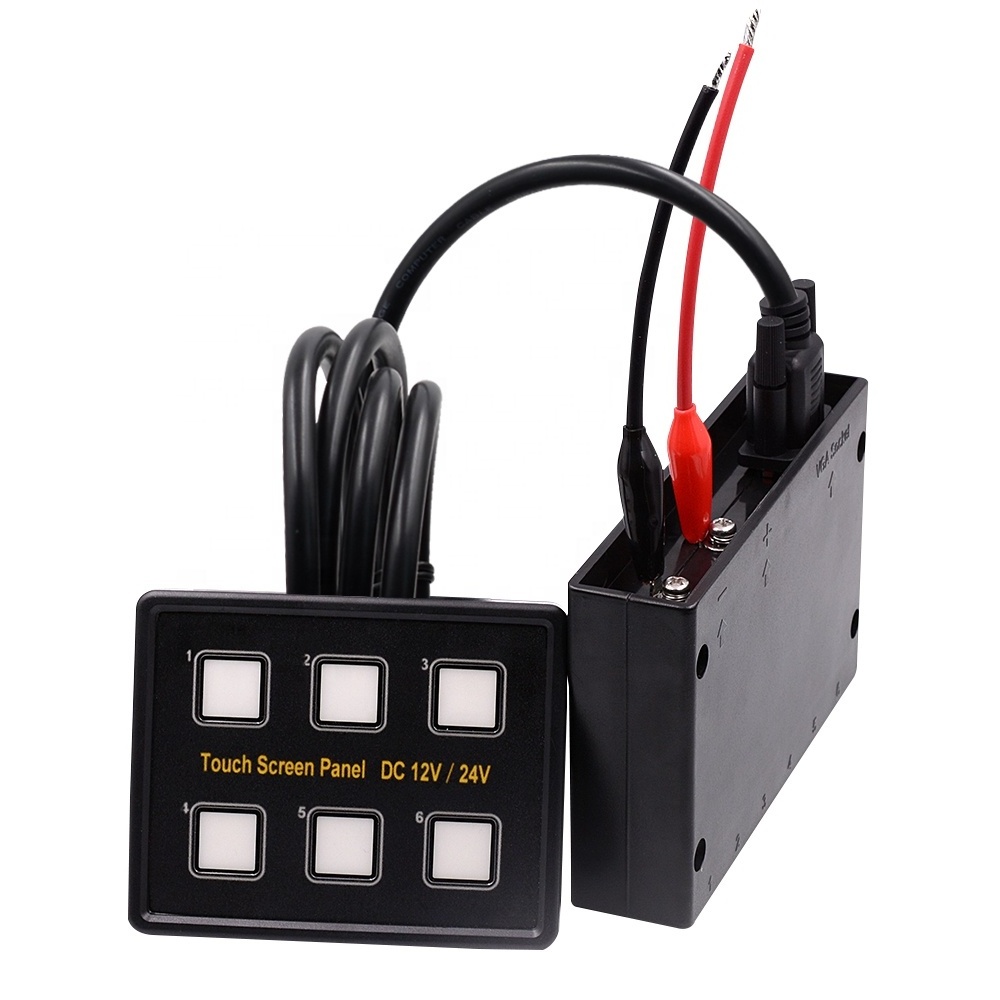

*The product is a 6-position switch panel, including 6 switches, which can control the switch status of 6 consumers at the same time
*The input voltage of the product is 12-24V, and 12-24V can be installed and used on all ships and vehicles, with a wide range of applications
*The products are ABS, PC and PBT high and low temperature resistant, flame retardant and environmental friendly materials, which can be used in the environment with the lowest temperature of - 25 ° and the highest temperature of 80 ° *The product is equipped with a self-healing fuse. When the input current exceeds the maximum input current, it will automatically cut off the power, and will not cause any damage to the electric appliance. The correct voltage and current can be re connected and the normal operation can be restored
|
Product Name
|
6-bit touch combination panel
|
|
Product Model
|
CS-424A1
|
|
Net Weight
|
429G
|
|
Gross Weight
|
513G
|
|
Product Size
|
Host: 13.5cm * 8.5cm * 3.5cm
|
|
|
Panel: 10cm * 8cm * 2.5cm
|
|
Opening Size
|
4.8cm*1.8cm
|
|
Product Material
|
ABS, PC, PCB, PVC high and low temperature resistant, flame retardant and environmental friendly materials
|
|
Light Color
|
On: Blue off: white
|
|
Product Color
|
black
|
