AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
380V / 220V or as required
-
Dimension(L*W*H):
-
6800*800*1500mm
-
Weight:
-
2800 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Gutter Roll Forming Machine
-
Raw material:
-
Galvanized Coil
-
Application:
-
Building Construction
-
Main frame:
-
350mm/400mm H-Beam
-
Cutting blade material:
-
Cr 12 Mov
-
Roller material:
-
45#steel Chrome Plated
-
Roller stations:
-
18 Stations
-
Control system:
-
PLC
-
Shaft material:
-
High Grade No.45 Forged
-
Decoiler:
-
Manual Decoiler
Quick Details
-
Type:
-
Rain Gutter Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
20M/MIN
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
380V / 220V or as required
-
Dimension(L*W*H):
-
6800*800*1500mm
-
Weight:
-
2800 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Gutter Roll Forming Machine
-
Raw material:
-
Galvanized Coil
-
Application:
-
Building Construction
-
Main frame:
-
350mm/400mm H-Beam
-
Cutting blade material:
-
Cr 12 Mov
-
Roller material:
-
45#steel Chrome Plated
-
Roller stations:
-
18 Stations
-
Control system:
-
PLC
-
Shaft material:
-
High Grade No.45 Forged
-
Decoiler:
-
Manual Decoiler
Products Overview

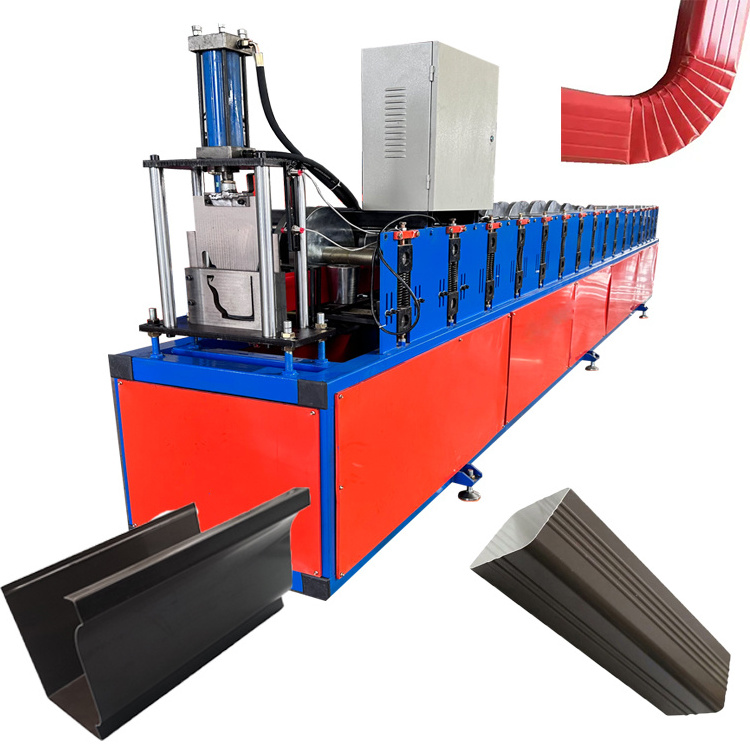

Down Pipe Making Machine Rainspout Pipe Steel Rain Gutter Roll Forming Downpipe Roll Forming Machine
The gutter machine can use color steel or aluminum plate to make the gutter plate. The forming plate is rolled, closed, and then bent and narrowed by special equipment. It has good weather resistance, simple design, simple installation, safe and durable, and noble. Elegant. The gutter board can be sprayed with rich colors according to the individual needs of users, and its metal texture and beautiful shape can bring a strong expressive force to the building.
1. The whole machine is controlled by PLC, and multiple safety protections can be set to effectively avoid accidents;
2. The bed is made of steel plate welded parts and tempered to effectively eliminate internal stress and the body is not easy to deform;
3. The forming frame is welded by channel steel;
4. The roll shaft is made of 45# steel, which has been quenched and tempered;
5. The material of forming punching and shearing die is Gr12;
Rain Gutter Roll Forming Machine is made by cold-formed forming process. It is widely used by people for its energy-saving and environmentally friendly features. It uses less steel to complete the required specified load, and no longer depends on increasing the amount of plates or materials. The mechanical properties of the steel can meet the load requirements, but the mechanical properties of the steel can be improved by changing the cross-sectional shape of the steel product. Cold bending is a material-saving and energy-saving new metal forming process and new technology. Cold bending is a multi-pass forming and rolling that is arranged in sequence to continuously bend the coils and other metal plates and strips in the transverse direction. Make profiles of specific cross-sections
Specification
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
300-600 mm
|
|
2
|
Sheet effective width
|
80-200 mm
|
|
3
|
Raw material
|
Color steel sheet , Stainless steel or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
40 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
Our Advantages
Rain Gutter Roll Forming Machine
1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.
Details Images
Machine frame of
Rain Gutter Roll Forming Machine
Roll Forming Making Machine
adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
Cutting Blade of
Rain Gutter Roll Forming Machine
Roll Forming Making Machine
blade using more high precious machine making, which can make sure the tile keep good shape, more better for using.
The forming cutter of cold roll forming machine can cut raw materials of different materials.Our scissors can usually cut 0.3-0.6 mm steel plates.
Forming Roller of
Rain Gutter Roll Forming Machine
Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
PLC control part of
Rain Gutter Roll Forming Machine
Roll Forming Making Machine
control parts have different types, standard type are button control, through press buttons to
realize different function.
realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Different electric control cabinets for selection：
Product Application
Why Choose Us
WHY CHOOSE US:
♥ Over 20 years of experience.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in
Chile,Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
♥ Over 20 years of experience.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in
Chile,Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
