Quick Details
-
Dimension(L*W*H):
-
2.8*1.3*1.85m
-
Power (kW):
-
22 kW
-
Weight (KG):
-
2200 KG
-
Name:
-
Waste Tire Shredder
-
Application:
-
Rubbers Recycling Industry
-
Crushing space (mm):
-
500*480
-
Blade Dia. (mm):
-
200
-
Blade thickness:
-
20mm
-
Blade Quantity (pieces):
-
24
-
Power (Kw):
-
11*2
-
Color:
-
Customers' Demand
-
Packing:
-
wooden case
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
220V/380V, Customized
-
Dimension(L*W*H):
-
2.8*1.3*1.85m
-
Power (kW):
-
22 kW
-
Weight (KG):
-
2200 KG
-
Name:
-
Waste Tire Shredder
-
Application:
-
Rubbers Recycling Industry
-
Crushing space (mm):
-
500*480
-
Blade Dia. (mm):
-
200
-
Blade thickness:
-
20mm
-
Blade Quantity (pieces):
-
24
-
Power (Kw):
-
11*2
-
Color:
-
Customers' Demand
-
Packing:
-
wooden case

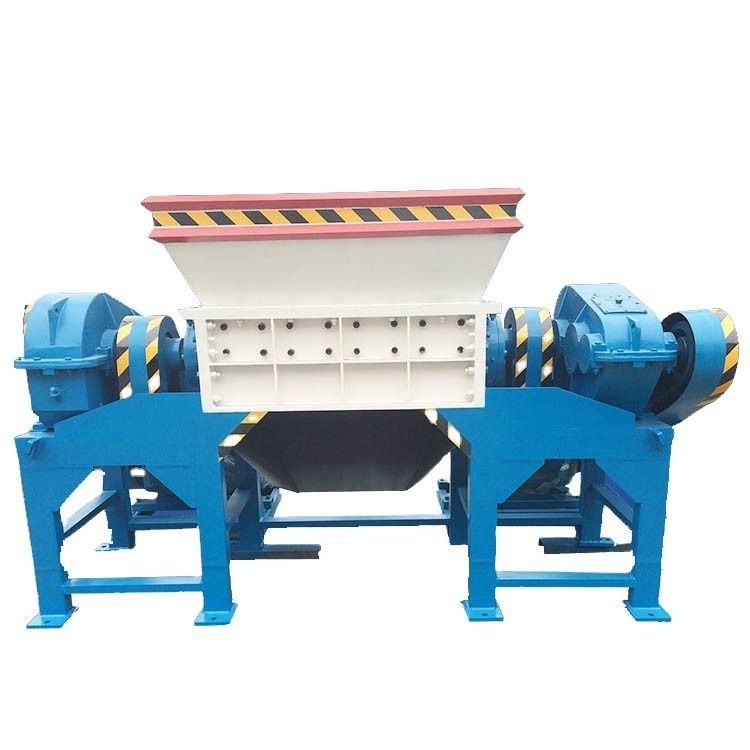

Waste Tire Shredder/ Rubber Crusher/Old Tyre Recycling Machine
Introduction
The shredder is a kind of machine used for crushing. It is usually used to deal with raw materials or leftover material to make it smaller. It is widely used in industrial waste recycling, electronic recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry, etc.It is also suitable for crushing the big solid material like television, washing machine, the shell of the refrigerator, big size pipe, pipe fittings, forklift splint, tires, packing barrel, vehicle body, aluminum, copper, and steel.
Characters
1,
This product can be broken into large pieces of material,basket material,pipe material, plate material,wood,tyre and large roll film which are difficult to be separated by single-spindle shredder.
2,
The combined structural outer frame with ultra-thick plate precision processing, the strong rotation axis of large-angle hexagonal column, the large-caliber solid input hopper, therefore, it is safe to input large materials.
3,
The unique rotary knife is designed and processed in thickness, shape and arrangement order, with strong shear force and sharp blade, which can achieve strong crushing.
4,
PLC control, when the treatment is too much, with positive and reverse operation and stop function to protect the body;
5,
Low speed operation, low noise, less dust;
6,
The tool is made of special alloy steel, which is strong and durable.
Detailed Data
|
Model |
Dimension(m) |
C rushing space (mm) |
Blade Dia. (mm) |
Blade thickness (mm) |
Blade Quantity (pieces) |
Power (Kw) |
Weight (Kg) |
|
SC500 |
2.8*1.3*1.85 |
500*480 |
200 |
20 |
24 |
11*2 |
2200 |
|
SC800 |
3*1.3*1.85 |
800*480 |
200 |
20 |
40 |
15*2 |
2500 |
|
SC1000 |
3.3*1.9*2.2 |
1000*690 |
300 |
40 |
24 |
22*2 |
5200 |
|
SC1200 |
3.6*2*2.2 |
1200*690 |
300 |
40 |
30 |
30*2 |
6400 |
|
SC1500 |
4.18*2.1*2.4 |
1500*850 |
550 |
50/75 |
30/20 |
55*2 |
9000 |
|
SC1800 |
5.8*2.4*3.3 |
1800*1206 |
550 |
50/75 |
36/24 |
75*2 |
13600 |
|
SC2000 |
6.4*2.7*3.5 |
2000*1490 |
600 |
50/75 |
40/26 |
90*2 |
20100 |
|
SC2500 |
7.5*3.2*3.8 |
2500*1800 |
600 |
75/100 |
32/24 |
110*2 |
25000 |
|
SC3000 |
8.6*3.5*4 |
3000*1800 |
600 |
75/100 |
40/30 |
160*2 |
31000 |
Note: According to different materials shredding, cutter and the number of teeth different, can be customized. This parameter only for reference.
