- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET AWP 008 009 012
-
Product name:
-

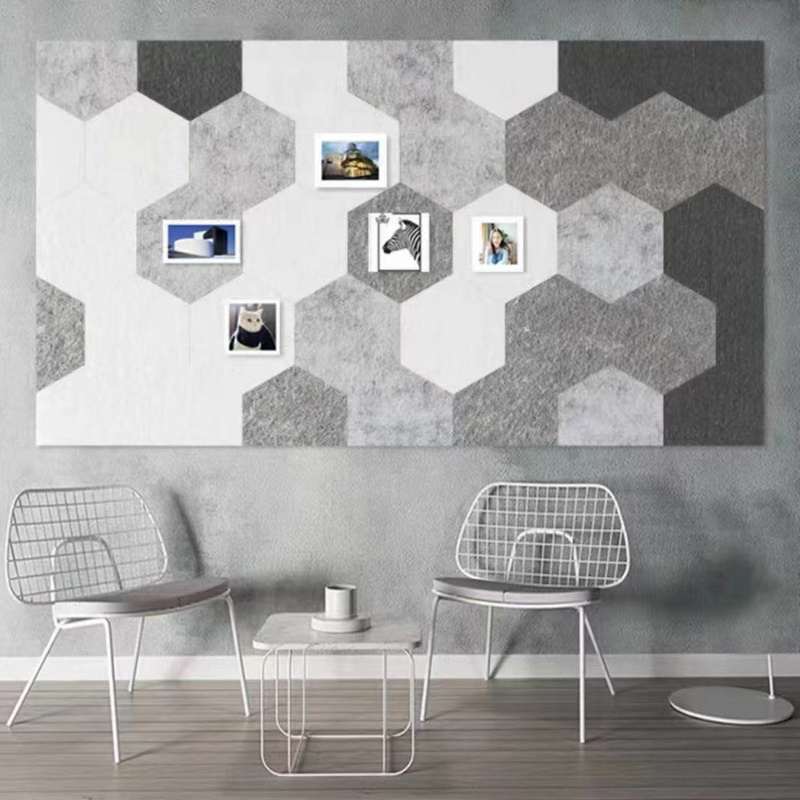

Soundproof Hexagon Polyester Acoustic Panels
-
Material:
-
100% Polyester Fiber
-
Color:
-
48 Colors
-
Density:
-
1.2kg-3.6kg/sqm
-
Size:
-
160*140*55/ 160*140*20mm
-
Feature:
-
Eco-friendly, fire retardant, easy installation
-
Certification:
-
Oeko-Tex Standard 100
-
Flame Retardant:
-
B1 Grade
-
Usage:
-
Audio Soundproof
-
OEM:
-
Accept OEM Service
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET AWP 008 009 012
-
Product name:
-
Soundproof Hexagon Polyester Acoustic Panels
-
Material:
-
100% Polyester Fiber
-
Color:
-
48 Colors
-
Density:
-
1.2kg-3.6kg/sqm
-
Size:
-
160*140*55/ 160*140*20mm
-
Feature:
-
Eco-friendly, fire retardant, easy installation
-
Certification:
-
Oeko-Tex Standard 100
-
Flame Retardant:
-
B1 Grade
-
Usage:
-
Audio Soundproof
-
OEM:
-
Accept OEM Service
PRODUCT INFORMATION
UET Polyester fiber acoustic panels is made from polyester short fiber. It is prepared by needle punching on multi folded polyester fabric sheets (arranged by carding process). The final material consists of a three dimensional network structure with breathable open cells.
UET Polyester fiber acoustic panels is a new decorative material made of 100% recycled polyester fiber with sound absorbing function. The structure is simpler and easier to cut into different shapes by machine. UET Polyester fiber acoustic panels creates a quieter space for work and life.
AVAILABLE FORMS
Polyester Acoustic Ceiling Panels; Polyester Acoustic Wall Panels.
PRODUCT SPECIFICATIONS
– Width: 1220 mm, length 2420 mm
– Thickness: 7.5 – 15 mm, 9 and 12 mm are standard
– Basic material: polyester fiber
– Angle machining chamfer
– Density: 1.3 kg/m2, etc.
– Finish: Custom (please refer to the color table)
– Thickness: 7.5 – 15 mm, 9 and 12 mm are standard
– Basic material: polyester fiber
– Angle machining chamfer
– Density: 1.3 kg/m2, etc.
– Finish: Custom (please refer to the color table)
COLOR TABLE
PHYSICAL PROPERTY DATA
| Product Name | Polyester fiber acoustic panels |
| Materials | 100% Polyester fiber |
| Size | 1220*2420mm |
| Thickness | 8mm,9mm,12mm |
| Gross Weight | 2.8kg/3 .8kg/4.0kg/5.0kg/6kg per sheet or OEM |
| MOQ | 100 sheets per color |
| Color | 48 kinds of color |
| Supply Capacity | 2000 pieces one day |
| ECO-Friendly | E0 |
| Sound Absorption Decibel | 30dB |
| Fireproof Level | B1 |
| Certificates | Class B1 and E1 Eco-friendly in Chinese |
| Acoustic A bsorption Coefficient | 0.9 |
PACKAGING
All p
olyester acoustic ceiling panels and wall panels
are packed by carton boxes
STORAGE AND TRANSPORT
Store indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
FIRE PERFORMANCE
Class B1, STN EN 13501-1: 2007, ASTM E84
WARRANTY YEARS
32 years
FEATURES AND BENEFITS
• A wide variety of colors
• Custom sizes available for any project
• Panel size and thickness range
• Cut costs with fibre acoustic panels
• Lightweight products are easy to operate
• Environmental protection; Polyester fibre panel for thermal and acoustic insulation; Earn the highest credits for Green Project
• Custom sizes available for any project
• Panel size and thickness range
• Cut costs with fibre acoustic panels
• Lightweight products are easy to operate
• Environmental protection; Polyester fibre panel for thermal and acoustic insulation; Earn the highest credits for Green Project
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Suitable for a variety of applications, such as: Internal soundproof wall, Internal acoustic ceiling.
Decorative walls and ceilings in corridors, offices, stadiums, libraries or auditoriums.
Decorative walls and ceilings in corridors, offices, stadiums, libraries or auditoriums.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
UNITED PEOPLE SERVE THE WORLD
