Quick Details
-
Voltage:
-
380 V 50 HZ 3 phase
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
longxiang brand
-
Model Number:
-
LX-D3
-
Warranty:
-
1 year, 1 Year
-
Product name:
-
Car Spray Booth
-
Usage:
-
Car Painting Baking
-
Color:
-
Customized Color
-
Heating System:
-
Electric Heating
-
Lighting System:
-
LED Light
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Filters:
-
Primary+Ceiling Filter
-
Function:
-
Emergency Stop
Quick Details
-
Power:
-
42KW
-
External Size:
-
7000*5200*3400 mm (L*W*H)
-
Internal Size:
-
6900*3900*2650 mm (L*W*H)
-
Voltage:
-
380 V 50 HZ 3 phase
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
longxiang brand
-
Model Number:
-
LX-D3
-
Warranty:
-
1 year, 1 Year
-
Product name:
-
Car Spray Booth
-
Usage:
-
Car Painting Baking
-
Color:
-
Customized Color
-
Heating System:
-
Electric Heating
-
Lighting System:
-
LED Light
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Filters:
-
Primary+Ceiling Filter
-
Function:
-
Emergency Stop

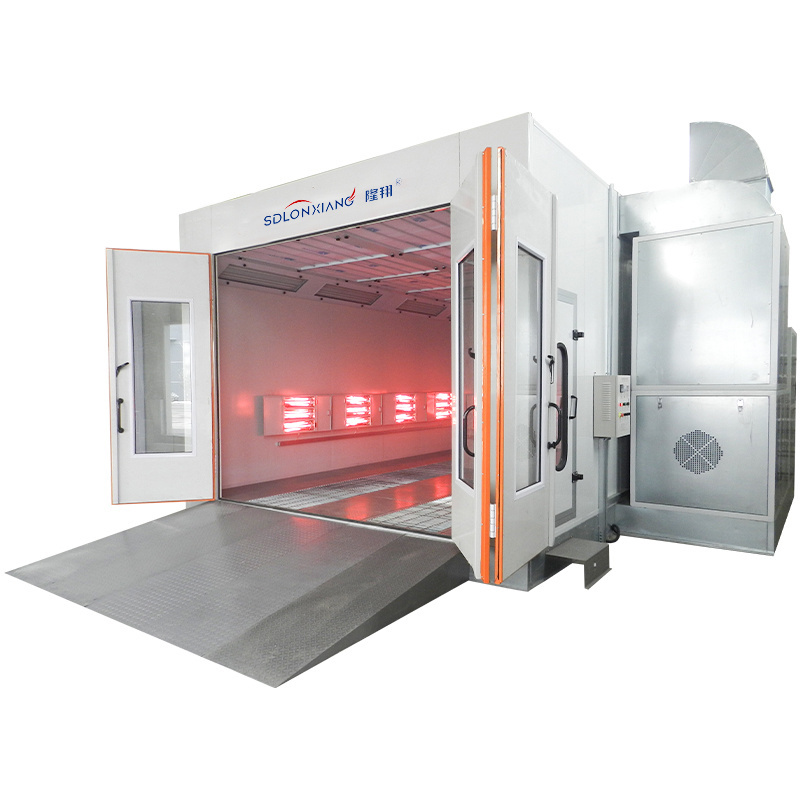

Products Description
|
LX-D3
|
|
|
|
|
||||
|
Outside size
: 7000*5200*3400 mm (L*W*H)
|
|
Inside size
: 6900*3900*2650 mm (L*W*H)
|
|
|
||||
|
Entrance door
: 3 folds，3000x2600 mm(W*H), bending steel door, aluminum hinge, tempered glass window
|
|
|
|
|
||||
|
Emergency door
: 650*2000mm(W*H),equipped with handle lock, observation window
|
|
|
|
|
||||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.4mm thick color steel plate.
-High quality galvanized steel roof panel. |
|
|
|||
|
|
Basement
|
-Galvanized steel assemble,280mm high,with steel structure support,3 rows of 30*4mm grills ,2 rows of diamond plates.
-2 ramps,external setting,620*2000mm(W*L)/pc |
|
|
|||
|
Ventilation system
|
Inlet fan
|
2*3kw double-intake centrifugal fans, Each set air capacity:10000m³/h
|
|
|
|||
|
|
Outlet fan
|
1*5.5kw double-intake centrifugal fans, model: YDW4.5S, Each set air capacity:15000m³/h
|
|
|
|||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful.
-Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit. |
|
|
|||
|
|
Airflow speed
|
On-load speed:0.35m/s,ventilation rate:280 time/h
|
|
|
|||
|
Heating system
|
Electric
|
Adopt infrared heating system, 10 sets of 3KW single door far-infrared lamp. Maximum operating temperature: 80℃, heating rate
(20-80℃) : 15-20min. |
|
|
|||
|
Lighting system
|
Ceiling lights
|
8units*4pieces*16w LED Lighting
|
|
|
|||
|
|
Side lights
|
5units*2pieces*16w LED Lighting
|
|
|
|||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
|||
|
|
Ceiling high efficient filter
|
EU5 grade high efficient filter,filtering rate＞98%
Exhaust cotton filter |
|
|
|||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
|||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
|
|
|
|||
|
Total power
|
42 KW
|
|
|
|
|||
|
Voltage/frequency
|
380 V 50 HZ 3 phase
|
|
|
|
|||
