Quick Details
-
Productivity:
-
5-7m³/H
-
Place of Origin:
-
CHANGGE CHINA
-
Brand Name:
-
LFUHANG
-
Weight:
-
90 kg
-
Dimension(L*W*H):
-
800MM*650MM*530MM
-
Marketing Type:
-
New Product 2023
-
Product Name:
-

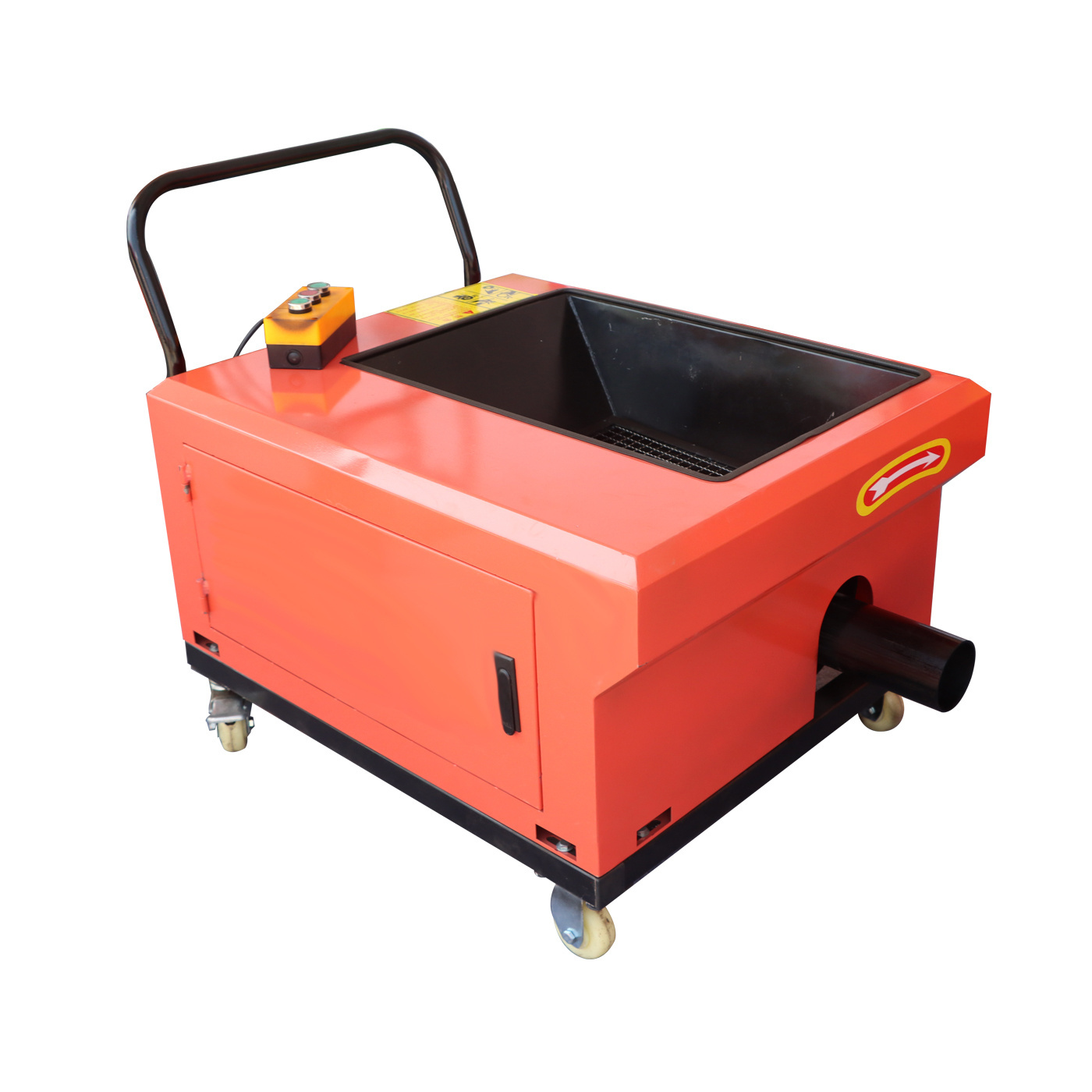

Concrete Secondary Structure Screw Pump Machine
-
Product Model:
-
CHF-6
-
Motor power:
-
4/5.5KW
-
Conveying height:
-
≤4m
-
can pass aggregate fine stone:
-
5-16MM
-
Conveying pipe diameter:
-
100mm
-
Product voltage:
-
380V
-
Theoretical displacement:
-
5-7m³/h
-
Main machine size:
-
800MM*650MM*530MM
-
Product weight:
-
About 90KG
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
4M
-
Max. horizontal conveying distance:
-
Other
-
Productivity:
-
5-7m³/H
-
Place of Origin:
-
CHANGGE CHINA
-
Brand Name:
-
LFUHANG
-
Weight:
-
90 kg
-
Dimension(L*W*H):
-
800MM*650MM*530MM
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
Concrete Secondary Structure Screw Pump Machine
-
Product Model:
-
CHF-6
-
Motor power:
-
4/5.5KW
-
Conveying height:
-
≤4m
-
can pass aggregate fine stone:
-
5-16MM
-
Conveying pipe diameter:
-
100mm
-
Product voltage:
-
380V
-
Theoretical displacement:
-
5-7m³/h
-
Main machine size:
-
800MM*650MM*530MM
-
Product weight:
-
About 90KG
|
Model
|
CHF-6
|
|
Motor power
|
4/5.5KW
|
|
Conveying height
|
≤4m
|
|
can pass aggregate fine stone
|
5-16mm
|
|
Working voltage
|
380V
|
|
Theoretical displacement
|
5-7m³/h
|
|
Machine weight
|
About 90KG
|
|
Conveying pipe diameter
|
100mm
|
|
Main machine size
|
800MM×650MM×530MM
|
|
Item No.
|
1034
|
|
Model
|
Horizontal secondary construction pump Machine
|
|
Factory standard
|
10 meters steel pipe
|
|
Maximum aggregate size
|
< 20mm
|
|
Bore/stroke
|
Φ120/400mm
|
|
Motor power
|
15KW
|
|
Machine weight
|
About 700KG
|
|
Pipe diameter
|
Φ80mm
|
|
Theoretical conveying capacity
|
5-8m³/1h
|
|
Conveying distance
|
vertical 20 m / horizontal 30 m
|
|
Usage
|
mortar fine stone conveying
|
|
Dimensions
|
1800×750×1400mm
|
|
Item No.
|
1045
|
|
Model
|
Inclined secondary structure pump Machine
|
|
Factory standard
|
10 meters steel pipe
|
|
Maximum aggregate size
|
< 30mm
|
|
Bore/stroke
|
Φ120/540mm
|
|
Motor power
|
15KW
|
|
Machine weight
|
About 700KG
|
|
Pipe diameter
|
Φ100mm
|
|
Theoretical conveying capacity
|
5-8m³/1h
|
|
Conveying height: 30m
|
30 m
|
|
Usage
|
mortar fine stone conveying
|
|
Dimensions
|
2000×670×1200mm
|
|
Item No.
|
1046
|
|
Model
|
Diesel secondary structure pump Machine
|
|
Factory standard
|
10 meters steel pipe
|
|
Maximum aggregate size
|
< 30mm
|
|
Bore/stroke
|
Φ120/540mm
|
|
Diesel engine power
|
Changchai power 30hp
|
|
Machine weight
|
About 800KG
|
|
Pipe diameter
|
Φ100mm
|
|
Theoretical conveying capacity
|
5-8m³/1h
|
|
Conveying height: 30m
|
30 m
|
|
Usage
|
mortar fine stone conveying
|
|
Dimensions
|
2100×1300×1000mm
|
|
Item No.
|
1047
|
Q: What are your advantages compared with your competitors?
Q: What are your Price Terms?
A: As Alibaba certified offical Golden supplier, we have full confidence to help you control the financial balance and achieve your financial budget;we have more than 10 years of construction machinery manufacturing experience, is a research and development, sales and after-sales manufacturer.
Q: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.
Q: Whether you could make our brand on your products?
A: Yes.We support OEM & ODM D)What are your Payment Terms? Payment shall be made by Alibaba Trade Assurance Orders( T/T, L/C, or D/P,etc.)
A: Yes.We support OEM & ODM D)What are your Payment Terms? Payment shall be made by Alibaba Trade Assurance Orders( T/T, L/C, or D/P,etc.)
Q: Does the product have after-sales service?
A: We have professional after-sales service customer service, online for you to provide 24 hours of technical service.
