Quick Details
-
Use:
-
Front 3-point Linkage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMTRA
-
Matching Tractor:
-
20~180hp
-
Lifting Capacity:
-
700~4000kgs
-
Lifting Height:
-
620~800mm
-
Number of Cylinder:
-
2
-
Double-acting Cylinders:
-
Standard
-
Hook Cat.:
-
Cat.2 or 3
-
Hydraulic Lock:
-
Optional
-
Contact:
-
aaron AT samtra.cn
-
whats app:
-
008615264166525
-
Color:
-
black or grey
Quick Details
-
Weight (KG):
-
160
-
Core Components:
-
cylinder
-
Type:
-
Tractor Front Linkage
-
Use:
-
Front 3-point Linkage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMTRA
-
Matching Tractor:
-
20~180hp
-
Lifting Capacity:
-
700~4000kgs
-
Lifting Height:
-
620~800mm
-
Number of Cylinder:
-
2
-
Double-acting Cylinders:
-
Standard
-
Hook Cat.:
-
Cat.2 or 3
-
Hydraulic Lock:
-
Optional
-
Contact:
-
aaron AT samtra.cn
-
whats app:
-
008615264166525
-
Color:
-
black or grey

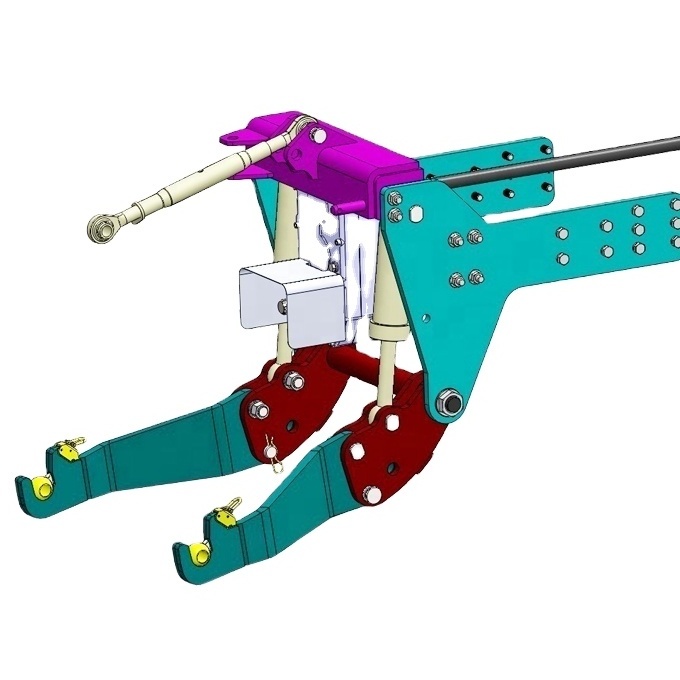

SAMTRA FRONT LINKAGE&PTO
Description:
SUNCO Front-PTO provides power delivery to the highest technical standards. The PTO features an internal oil immersed multi-plate clutch. Engagement of the clutch is controlled by a proportional and adjustable engagement system. This guarantees a smooth uptake of power to the front mounted implements.
Features:
1 Strong Mechanical Parts
2 Top Quality Materials
3 Easy Operation and High Efficiency
4 Long Service Life
Application:
SUNCO Front-PTO for tractor is widely used in farm, grazing land, forestry work etc, mainly in the conditons that the farm implements should be put and mounted in the front side of tractor.
| Model | XG07 | XG10 | XG15 | XG20 | XG30 | XG40 |
| Matching Tractor (hp) | 20~50 | 40~70 | 60~90 | 80~130 | 120~180 | >180 |
| Lifting Power at Catch Hook kN(kg) (20MPa) | 7 (700) | 10 (1000) | 15 (1500) | 20 (2000) | 30 (3000) | 40 (4000) |
| Lifting Height (mm) H | 620 | 620 | 720 | 750 | 800 | 800 |
| Double-acting Cylinders | Standard | |||||
| Type of Catch Hooks | Cat. 2 | Cat. 3 | ||||
| Type of Top Link | Cat. 2 | |||||
| Weight (kg) | 140 | 160 | 280 | 350 | 550 | 700 |
| Reversing Valve | Option | |||||
| Hydraulic Lock | Option | |||||
| Shock Eliminator | No | Option | ||||
Remarks: technical specifications and engineering designs are subject to change without further notice!
