Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongrun
-
Weight:
-
3500 kg
-
Dimension(L*W*H):
-
3*2.28*2.6m
-
Pile driving efficiency:
-
2500 mm/min
-
Maximum pile height:
-
0- 4m
-
Slide travel:
-
700-3400 mm
-
Sliding navigation frame tilt:
-
Left 30° Right5
-
Left and right sliding stroke:
-
0-400 mm
-
Front and rear adjustment angle of frame:
-
0-20°
-
Climbing ability:
-
35°
-
Diesel tank:
-
60 L
-
Hydraulic oil tank:
-
600*400*360 mm
-
Oil cooler:
-
650*550*215 mm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Efficiency:
-
2500mm/min
-
Piling Speed(m/min):
-
2500mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongrun
-
Weight:
-
3500 kg
-
Dimension(L*W*H):
-
3*2.28*2.6m
-
Pile driving efficiency:
-
2500 mm/min
-
Maximum pile height:
-
0- 4m
-
Slide travel:
-
700-3400 mm
-
Sliding navigation frame tilt:
-
Left 30° Right5
-
Left and right sliding stroke:
-
0-400 mm
-
Front and rear adjustment angle of frame:
-
0-20°
-
Climbing ability:
-
35°
-
Diesel tank:
-
60 L
-
Hydraulic oil tank:
-
600*400*360 mm
-
Oil cooler:
-
650*550*215 mm
NOTE
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you.
Product Description
|
Model
|
HR-385
|
|
Engine
|
Yuchai 4105 turbocharged engine
|
|
Engine power
|
85 kw
|
|
Maximum torque of walking motor
|
1800N.m
|
|
Walking speed
|
5000-20000 m/h
|
|
Maximum traction speed
|
≤30000m/h
|
|
Gear pump flow rate
|
80-110 ml/r
|
|
Gear pump speed
|
2500 r/min
|
|
Pile driving efficiency
|
2500 mm/min
|

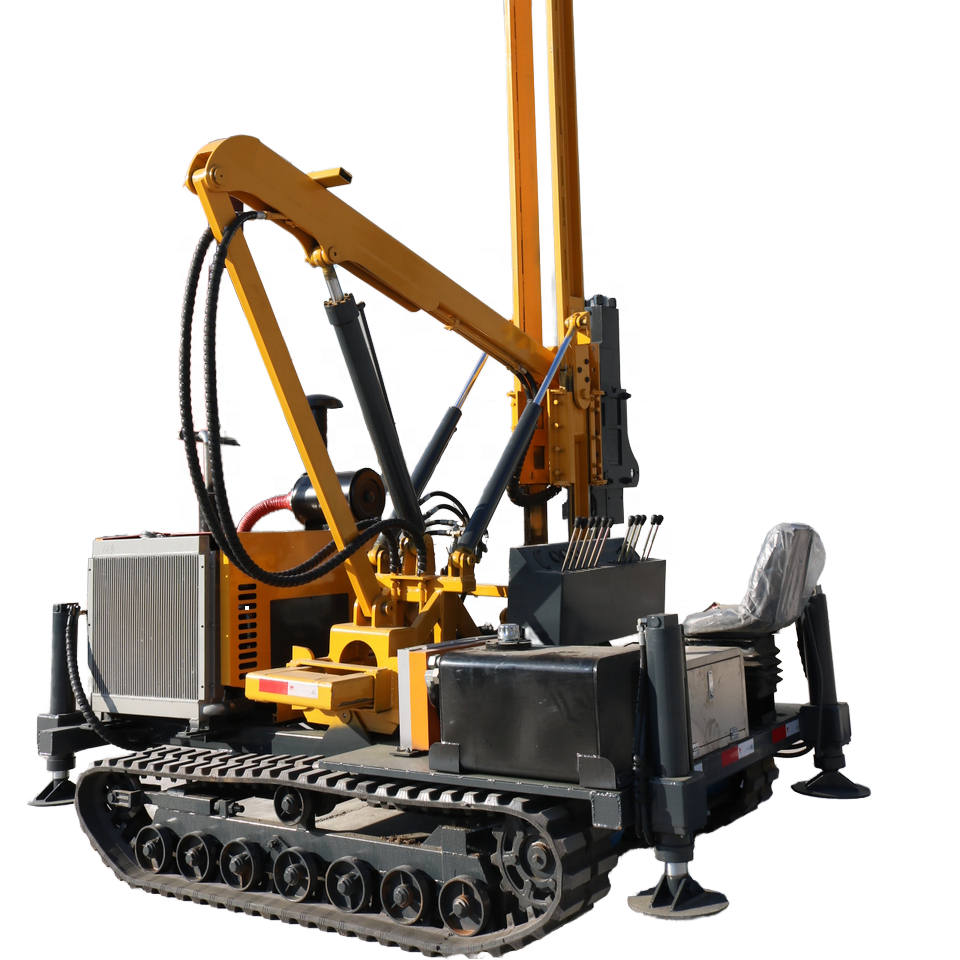

Crawler type guardrail pile driver
Using
:
Hydraulic post driver for highway construction and ramming pile
Multi-functional/Multipurpose design:
Jining Hongrun series self-propelled hydraulic pile driver is a kind of multi-functional guardrail installation machine which can accomplish piling, pulling, pile extracting and drilling holes on ground with the same hydraulic unit when changing another device.
A variety of models can be selected and support customization！
