Quick Details
-
Brand Name:
-
JXPC
-
Name:
-
Pneumatic Cylinder
-
Motion Pattern:
-
Double Action/Single Action
-
Working Medium:
-
Air
-
Fixed Type:
-
Normal/LB/FA/SDB/U
-
Working Pressure:
-
0.1-0.9MPa
-
Ensured Pressure Resistance:
-
1.35MPa
-
Working Temperature:
-
-5~+70℃
-
Piston Speed:
-
50-800mm/s
-
Port Size:
-
M5*0.8, G1/8"
-
Buffering:
-
Standard Type: Anti-crash Cushion/Damping Type: Adjustable Cushion
Quick Details
-
Video outgoing-inspection:
-
None
-
Core Components:
-
Cylinder
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JXPC
-
Name:
-
Pneumatic Cylinder
-
Motion Pattern:
-
Double Action/Single Action
-
Working Medium:
-
Air
-
Fixed Type:
-
Normal/LB/FA/SDB/U
-
Working Pressure:
-
0.1-0.9MPa
-
Ensured Pressure Resistance:
-
1.35MPa
-
Working Temperature:
-
-5~+70℃
-
Piston Speed:
-
50-800mm/s
-
Port Size:
-
M5*0.8, G1/8"
-
Buffering:
-
Standard Type: Anti-crash Cushion/Damping Type: Adjustable Cushion
Product Description

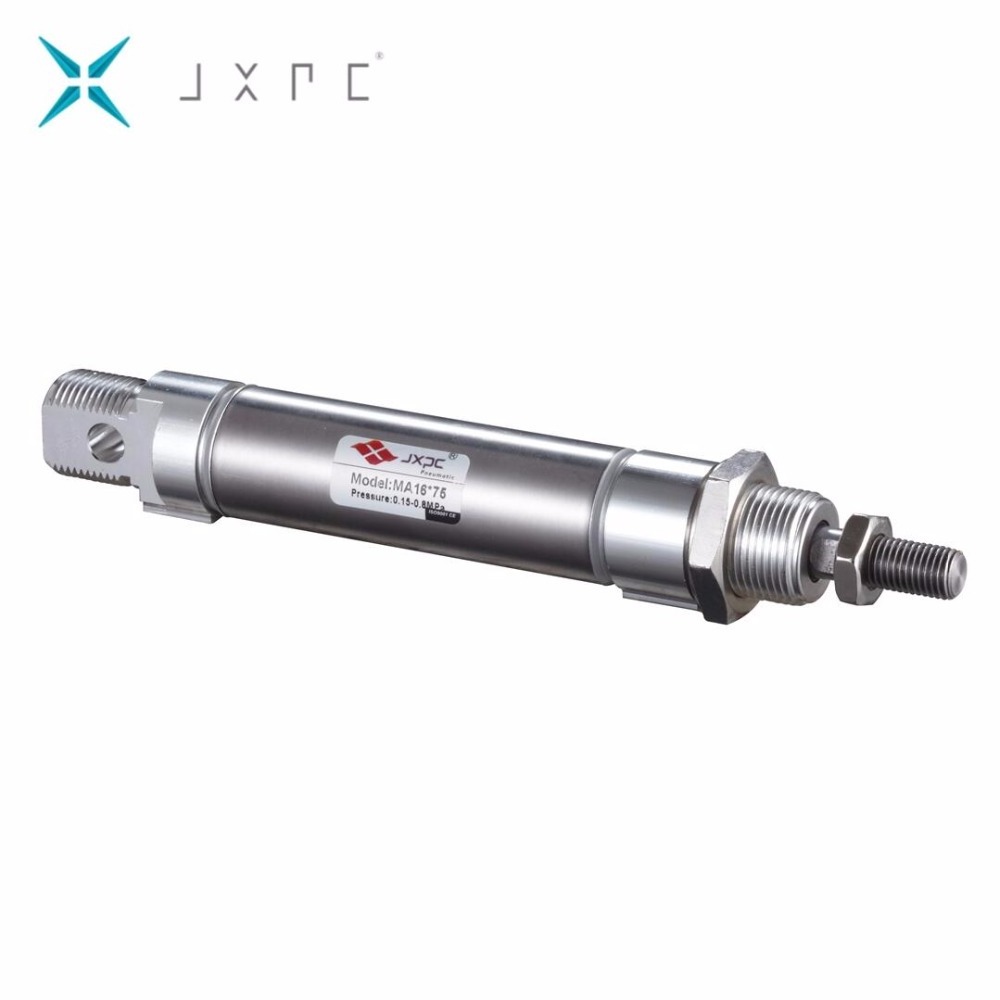

- Product Name : Mini Air Cylinder
- Model : MA Series
- Action Type : Double Action/Single Action
- Port size: M5*0.8, G1/8"
- Working Temperature:-5~+70℃
- Material : Stainless Steel
| Bore(mm) | 16 | 20 | 25 | 32 | 40 | |
| Motion pattern | Double Action or Single Acrtion | |||||
| Working Medium | Air | |||||
| Fix Type | Normal type/FA type/FB type/CA type/CB type/LB type/TC type | |||||
| Operating Voltage Range | 0.1-0.9Mpa | |||||
| Ensured Pressure Resistance | 1.35Mpa | |||||
| Operating Tempeature Range | -5~70°C | |||||
| Operating Speed Range | 50-800mm/s | |||||
| Buffer Type | Standard Type | Anti-crash cushion | ||||
| Damping Type | Adjustable cushion | |||||
| Port Size | M5×0.8 | G1/8'' | ||||
