Quick Details
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QUANTA ribbon mixer
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customizable
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
detergent powder mixer
-
Material:
-
Stainless Steel 304 / SUS316L
-
Application scope:
-
Food food
-
Stirrer type:
-
Paddle Mixer
-
Power(W):
-
0.75-45kw
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
3000 L
-
Max. Loading Capacity:
-
3000L
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QUANTA ribbon mixer
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customizable
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
detergent powder mixer
-
Material:
-
Stainless Steel 304 / SUS316L
-
Application scope:
-
Food food
-
Stirrer type:
-
Paddle Mixer
-
Power(W):
-
0.75-45kw

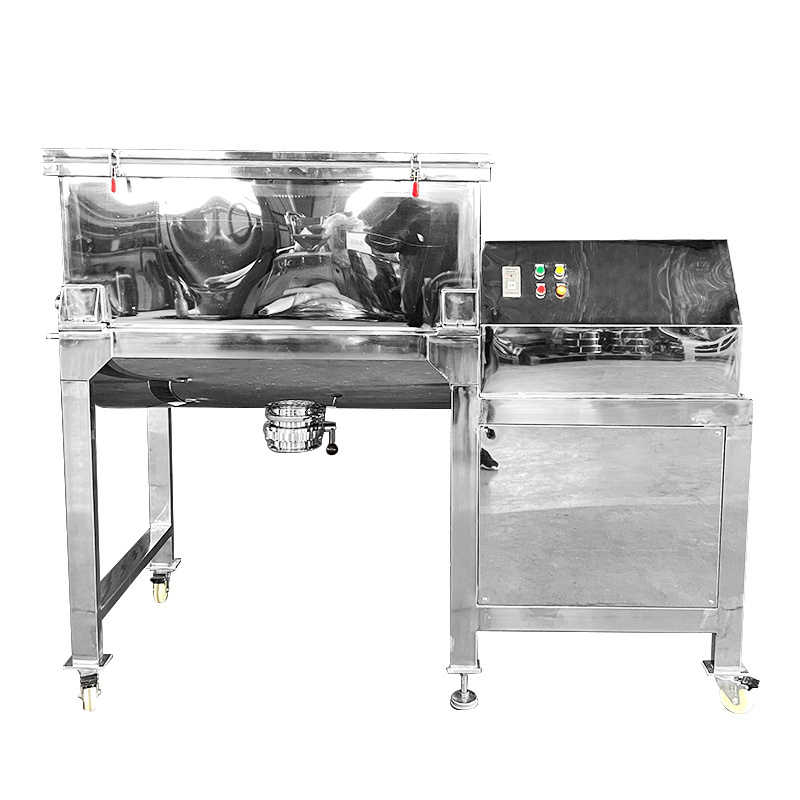

WLDH horizontal ribbon mixer is widely used in chemical, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule.
Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon mixer is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch.
Working principle:
Horizontal ribbon mixer is mainly combined with mixing barrel, agitator, driven unit.Untwist double ribbon are swirled with the main shaft in the U shape barrel. The outer ribbon push the material from the two ends to the center, inner ribbon push the material from center to the two ends.Thus to achieve material convention
The discharging port is set in the bottom center, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
| Model | Dimension (MM) | Total Volume | Max.loading capacity | Rotation Speed | Weight | Power | ||
| L | W | H | L | KG | Rpm/min | KG | KW | |
| WLDH-300 | 1915 | 680 | 1000 | 300 | 180 | 65 | 600 | 4 |
| WLDH-500 | 2510 | 800 | 1275 | 500 | 300 | 65 | 900 | 7.5 |
| WLDH-1000 | 2980 | 940 | 1380 | 1000 | 600 | 48 | 1300 | I1 |
| WLDH-1500 | 3160 | 980 | 1570 | 1500 | 900 | 48 | 1600 | 15 |
| WLDH-2000 | 3360 | 1040 | 1625 | 2000 | 1200 | 35 | 2000 | 15 |
| WLDH-3000 | 3640 | 1250 | 1850 | 3000 | 1800 | 35 | 2600 | 18.5 |
| WLDH-4000 | 4100 | 1440 | 1960 | 4000 | 2400 | 33 | 3800 | 22 |
| WLDH-5000 | 4320 | 1540 | 2070 | 5000 | 3000 | 27 | 4800 | 30 |
| WLDH-6000 | 5000 | 1650 | 2350 | 6000 | 3600 | 27 | 5500 | 37 |
| WLDH-8000 | 5000 | 1750 | 2400 | 8000 | 4800 | 22 | 6500 | 45 |
| WLDH-10000 | 5600 | 2140 | 2750 | 10000 | 6000 | 22 | 8000 | 55 |
| WLDH-15000 | 5800 | 2250 | 3075 | 15000 | 9000 | 14 | 9000 | 75 |
| WLDH-20000 | 6170 | 2450 | 3500 | 20000 | 12000 | 14 | 11000 | 90 |
| WLDH-30000 | 6370 | 2800 | 3700 | 30000 | 18000 | 12 | 14000 | 110 |
