Quick Details
-
Brand Name:
-
Scodeno
-
Model Number:
-
XPTN-9000-65-8GT
-
Place of Origin:
-
Guangdong, China
-
Operating temp:
-
-40℃-+85℃
-
Level of protection:
-
IP40
-
Input voltage:
-
DC12-58V
-
PoE standard:
-
802.3af / 802.3at
-
Surge protection of power:
-
Level X (6KV/6KV)(8/20us)
-
Installation method:
-
Din-rail
-
Power consumption:
-
PoE<246W
-
Jumbo Frame:
-
10K Bytes
-
Buffer:
-
2M
-
Certification:
-
CE,RoHS,FCC,CCC
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
26G
-
Brand Name:
-
Scodeno
-
Model Number:
-
XPTN-9000-65-8GT
-
Place of Origin:
-
Guangdong, China
-
Operating temp:
-
-40℃-+85℃
-
Level of protection:
-
IP40
-
Input voltage:
-
DC12-58V
-
PoE standard:
-
802.3af / 802.3at
-
Surge protection of power:
-
Level X (6KV/6KV)(8/20us)
-
Installation method:
-
Din-rail
-
Power consumption:
-
PoE<246W
-
Jumbo Frame:
-
10K Bytes
-
Buffer:
-
2M
-
Certification:
-
CE,RoHS,FCC,CCC
|
|

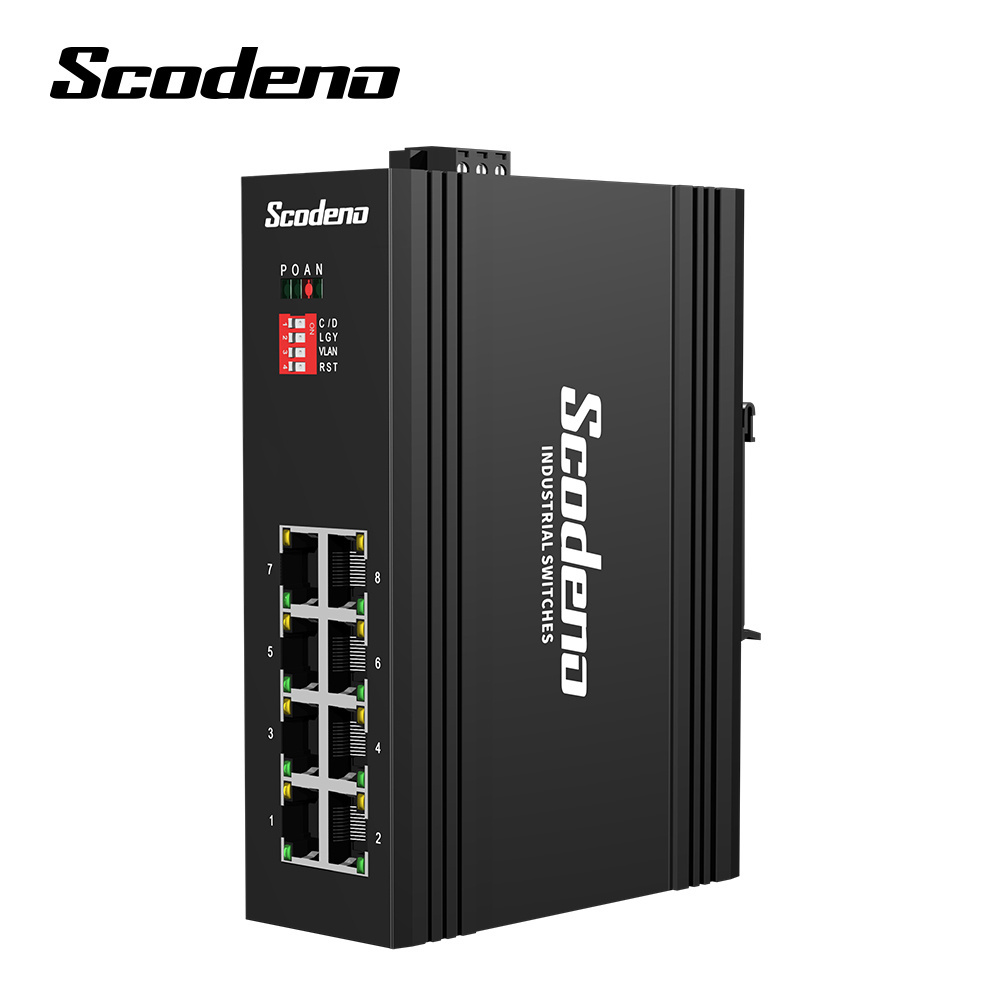

DC12V/24V/48V Industrial Grade 8 Port PoE Switch with DIP Switch |
|
This device is 8*10/100/1000Base-T Industrial Ethernet Switches, PoE/PoE+ is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments. |
Key Features:
- IP40 Protection, -40~+85℃ Operating Temperature
- PoE/PoE+ , Standard&Nonstandard PoE Mode
- 6KV Surge Protection of power, 4KV of Ethernet Port
- DC 10-58V Redundant Power Supply
- DIP Switches: Remote PD Reset, PoE Mode, Port Isolation, PD Reset Per 24 Hours
- IEEE 802.3x flow control, MDI/MDIX, Full duplex&half duplex, WatchDog, Voltage Alarm
- Compatible with multiple mainstream brand devices, HUAWEI, CISCO, H3C, RUIJIE, NETGEAR, TP-LINK, RAISECOM, etc.
|
Provider Mode Ports |
|
|
Fixed port |
8 *10/100/1000Base-T |
|
Power interface |
Phoenix terminal, dual redundant power supply |
|
LED Indicators |
PWR, OPT, NMC, ALM |
|
Reset |
DIP switch reset |
|
Twisted-pair |
0-100m(CAT5e,CAT6) |
|
Net Topology&Networking Scale |
|
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
DC10-58V |
|
Power consumption |
Non PoE<6W, PoE<246W |
|
Voltage Alarm |
Support |
|
PoE (Optional) |
|
|
PoE port |
1~8 |
|
PoE Protocol |
802.3AF, 802.3AT |
|
PoE Pin Assignment |
1,2,3,6 |
|
PoE Mode |
Standards and non-standards are support optional |
|
Layer 2 Switching |
|
|
Switching capacity |
26G |
|
Packet forwarding rate |
19.34Mpps |
|
MAC address table |
16K |
|
Buffer |
2M |
|
Forwarding delay |
<5us |
|
MDI/MDIX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Support 10K Bytes |
|
WatchDog |
Support |
| PD RED: Reset Every Day | Support Optional |
| Relay Alarm Output | Support Optional |
|
Environment |
|
|
Operating temperature |
-40℃~ +85℃ |
|
Storage temperature |
-40℃~ +85℃ |
|
Relative humidity |
5%~95% (non-condensing) |
|
Thermal methods |
Fan-free,natural cooling |
|
MTBF |
100,000 hours |
|
Mechanical Dimensions |
|
|
Product size |
143X104X48mm |
|
Installation method |
Din-rail |
|
EMC&INGRESS Protection |
|
|
IP level |
IP40 |
|
Surge protection of power |
IEC 61000-4-5 Level X (6KV/6KV)(8/20us) |
|
Surge protection of ethernet port |
IEC 61000-4-5 Level X (4KV/4KV)(10/700us) |
|
RS |
IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
|
DIP |
IEC 61000-4-11 Level 3 (10V) |
|
ESD |
IEC 61000-4-2 Level 4 (8K/15K) |
|
Free-Fall |
0.5m |
