Quick Details
-
Interface Standard:
-
T e s l a,
-
Output Current:
-
AC
-
Input Voltage:
-
230V
-
Product name:
-

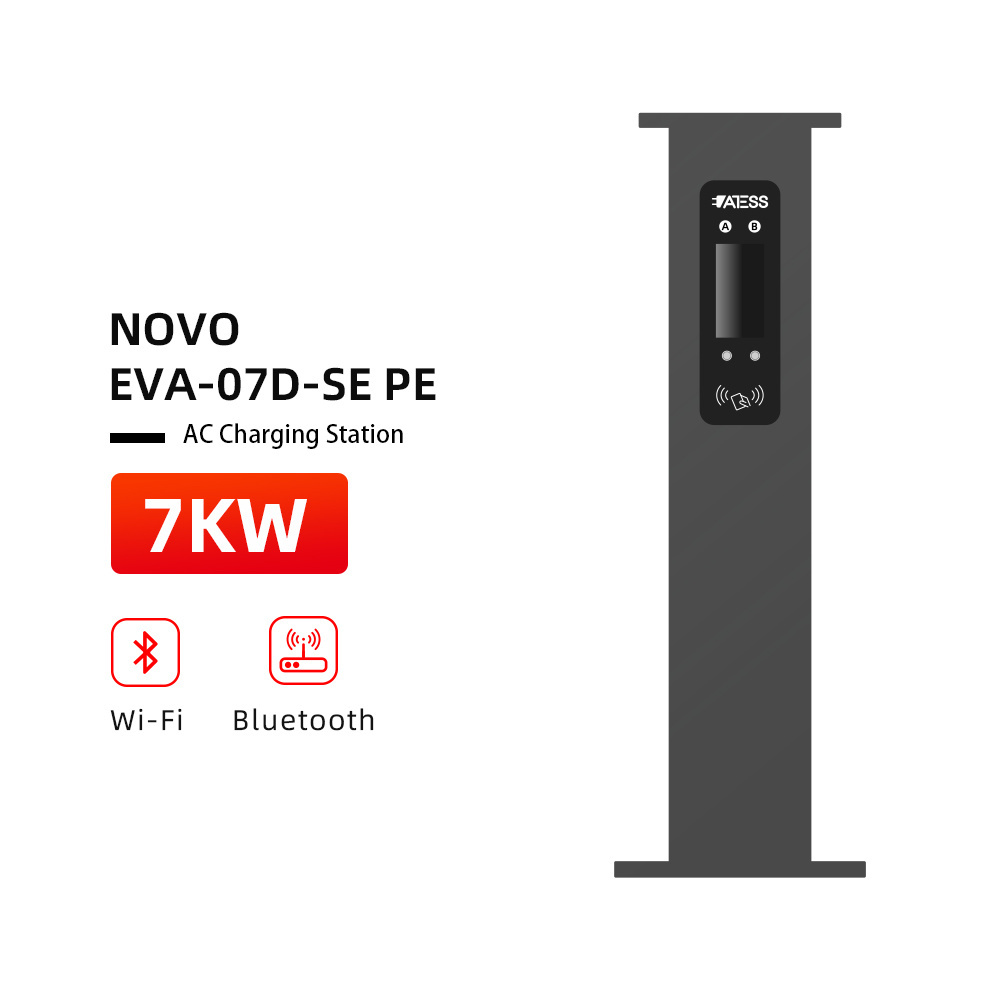

Single Phase Home Electric Car Charger Ev Charging Station
-
Earth leakage protection:
-
TypeA+6mA DC Fault current protection
-
Charging Mode:
-
APP/RFID(Opt/Plug and charge
-
Installation:
-
Floor-standing
-
Protection degree:
-
IP65/IP55
-
Operating temperature:
-
-25°C ~+50°C
-
Relative humidity:
-
0%-95% non-condensing
-
Cooling:
-
Natural air cooling
-
Standby power consumption:
-
<8W
-
Maximum altitude:
-
5000m (The derating starts after 3000 meters)
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
NOVO EVA-07D-PE / EVA-07D-SE
-
Brand Name:
-
Atess
-
Interface Standard:
-
T e s l a,
-
Output Current:
-
AC
-
Input Voltage:
-
230V
-
Product name:
-
Single Phase Home Electric Car Charger Ev Charging Station
-
Earth leakage protection:
-
TypeA+6mA DC Fault current protection
-
Charging Mode:
-
APP/RFID(Opt/Plug and charge
-
Installation:
-
Floor-standing
-
Protection degree:
-
IP65/IP55
-
Operating temperature:
-
-25°C ~+50°C
-
Relative humidity:
-
0%-95% non-condensing
-
Cooling:
-
Natural air cooling
-
Standby power consumption:
-
<8W
-
Maximum altitude:
-
5000m (The derating starts after 3000 meters)
|
Datasheet
|
NOVO EVA-07D-PE
|
NOVO EVA-07D-SE
|
||
|
Input & Output
|
|
|
||
|
Input voltage
|
230V AC
|
|
||
|
Input frequency
|
50/60Hz
|
|
||
|
Output voltage
|
230V AC
|
|
||
|
Max.output power
|
7.3KW*2
|
|
||
|
Max.output current
|
32A*2
|
|
||
|
Charging inerface type
|
IEC62196- 2,Type2
|
|
||
|
Connection
|
Plug
|
Socket
|
||
|
Cable Length
|
5m
|
/
|
||
|
Number of connection
|
2
|
2
|
||
|
Protection
|
|
|
||
|
Over voltage protection
|
Yes
|
|
||
|
Under voltage protection
|
Yes
|
|
||
|
Over load protection
|
Yes
|
|
||
|
Short circuit protection
|
Yes
|
|
||
|
Earth leakage protection
|
6mA DC fault current protection
|
|
||
|
Over-temp protection
|
Yes
|
|
||
|
Lightning protection
|
Yes
|
|
||
|
Function & Accessory
|
|
|
||
|
Ethernet/WIFI/4G
|
Yes/Yes/Opt
|
|
||
|
LCD
|
Opt
|
|
||
|
Charging Mode
|
APP/RFID(Opt)/Plug and charge
|
|
||
|
LED Indicator Light
|
Yes
|
|
||
|
Intelligent power adjustment
|
Yes
|
|
||
|
Installation
|
Floor
|
|
||
|
Pro-earth
|
Opt
|
|
||
|
MID meter
|
Opt
|
|
||
|
Working Environment
|
|
|
||
|
Protection degree
|
IP55
|
IP65
|
||
|
Operating temperature
|
-25°C ~+50°C
|
|
||
|
Relative humidity
|
5%- 95% non- condensing
|
|
||
|
Maxmum altitude
|
<2000m
|
|
||
|
Cooling
|
Natural air cooling
|
|
||
|
Standby power consumption
|
<8W
|
|
||
|
Mechnical
|
|
|
||
|
Dimension (W/H/D)
|
420/1640/270mm
|
|
||
|
Weight
|
<19.5kg
|
<17kg
|
||
|
Certificate
|
|
|
||
|
Certificate
|
CE
|
|
||
