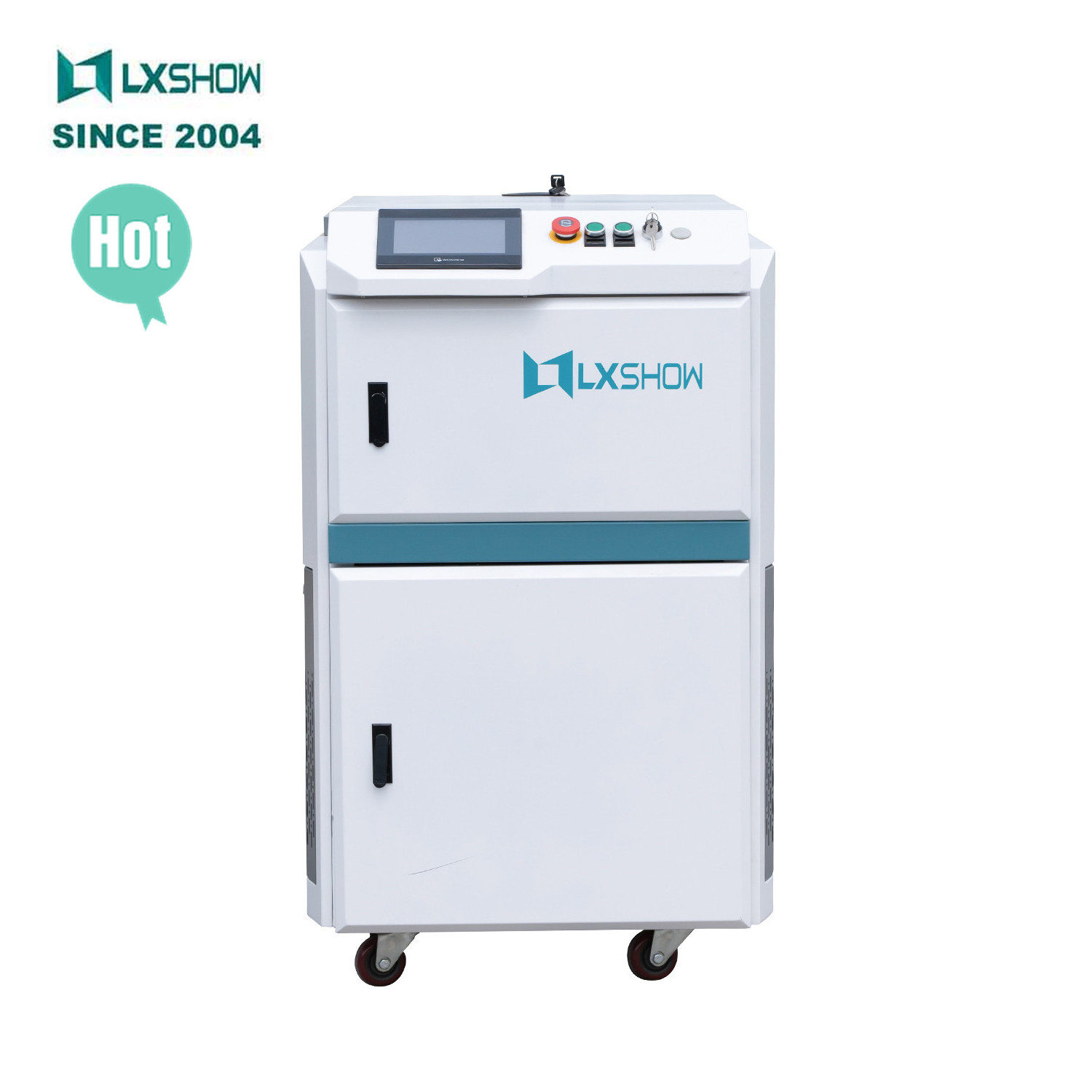

The LXSHOW laser cleaning machine, with a built-in laser cleaning gun head, can efficiently remove rust stains, oxides, and paint on various metal surfaces.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
Hot Product
-
Core Components:
-
laser source
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNICHCNC
-
Dimension(L*W*H):
-
760*780*790mm
-
Year:
-
2021
-
Weight (KG):
-
60 KG
-
Name:
-
laser cleaning machine
-
Laser power:
-
50w 100w 200w (500w 1000w)
-
Laser wavelength:
-
1064nm
-
Total Weight:
-
56kg - 140kg
-
Scan width:
-
10-60mm
-
Laser working medium:
-
Yb-doped fiber
-
Working temperature:
-
5-40℃
-
Optional:
-
Hand/automatic
-
Cleaning Type:
-
Portable
-
Function:
-
Metal Rust Paint Laser Cleaning
Quick Details
-
Power:
-
50w 100w 200w (500w 1000w)
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
RAYCUS MAX IPG JPT
-
Marketing Type:
-
Hot Product
-
Core Components:
-
laser source
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNICHCNC
-
Dimension(L*W*H):
-
760*780*790mm
-
Year:
-
2021
-
Weight (KG):
-
60 KG
-
Name:
-
laser cleaning machine
-
Laser power:
-
50w 100w 200w (500w 1000w)
-
Laser wavelength:
-
1064nm
-
Total Weight:
-
56kg - 140kg
-
Scan width:
-
10-60mm
-
Laser working medium:
-
Yb-doped fiber
-
Working temperature:
-
5-40℃
-
Optional:
-
Hand/automatic
-
Cleaning Type:
-
Portable
-
Function:
-
Metal Rust Paint Laser Cleaning
LXSHOW LASER CLEANING MACHINE
Product Description
Machine In Factory
We have our OWN FACTORY,
so we can provide you with a full range of services.
so we can provide you with a full range of services.
* FREE Visiting (Support Real-time video
)
* FREE Training* FREE Testing
* FREE Samples
* FREE Training* FREE Testing
* FREE Samples
Frequently Asked Questions
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2.Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal
Very good, you can refer to our video below
4.Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,
Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.What kind of objects can be cleaned?
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
|
Equipment model
|
LXC-50W
|
LXC-100W
|
LXC-200W
|
LXC-350W
|
LXC-500W
|
LXC-1000W
|
|||||
|
Laser working medium
|
Yb-dopes fiber
|
|
|
|
|
|
|||||
|
Laser power
|
50w
|
100w
|
200w
|
350w
|
500w
|
|
|||||
|
Laser wavelength
|
1064nm
|
|
|
|
|
|
|||||
|
Working temperature
|
5-40℃
|
|
|
|
|
|
|||||
|
Optional
|
hand/automatic
|
|
|
|
|
|
|||||
|
Scan width
|
10-60mm
|
|
|
|
|
|
|||||
|
Total power
|
350w
|
600w
|
1000W
|
1400W
|
1800W
|
2000W
|
|||||
|
Total Weight
|
50kg
|
150kg
|
175kg
|
175kg(Including Water tank)
|
200kg(Including Water tank)
|
200kg(Including Water tank)
|
|||||
|
Dimension
|
700x1250x1030mm(about)
|
|
|
|
|
|
|||||
|
Cooling method
|
air
|
air
|
air/water
|
water
|
|
|
|||||
|
Pulse frequency
|
20-100khz
|
|
20-200khz
|
20-50khz
|
|
|
|||||
Advantages
Features of Rust removal laser cleaning
The hand gun design is convenient for handling and transportation.
Non-contact cleaning,
protecting component base against damage.
Requiring
no chemical
cleaning solution or consumables, can realize
long-term continuous service
and easy upgrade and daily maintenance.
Extremely
high cleaning efficiency and time saving.
Simple operation
Stable laser cleaning system, requiring almost no maintenance.
Multiple lenses of different distances can be switched freely
Machine Parts
Each laser cleaning machine will b
e
attached with goggles and protective mirror
, optical fiber line can
be customized
according to customer needs,
Cleaning Effect
HOW laser rust removal tool WORK？
*
Powerful, very short, rapid and moving laser pulses
produce micro-plasma bursts, shock waves and thermal pressure resulting in ublimation and ejection of the target material.
*A focused laser beam precisely vaporizes the target coating or contaminant.
* Process optimization of the laser beam produces maximum reaction with the target material for speed while, at the same time, does o safely and without harm to the base material.
* Metal surfaces are well-suited for many laser cleaning applications. Optimized beam settings will not metallurgically change or damage the laser treated surface. Only the coating, residue or oxide targeted for removal is affected as the laser beam is precisely adjusted not to react with the underlying metal surface.
* Laser beam power density is accurately and easily adjusted to achieve cleaning results impossible with all other
What materials can be cleaning?
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pretreatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning
It can meet a variety of cleaning needs
If
you want to know the effective of the laser cleaner , you can
click here
to
ask the customer service
for a
free cleaning sample
;
or if you want to know if you can clean the materials you need, you can click here to ask the customer service
or if you want to know if you can clean the materials you need, you can click here to ask the customer service
What industry can laser cleaning machine be used in?
Ship Industry, auto Parts, rubber Mold, high-end Machine, tire molde track, environmental Protection Industry and others.
