SX6018 plastic spray equipment ,epoxy resin powder coating machine

SX6018 plastic spray equipment ,epoxy resin  powder coating machine

our company has improved the design on the basis of flame spray equipment of France SNMI company and British SCHORI company.It  can spray all kind of thermosetting plastic powders, such as polyethylene (PE), nylon, polyolefin (PO), etc.

1.Construction of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

SX6018 epoxy resin  powder coating machine in coating machines  SX6018 consists of  plastic spraying gun,  powder  feeder, pipeline and gas path regulator. The user only should prepare air compressor with 0.9 m3 / min , oxygen, acetylene gas,decompression  table of oxygen acetylene , line pipe.

2. Principle of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

epoxy resin  powder coating machine in coating machines  SX6018 adapts the special powder feeder hose to sen d powder and flame by plastic gun,  produc e heat source with the aid of oxyacetylene, compress air jets of gas to protect flame flow, heat spray ing plastic powder to melt plastic state or condition, spraying the surface after pretreatment ,

3.par ameters of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

4. Characteristic of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

epoxy resin  powder coating machine in coating machines  SX6018 mainly used to spray plastic  on large-scale  corrosion resistant live project  . The characteristic is   that  the  coating layer is  thick , operation is simple, the equipment is easy to carry, and  can be  used for site construction.

compared to  electrostatic powder coating and fluidized bed coating, the epoxy resin  powder coating machine in coating machines  SX6018 are of advantages below:

( 1 )The cost of equipment is low, without  special spraying room, drying room.

(2) Portable and easy to carry, can be on-site construction, spraying process can not be limited by workpiece size and shape.

(3) can work in 100% relative humidity, low temperature environmental conditions

(4) Powder coating materials do not contain solvents, do not need drying curing time after spraying.

(5) can spray  a variety of substrate materials such as steel, concrete and so on.

(6) coating layer can be repaired, for the small defect part, as long as you  heat the surface then it can be repaired, for large defect part,you can re-spray and repair it

(7 )easy to change powder and color

5. the application range of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

Can directly spray all kinds of plastic coating  of acid, alkali, salt , no need the heat curing device, especially suitable for the scene of large area flame plastic spraying construction, in the aspect of  anti-corrosion performance, operating technology ,and operating environment ,it can take place of heavy anti-corrosion coating and glass steel lining.

6. Application Examples of SX6018 plastic spray equipment ,epoxy resin  powder coating machine

(1) Resistant to various corrosive media containers: liquor, beer, milk, salt, food, sewage treatment equipment, power plant steel desalting water tank, including ultrafiltration water tank, first-level freshwater box, two-class freshwater tank, water tank and other anti-corrosion, using the United States imported EAA plastic powder large Area Flame Spray site construction.

(2)All kinds of steel structure anti-corrosion, decoration, insulation, wear-resistant, antifriction: petrochemical, power plant large storage tanks and west-East gas pipeline two-layer PE and three-layer PE anti-corrosion pipe welded joints On-site repair, highway guardrail, municipal lighting pole, stadium grid engineering, water pumps, chemical fan, printing press nylon drum, car spline  shaft, Electroplating hanging fixture and so on

(3)Marine steel structure and harbor Facilities: Bridge Foundation, Breakwater, Banqiao, steel pipe pile, plate pile, trestle, buoy, etc. to prevent seawater corrosion.

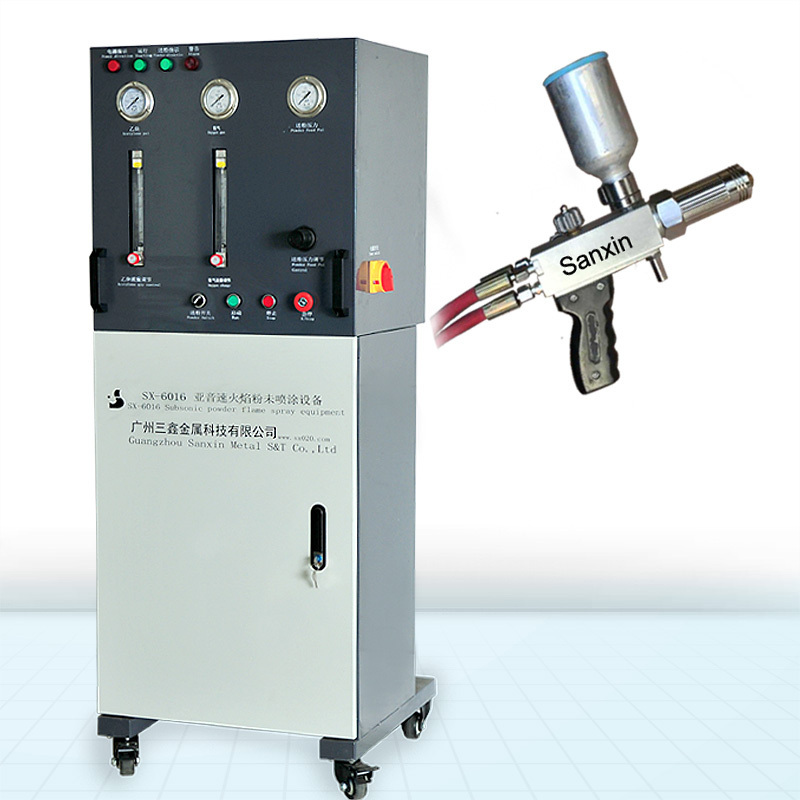

some pictures for reference :

If you are interested in it our machine ,please  contact me,I will offer you more details accordingly,thanks
