Quick Details
-
Brand Name:
-
BETE
-
Weight (KG):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
220V 50Hz
-
Output cutting force:
-
200KN/300KN
-
Output punching force:
-
300KN/350KN
-
Output bending force:
-
270KN
-
Cutting Max.:
-
200x12mm
-
Punching Max.:
-
200 x 12 mm
-
Bending Max:
-
125 x 12 .5mm
-
Throat depth of punching:
-
95/110mm
Quick Details
-
Max. Thickness (mm):
-
12 mm
-
Max. Width (mm):
-
200 mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BETE
-
Weight (KG):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
220V 50Hz
-
Output cutting force:
-
200KN/300KN
-
Output punching force:
-
300KN/350KN
-
Output bending force:
-
270KN
-
Cutting Max.:
-
200x12mm
-
Punching Max.:
-
200 x 12 mm
-
Bending Max:
-
125 x 12 .5mm
-
Throat depth of punching:
-
95/110mm
Product Description
Technical Data:
|
Model
|
MBP-301
|
MBP-401
|
|
Functions
|
Cutting, bending, punching
|
Cutting, bending(horizontal &erective), punching
|
|
Voltage
|
220V 50Hz
|
220V 50Hz
|
|
Output cutting force
|
200KN/300KN
|
200KN/300KN
|
|
Output punching force
|
300KN/350KN
|
300KN/350KN
|
|
Output bending force
|
170KN/200KN
|
270KN
|
|
Cutting Max.
|
150 x 10 mm/200x12mm
|
200x12mm
|
|
Punching Max.
|
150 x 10 mm
|
200 x 12 mm
|
|
Bending Max
|
150 x 10 mm/200x12mm
|
125 x 12 .5mm
|
|
Throat depth of punching
|
95/110mm
|
95/110mm
|
|
Punching range
|
Dia. 10.5mm, 13.8mm,
17mm, 20.5mm |
Dia. 10.5mm, 13.8mm,
17mm, 20.5mm |
|
Dimension of work table
|
690x690x730mm
|
690x690x730mm
|
|
Packing size
|
Wooden case
|
Wooden case
|

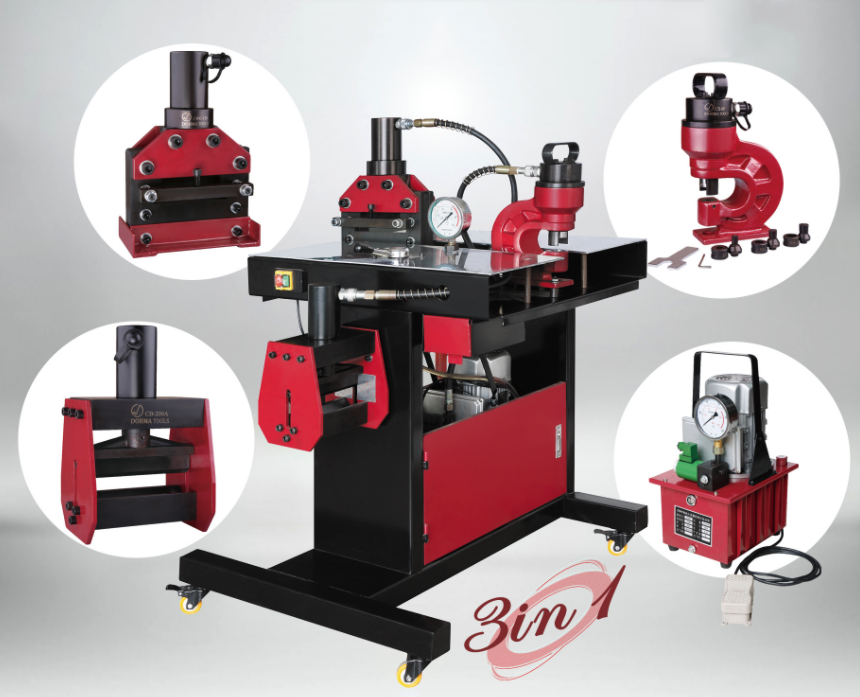

Features:
Bending capacity from 1 to 120°, use feet to control the switch
With engraved angle scale for busbar bending and pipe bending
With 2 positioning scale for punching and cutting
With smooth surfaces after punching, cutting and bending, suitable for heavy duty work
Adopt 700bar hydraulic system, low noise, durable and sturdy
Safety system keep away from danger
Easy to change dies, improve working efficiency
Bending capacity from 1 to 120°, use feet to control the switch
With engraved angle scale for busbar bending and pipe bending
With 2 positioning scale for punching and cutting
With smooth surfaces after punching, cutting and bending, suitable for heavy duty work
Adopt 700bar hydraulic system, low noise, durable and sturdy
Safety system keep away from danger
Easy to change dies, improve working efficiency
