Quick Details
-
Jacket:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
SOOW cable
-
Number of Cores:
-
Multicore Core
-
Product name:
-
SOOW Cable
-
Certificate:
-
UL,CUL
-
Standard:
-
UL62
-
Rated voltage:
-
600V
-
Rated Temperature:
-
90℃
-
Color:
-
Multi Color
-
Usage:
-
flexible cords
-
Size:
-
18AWG-2AWG
Quick Details
-
Insulation Material:
-
Rubber
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
SOOW cable
-
Number of Cores:
-
Multicore Core
-
Product name:
-
SOOW Cable
-
Certificate:
-
UL,CUL
-
Standard:
-
UL62
-
Rated voltage:
-
600V
-
Rated Temperature:
-
90℃
-
Color:
-
Multi Color
-
Usage:
-
flexible cords
-
Size:
-
18AWG-2AWG
•Use and installation
Type SOOW Flexible Cords are permitted for use by Article 400 and related articles of the National
Electrical Code. SOOW cords are designed for extra hard usage on industrial equipment, heavy tools,
battery chargers, portable lights and power extensions. They are sunlight, water, oil and weather
resistant and suitable for outdoor applications.
•
Specifications
• Conductors: Fully annealed, stranded bare copper, per ASTM B-174, sizes 18 - 2AWG
• Insulation: EPR insulated
• Jacket: CPE sheathed
• Temperature Rating: -25°C to + 90°C
• Water resistant and an oil resistant jacket
• Lightweight and Very good flexibility
• UL Flexible Cord Subject 62
• FT1 and FT2 Flame Test
• Sunlight Resistant
•cUL Listed
Option:
Temperature Rating -40°C- 105°C

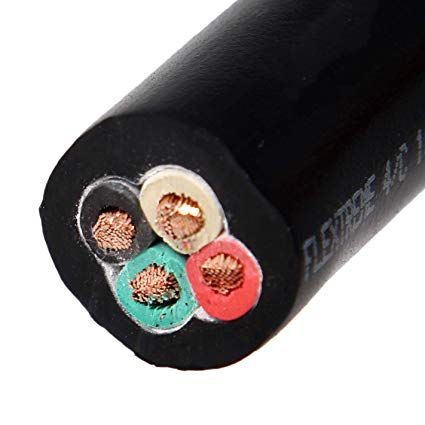

•Structure
Type SOOW Flexible Cords are manufactured using bare flexible stranded Class K copper conductors,
with a heat, moisture and oil resistant EPR rubber insulation. The insulated conductors are cabled with
wax paper fillers. A tissue-paper separator is wrapped around the assembly to promote easy removal of
the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to
complete the construction.
