Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2520x1900x2020 mm
-
Weight:
-
2300 KG
-
Application:
-
For gold, copper, tin and silver ore recovery
-
Name:
-
Gold panning, recovery, concentrating equipment
-
Feeding size:
-
< 5mm
-
Capacity:
-
40-45 ton per hour model size can be choose
-
After sale service:
-
24 hours on line
-
Certification:
-
SGS, ISO9001
-
Feeding density:
-
30-50%
-
Model:
-
STLB20/STLB30/STLB60/STLB80/STLB100
-
Advantage:
-
full automatic operation
-
Recovery rate:
-
90-99%
Quick Details
-
Production Capacity:
-
40 to 45 tons per hour
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Yongsheng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2520x1900x2020 mm
-
Weight:
-
2300 KG
-
Application:
-
For gold, copper, tin and silver ore recovery
-
Name:
-
Gold panning, recovery, concentrating equipment
-
Feeding size:
-
< 5mm
-
Capacity:
-
40-45 ton per hour model size can be choose
-
After sale service:
-
24 hours on line
-
Certification:
-
SGS, ISO9001
-
Feeding density:
-
30-50%
-
Model:
-
STLB20/STLB30/STLB60/STLB80/STLB100
-
Advantage:
-
full automatic operation
-
Recovery rate:
-
90-99%
Product Description

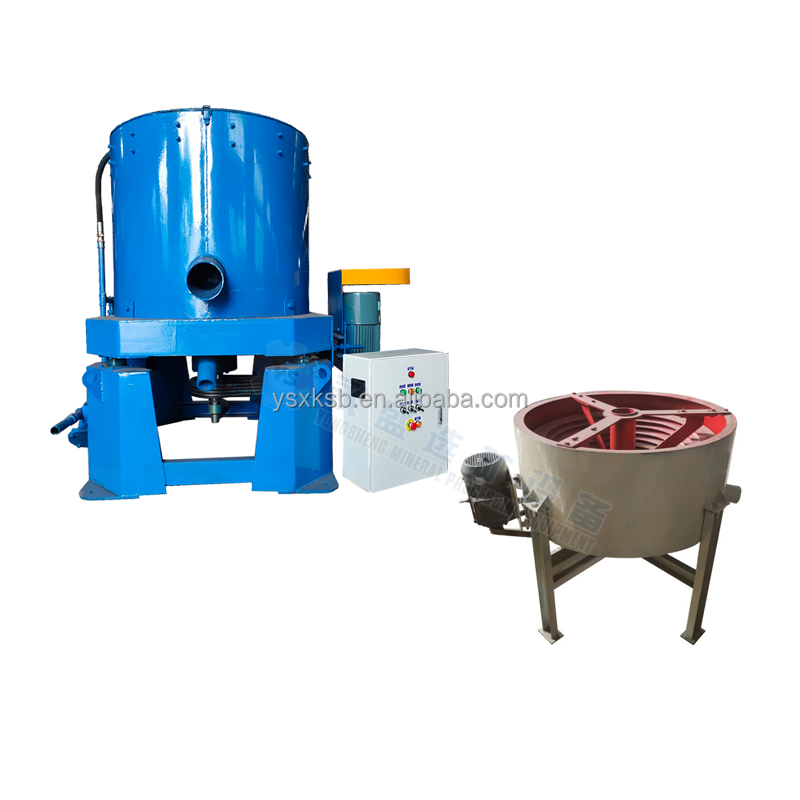

Price of lab STLB 20 30 60 80 100 centrifuge for gold extraction Carpet Centrifugal Separator machine
STLB type Alluvial and Rock Gold Centrifugal Machine is a centrifugal mining equipment which is suitable for recovery of placer gold, rock gold, lode gold and monomeric gold in multi-metal ore. It replaced amalgamating table and ideal for gold washing in rock gold recovery, dry land and river way.
The STLB Alluvial and Rock Gold Centrifugal Machine is specifically designed for recovery of free, metallic gold, platinum or silver from hard rock circuits and is also an ideal technology for alluvial gold including secondary recovery from sand and gravel operations. The STLB Concentrator subjects the material being processed to a centrifugal field of up to 60G’s which allows recovery of finer native metals than with conventional gravity concentration equipment. Periodically, the high grade concentrate is removed from the concentrate cone during the rinse cycle.
Alluvial and Rock Gold Centrifugal Machine STLB60 is an excellent alternation for medium scale gold recovery programs.
STLB type Alluvial and Rock Gold Centrifugal Machine is a centrifugal mining equipment which is suitable for recovery of placer gold, rock gold, lode gold and monomeric gold in multi metal ore.
It replaced amalgamating table and ideal for gold washing in rock gold recovery, dry land and river way. Our company manufacturing 5 different models of STLB type Alluvial and Rock Gold Centrifugal Machine. After rigorous tests and practical use, it had been proved that our machines have several excellent features as bellow:
* Automatic ore concentrating & discharging
* High recovery rate(over 99%)
* Reliable and effective gold recovery.
The Alluvial and Rock Gold Centrifugal Machine is applied in an alluvial gold mining plan. This machine can cooperate with sand wash plant, sieve machine and some other gravity mining machine. We have a profession engineer team which can provide you overall suggestions on mining procedure and technical guide.
The STLB Alluvial and Rock Gold Centrifugal Machine is specifically designed for recovery of free, metallic gold, platinum or silver from hard rock circuits and is also an ideal technology for alluvial gold including secondary recovery from sand and gravel operations. The STLB Concentrator subjects the material being processed to a centrifugal field of up to 60G’s which allows recovery of finer native metals than with conventional gravity concentration equipment. Periodically, the high grade concentrate is removed from the concentrate cone during the rinse cycle.
Alluvial and Rock Gold Centrifugal Machine STLB60 is an excellent alternation for medium scale gold recovery programs.
STLB type Alluvial and Rock Gold Centrifugal Machine is a centrifugal mining equipment which is suitable for recovery of placer gold, rock gold, lode gold and monomeric gold in multi metal ore.
It replaced amalgamating table and ideal for gold washing in rock gold recovery, dry land and river way. Our company manufacturing 5 different models of STLB type Alluvial and Rock Gold Centrifugal Machine. After rigorous tests and practical use, it had been proved that our machines have several excellent features as bellow:
* Automatic ore concentrating & discharging
* High recovery rate(over 99%)
* Reliable and effective gold recovery.
The Alluvial and Rock Gold Centrifugal Machine is applied in an alluvial gold mining plan. This machine can cooperate with sand wash plant, sieve machine and some other gravity mining machine. We have a profession engineer team which can provide you overall suggestions on mining procedure and technical guide.
Specification
|
Model
|
STLB20
|
STLB30
|
STLB60
|
STLB80
|
STLB100
|
||||
|
Feeding Capacity (T/h)
|
0-0.6
|
2-3
|
8-12
|
40-45
|
60-80
|
||||
|
Fluidization Water Required (m3/h)
|
2-3
|
3-5
|
7-10
|
30-36
|
50-60
|
||||
|
Slurry Water Required (m3/h)
|
1.5-4
|
5-7
|
8-12
|
40-45
|
60-80
|
||||
|
Feeding Density (%)
|
0-50
|
0-50
|
0-50
|
0-50
|
0-50
|
||||
|
Feeding Size (mm)
|
0-3
|
0-3
|
0-5
|
0-5
|
0-6
|
||||
|
Concentration Cleaning Up Cycle
|
Vein gold 1-3 Hours Placer gold:2-6 Hours
|
|
|
|
|
||||
|
Concentrate Weight (Kg)
|
2
|
3-5
|
10-20
|
40-50
|
70-80
|
||||
|
Power Requirements (Kw)
|
0.75
|
1.5
|
4
|
11
|
18.5
|
||||
|
Approximate Shipping Weight (Kg)
|
205
|
380
|
1100
|
2300
|
3700
|
||||
|
Approximate Crated Shipping Dimensions (mm)
|
914×700×900
|
1160×885×1165
|
1820×1450×1700
|
2476×2032×2018
|
2849×2085×2426
|
||||
